Slot mortising machine LLB 16 PB (400 V)

€1.646,97 EUR (€1.339,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5906017 Barcode: 4036351265054

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

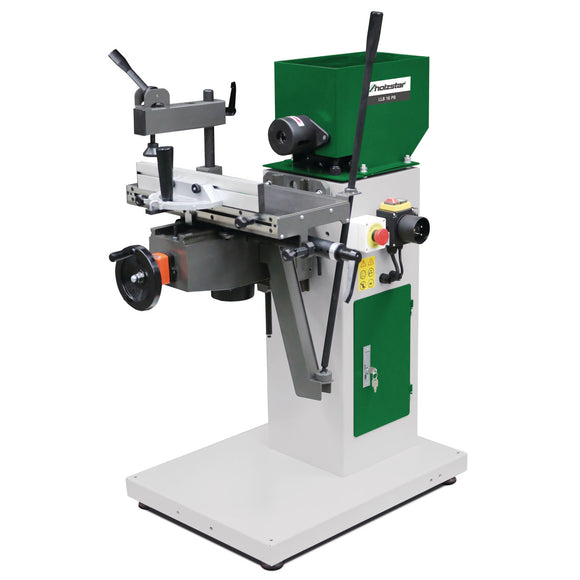

Slot mortising machine LLB 16 PB (400 V).

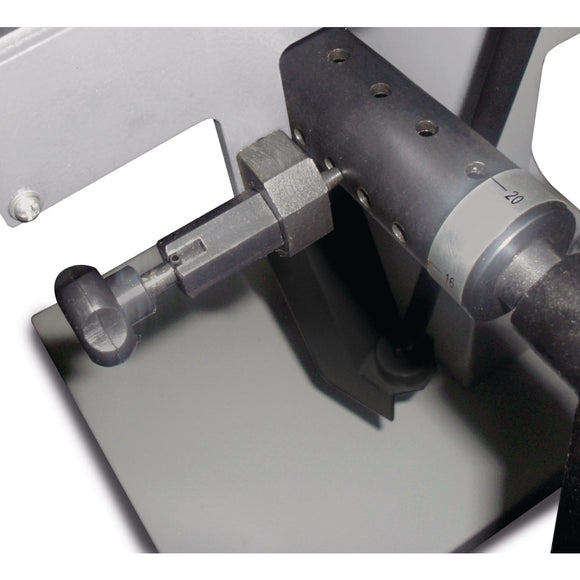

  • Serial drilling possible with dowel boring device with ratchet pitch 16/22/25/32 mm
  • Wescott drill chuck 0 -
  • Right-left rotation
  • Powerful motor
  • Simple one-hand lever operation of the workbench for fast and precise drilling.
  • Roller guide enables precise working table operation

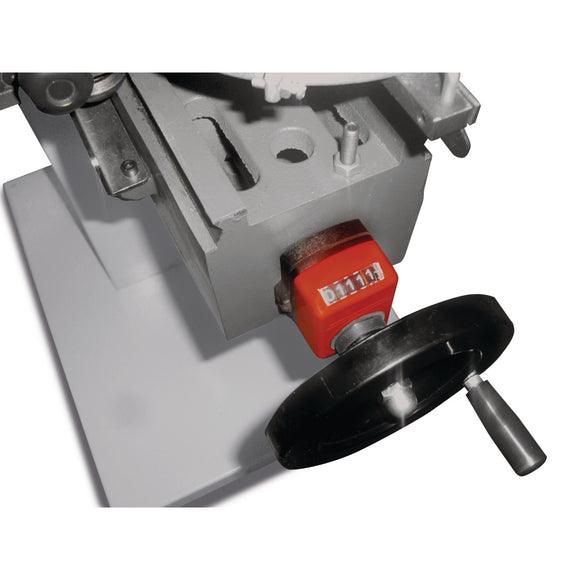

  • Convenient, exact table height adjustment with numeric display.
    • Adjusted working table height additionally readable by scale
  • An eccentric clamp for different workpiece fixation in scope of delivery

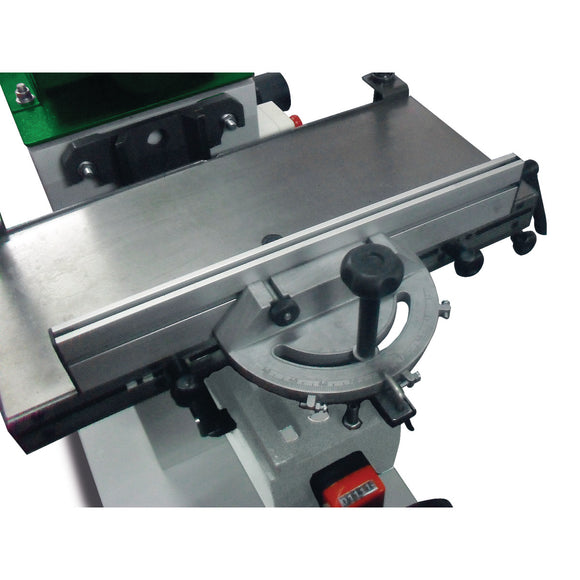

  • Angle stop adjustable on both sides by 60°
  • Underfloor equipped with large, lockable tool compartment


.
  • Drilling width 300 mm
  • Extraction port diameter 100 mm
  • Frequency 50 Hz
  • Height 1230 mm
  • Length 905 mm
  • Max. drilling depth at 90° 140 mm
  • Motor power 1,5 kW
  • Net weight 108 kg
  • Spindle speed(s) 2850 min¯¹
  • Supply voltage 400 V
  • Tool clamping diameter 0 – 16 mm
  • Width 710 mm
  • Work table height adjustment 150 mm
  • Work table length 500 mm
  • Work table width 207 mm
  • Eccentric clamp
  • Angle stop ± 60° with ruler
