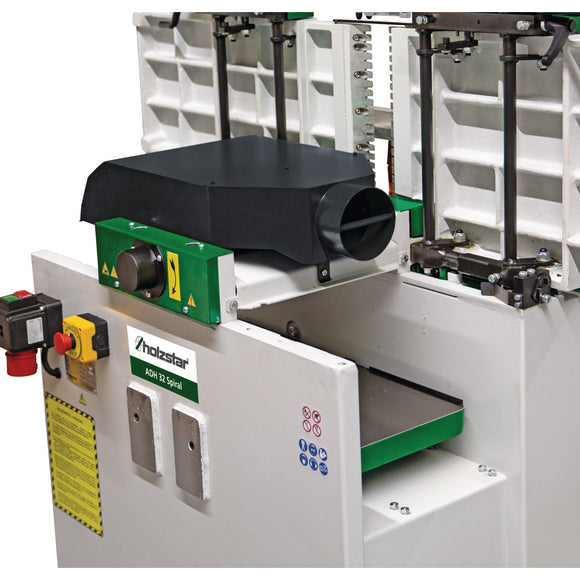

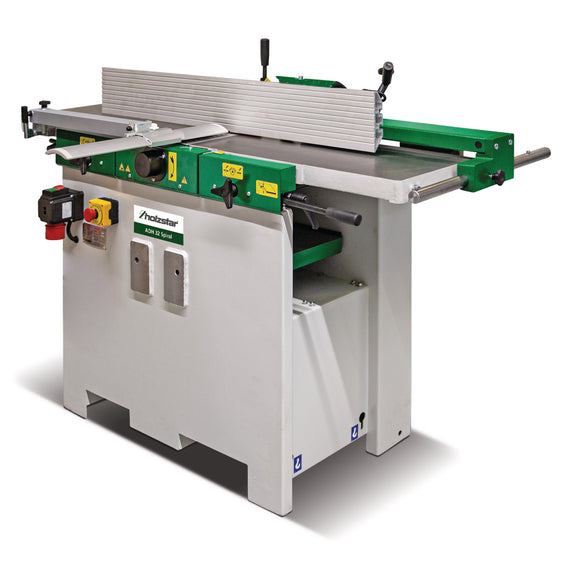

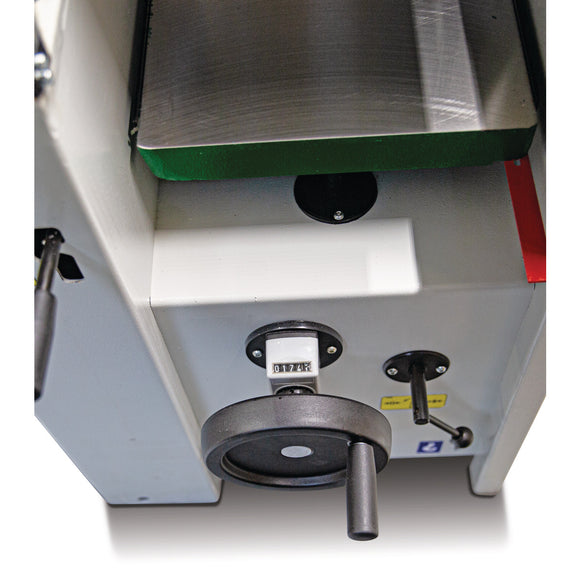

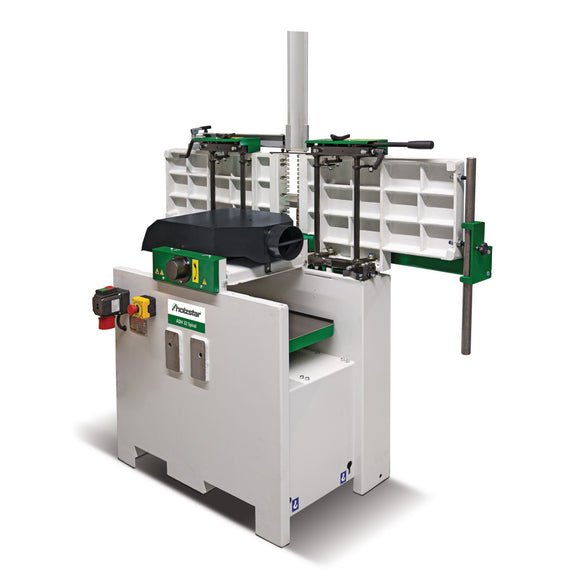

Surface and thickness planer ADH 32 SPIRAL

• Extraction port diameter thickness 120 mm
• Feed speed 8 m/min
• Frequency 50 Hz
• Height 1000 mm
• Infeed table length 1500 mm
• Infeed table width 320 mm
• Length 1500 mm
• Max. cutting depth of joints 5 mm
• Max. cutting depth thickness 5 mm
• Max. planing width 320 mm
• Motor power 4,0 kW
• Net weight 360 kg
• Number of knives spiral cutter 51 Pcs.
• Number of planing blades 3 St
• Planing shaft diameter 100 mm
• Planing shaft speed 4600 min¯¹
• Planing stop pivoting range 90 – 45 °
• Supply voltage 400 V
• Thicknessing table length 700 mm
• Thicknessing table width 316 mm
• Width 650 mm
• Working height 850 mm
• Working height max. thickness 225 mm
• Working height min. thickness 4 mm
• Working length min. thickness 300 mm

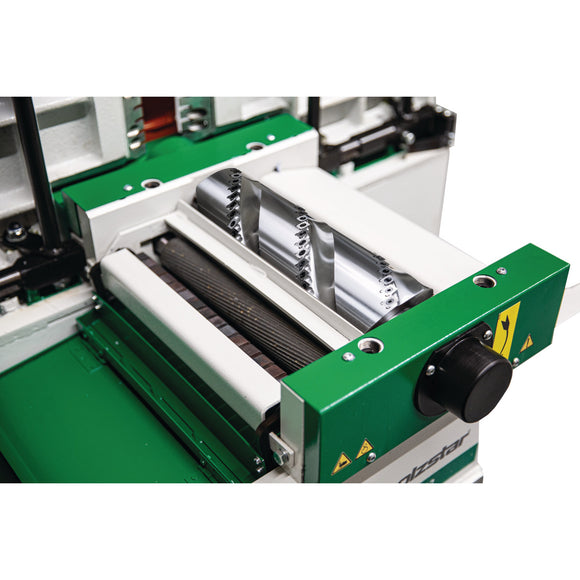

• Spiral cutter head mounted

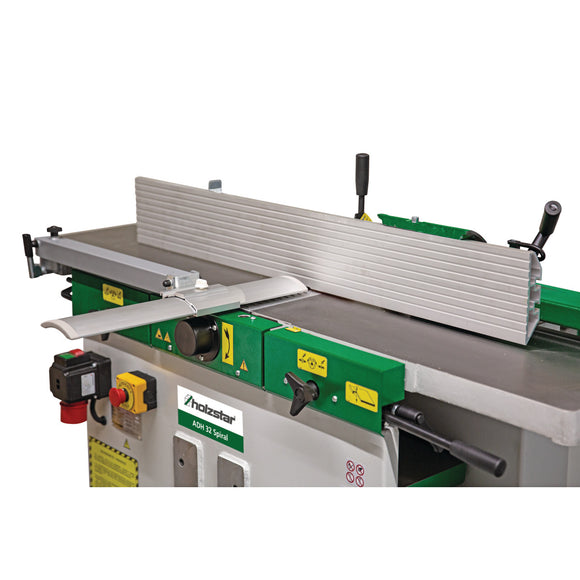

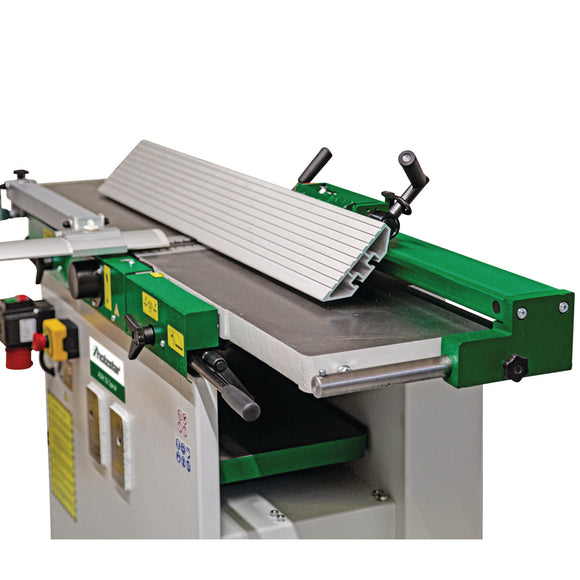

• Professional side dresser stop
