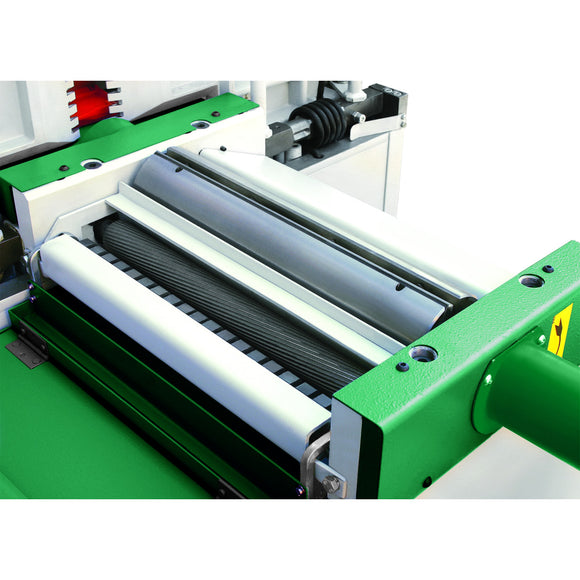

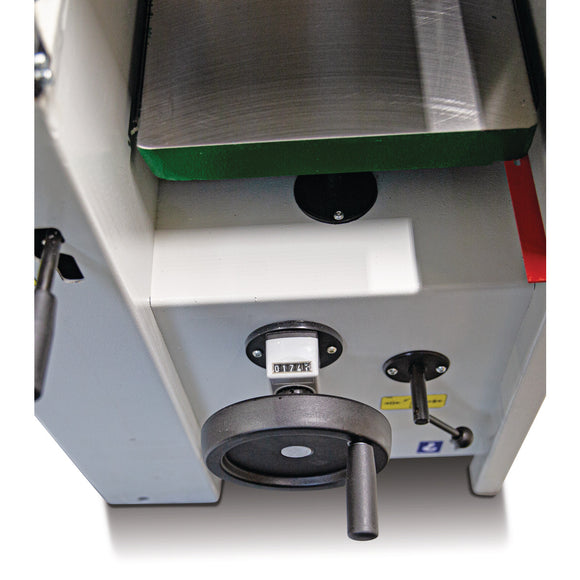

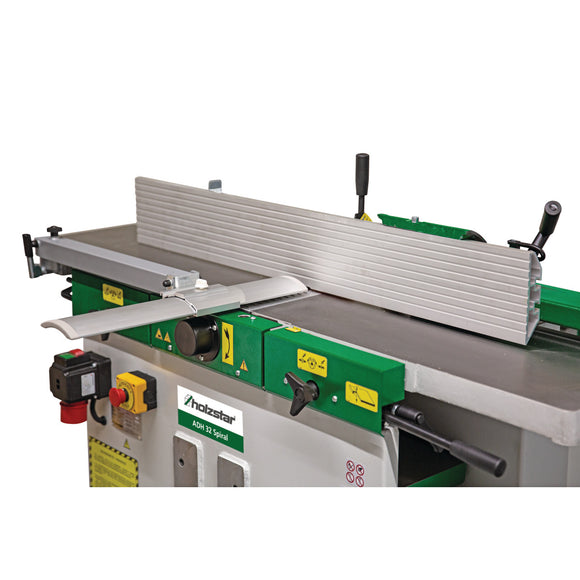

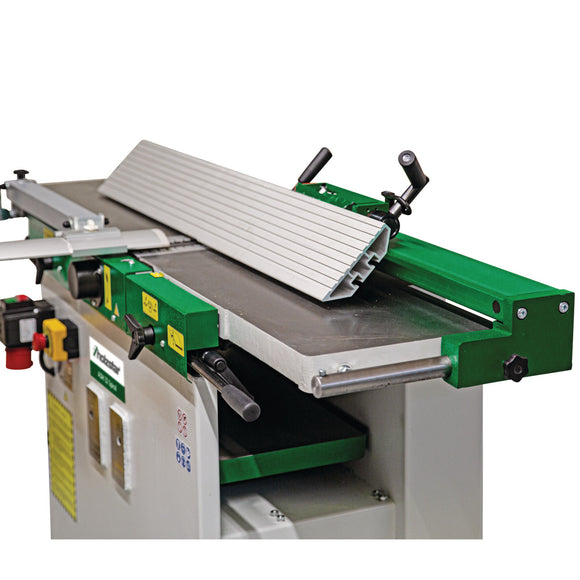

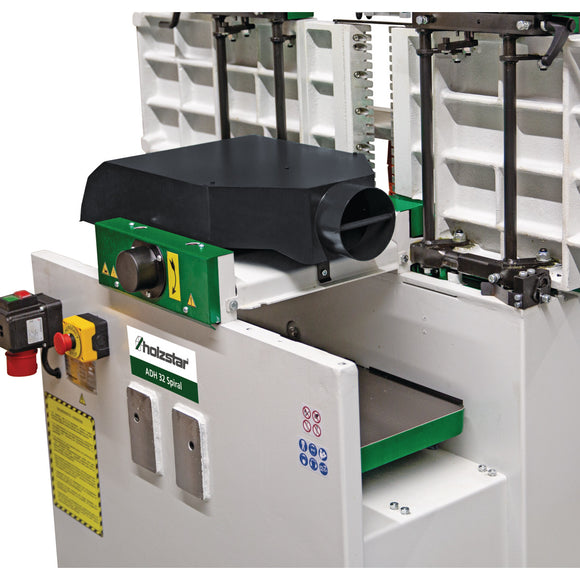

Surface and thickness planer ADH 41

• Absorbed motor power 5.5 kW
• Extraction port diameter thickness 120 mm
• Feed speed 8 m/min
• Frequency 50 Hz
• Height 1000 mm
• Infeed table width 410 mm
• Length 1800 mm
• Max. cutting depth of joints 5 mm
• Max. cutting depth thickness 5 mm
• Max. planing width 410 mm
• Net weight 420 kg
• Number of planing blades 4 St
• Planing shaft diameter 100 mm
• Planing shaft speed 4600 min¯¹
• Planing stop pivoting range 90 – 45 °
• Supply voltage 400 V
• Thicknessing table length 700 mm
• Thicknessing table width 406 mm
• Total length of table 1800 mm
• Width 740 mm
• Working height 850 mm
• Working height max. thickness 225 mm
• Working height min. thickness 4 mm
• Working length min. thickness 300 mm

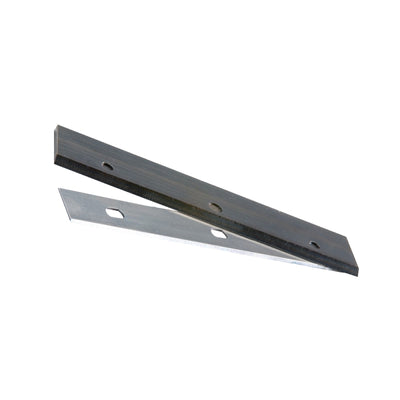

• Turning planer knife mounted
• Professional side dresser stop
