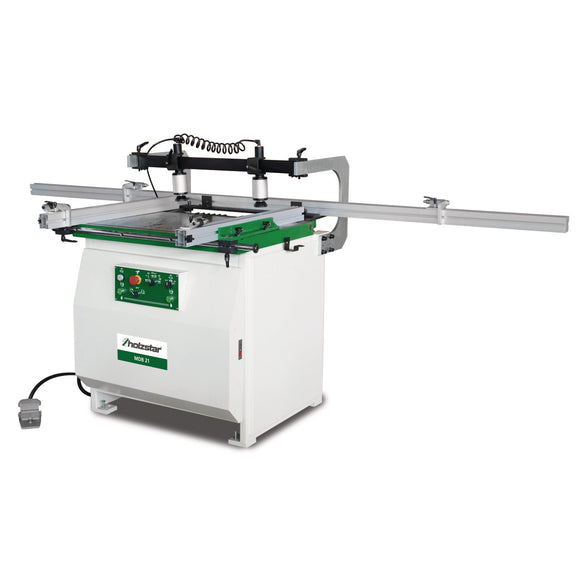

Multi dowel drilling machine MDB 21

• Distance between spindles 32 mm
• Drilling depth max. at 90° 50 mm
• Drive motor input 1.5 kW
• Frequency 50 Hz
• Height 1300 mm
• Length 3000 mm
• Max. drilling width 640 mm
• Max. height of workpiece 70 mm
• Motor power 1.1 kW
• Net weight 360 kg
• Nominal operating mode drive motor S1
• Number of spindles 21
• Sound pressure level 98.5 dB(A)
• Spindle distance first to last 640 mm
• Spindle speed(s) 2800 min¯¹
• Supply voltage 400 V
• Swivel of drill unit 0 – 90 °
• Width 1300 mm
• Work table length 890 mm
• Work table width 625 mm
• Working pressure 6 – 8 bar

• Six quick-action chucks for shank diameter 10 mm
• Two rip fences with one flip stop each
• 3m aluminium stop with 2 flip stops
