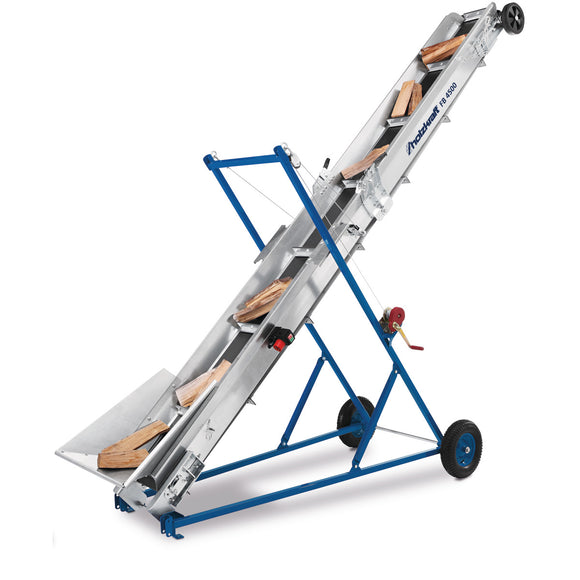

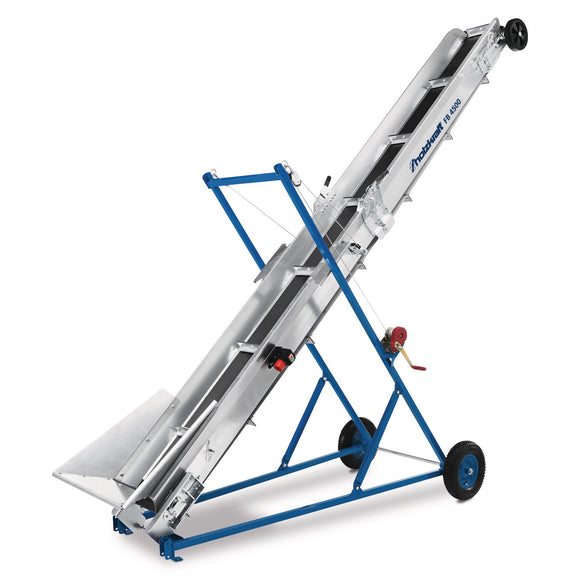

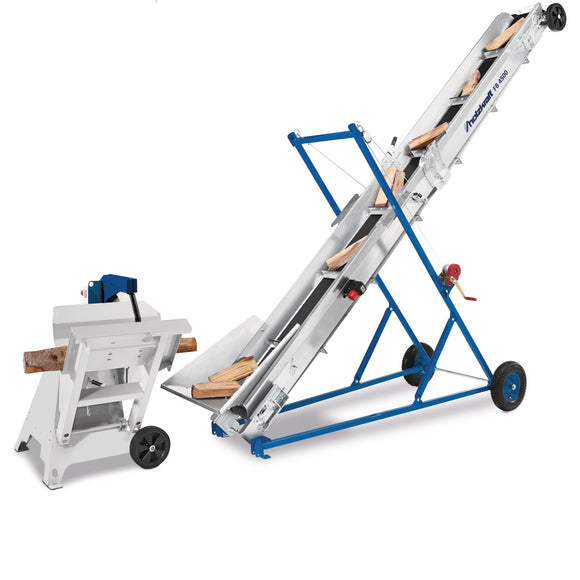

Conveyor belt FB 4500

• Absorbed motor power 1.10 kW
• Belt speed 0.8 m/s
• Conveying height at 45° 3400 mm
• Conveying height at 5° 700 mm
• Conveying length 4500 mm
• Conveyor belt width 250 mm
• Delivery power 0.80 kW
• Duty type drive motor S1

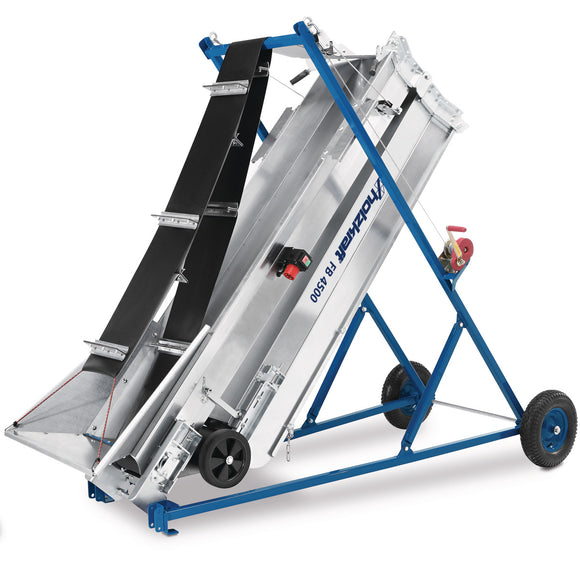

• Explanation about Dimensions at transport / storage position
• Frequency 50 Hz
• Height 2130 mm
• Length 2770 mm
• Motor speed 1400 min¯¹
• Net weight 245 kg
• Overall height working position 45° 3500 mm
• Overall height working position 5° 2130 mm
• Overall length working position 45° 3700 mm
• Overall length working position 5° 4800 mm
• Overall width 1100 mm
• Supply voltage 400 V
• Tilt adjustment (manual winch) 5 – 45 °
• Width 1100 mm
