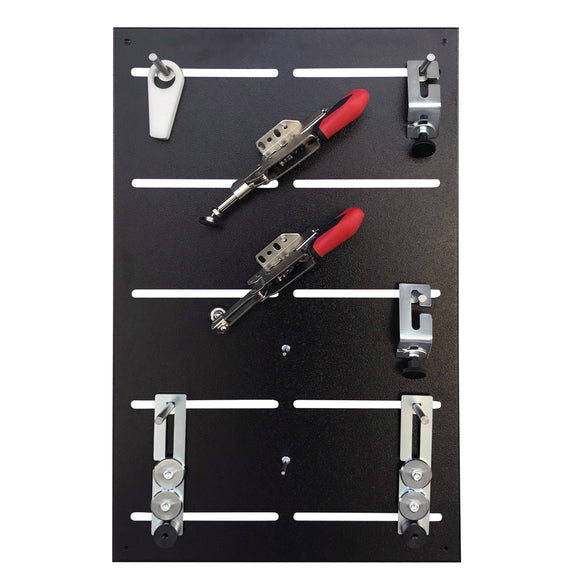

Clamping system For hole grid Ø 20 mm Set 1

• Adapter plate diameter 140 mm
• Clamp fixation Perforated grid Ø20 mm
• Clamp holding force 3,0 kN
• Clamp length 244 / 253 mm
• Clamp pressure direction vertical / horizontal
• Clamping bolt diameter 20 mm
• Height 700 mm
• Height compensation max. 40 / 0 mm
• Length 450 mm
• Net weight 8.5 kg
• Stroke compensation automatic 35 / 13 mm
• Stroke compensation max. 0 / 35 mm

• 1 sheet steel filing panel, powder-coated 700 x 450 mm with locating pins
• 1 horizontal clamp with clamping bolt
• 1 vertical clamp with clamping bolt
• 4 clamping bolts ø20 mm with washer
• 2 plates open 180 x 40 with thread
• 2 swivel bearings with grub screw for eccentric clamp
• 2 eccentric clamps plastic
• 2 angles open 80 x 40 x 60
• 2 stop screws
