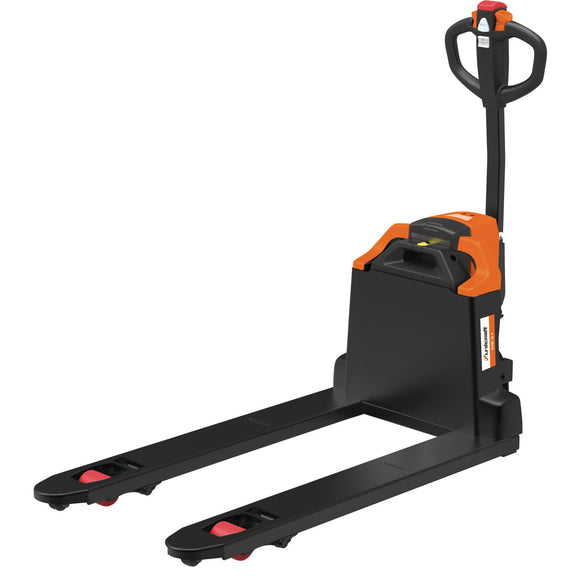

Electric pallet truck EHW 15 E.
  • Very maneuverable and low overall weight, also suitable for use in confined spaces, on the tail lift or as a truck-mounted device
  • Stepless, convenient control of the travel speed via rocker switch
  • Low-speed function enables slow maneuvering with vertical tiller - perfect for confined spaces!
  • Ergonomic tiller head for high operating comfort
  • Powerful and maintenance-free lithium-ion battery
  • High availability thanks to a very short charging time of just two and a half to three hours and the option of intermediate charging during breaks or downtimes
  • Integrated battery management system ensures long-term maintenance and safety during the charging process
  • Battery discharge indicator on the drawbar

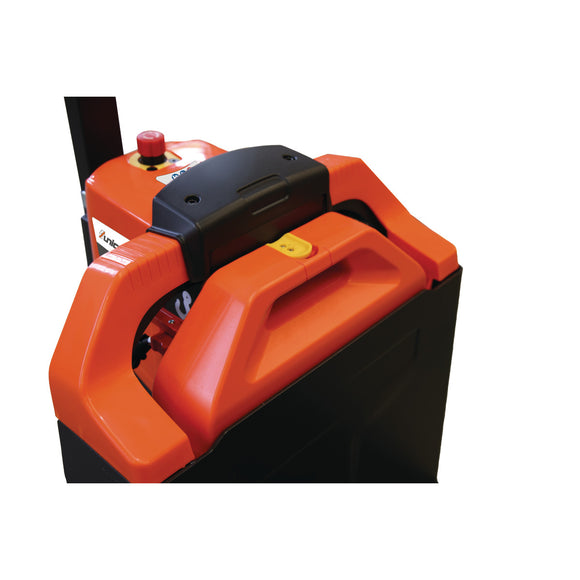

  • Battery is easy to remove and insert
  • CAN bus interface and Curtis maintenance control for quick and easy diagnostics (external diagnostic software required)


.
  • Battery capacity 20 Ah
  • Battery life 3 – 4 h
  • Battery voltage 24 V
  • Battery weight 5.8 kg
  • Fork length 1150 mm
  • Fork roller diameter 80 mm
  • Fork roller width 70 mm
  • Fork width 160 mm
  • Height 1125 mm
  • Lateral support rollers ✔
  • Length 1538 mm
  • Lifting motor output 0.5 kW
  • Lifting range 80 – 195 mm
  • Lifting speed 0.015 m/s
  • Load capacity 1.5 t
  • Load-bearing width 540 mm
  • Low-speed function ✔
  • Lowering speed 0.05 m/s
  • Max. grade ability loaded 6 %
  • Max. grade ability unloaded 16 %
  • Net weight 136 kg
  • Power drive motor 0.75 kW
  • Sound pressure level 70 dB(A)
  • Steering rollers diameter 210 mm
  • Steering rollers width 75 mm
  • Travel speed 4.9 km/h
  • Turning radius 1340 mm
  • Width 540 mm
  • 8 A charger
  • Li-ion battery 24 V / 20 Ah
