Electric pallet truck EHW 12

€2.372,67 EUR (€1.929,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 6160112 Barcode: 4036351284062

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

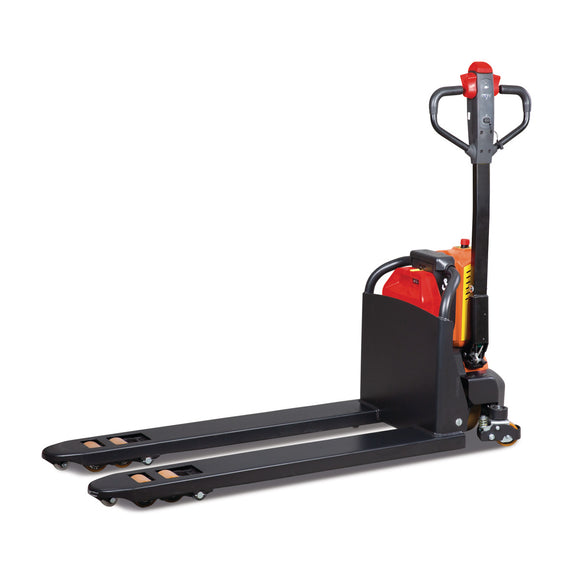

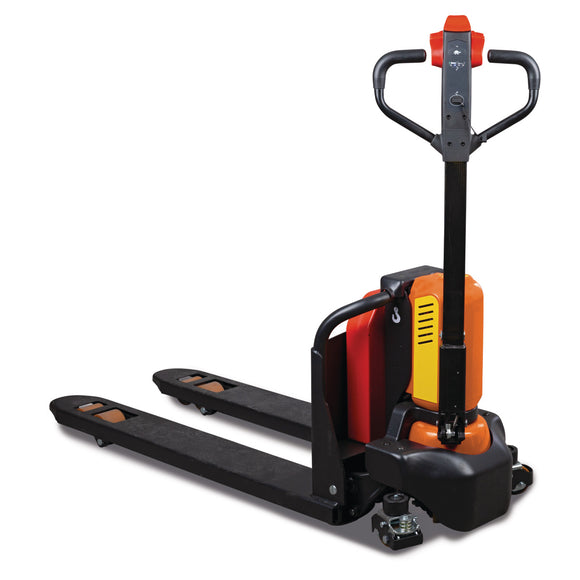

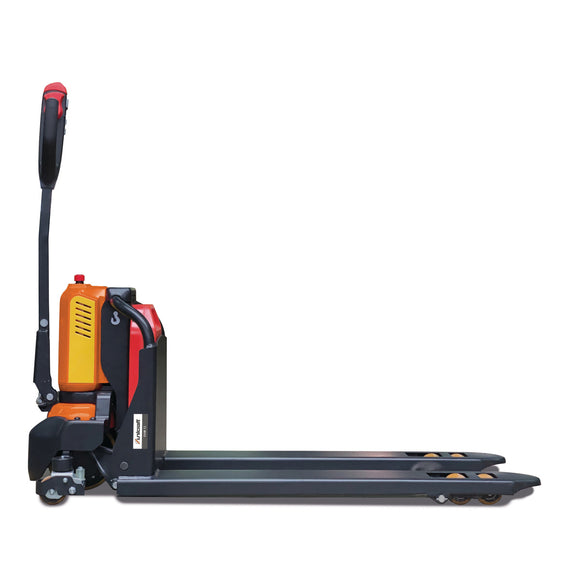

Electric pallet truck EHW 12.

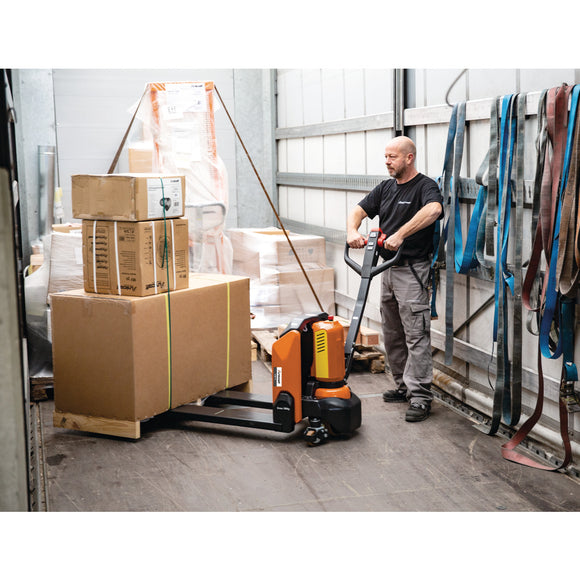

  • Very manoeuvrable and low overall weight, also suitable for use in confined spaces, on the lifting platform or as a take-away device on trucks
  • Stepless, comfortable control of the driving speed via rocker button
  • Low-speed function allows slow manoeuvring with vertical drawbar – perfect in confined spaces!

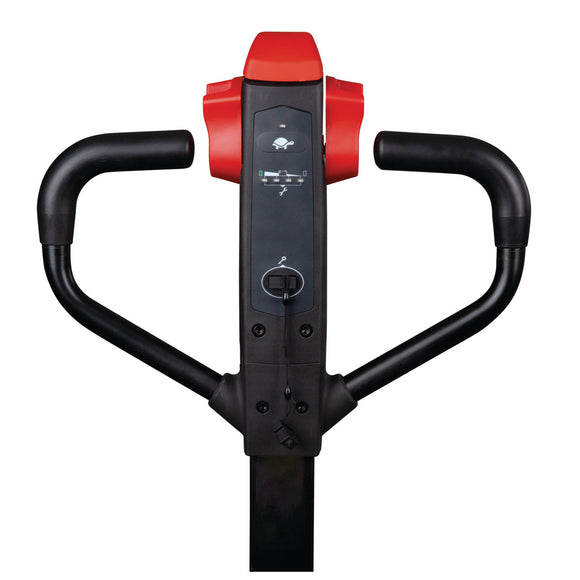

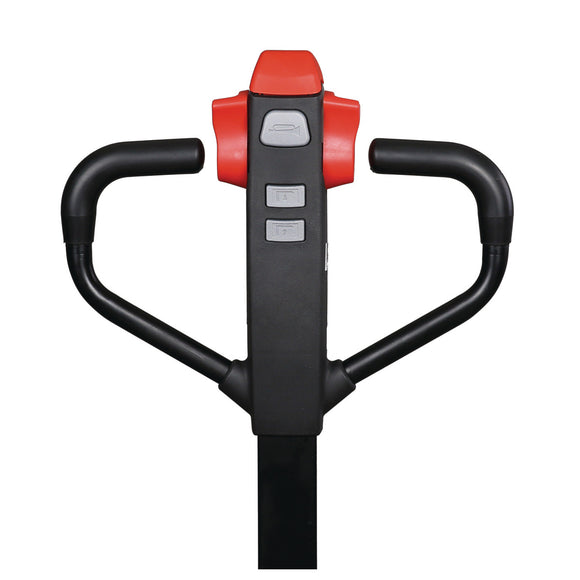

  • Ergonomic drawbar head for high operating comfort

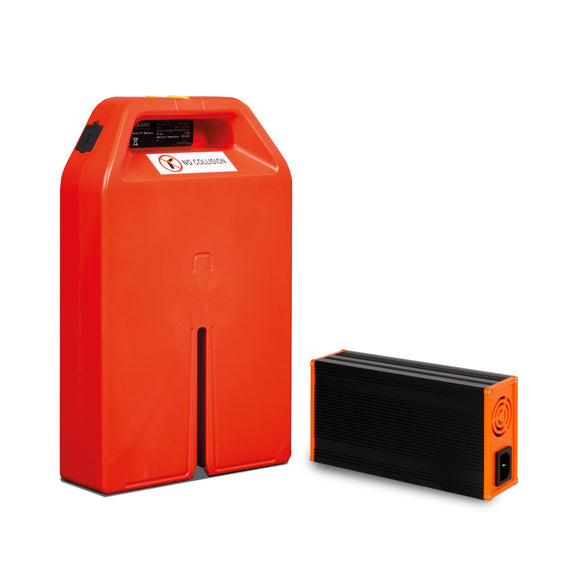

  • Powerful and maintenance-free lithium-ion battery
  • High availability thanks to very short charging time of only two and a half to three hours and possibility of intermediate charging during breaks or during downtimes
  • Integrated battery management system ensures long-term maintenance and safety during charging
  • Battery discharge indicator on the drawbar
  • Battery easy to remove and use
  • CAN-Bus interface and Curtis maintenance control for easy and fast diagnostics (external diagnostic software required)


.
  • Battery capacity 20 Ah
  • Battery life 3 – 4 h
  • Battery voltage 24 V
  • Battery weight 4.4 kg
  • Fork length 1150 mm
  • Fork roller diameter 80 mm
  • Fork roller width 93 mm
  • Fork width 160 mm
  • Height 1160 mm
  • Hour meter ✔
  • Length 1537 mm
  • Lifting motor output 0.5 kW
  • Lifting range 80 – 195 mm
  • Lifting speed 0.031 m/s
  • Load capacity 1.2 t
  • Load-bearing width 540 mm
  • Low-speed function ✔
  • Lowering speed 0.069 m/s
  • Max. grade ability loaded 4 %
  • Max. grade ability unloaded 16 %
  • Net weight 124 kg
  • Power drive motor 0.65 kW
  • Sound pressure level 70 dB(A)
  • Steering rollers diameter 210 mm
  • Steering rollers width 70 mm
  • Travel speed 4.6 km/h
  • Turning radius 1337 mm
  • Width 540 mm
