Electric pallet truck EHW 20-1
Electric pallet truck EHW 20-2
Electric pallet truck EHW 20-3
Electric pallet truck EHW 20-4
Electric pallet truck EHW 20-5
Electric pallet truck EHW 20-6
Electric pallet truck EHW 20-7
Electric pallet truck EHW 20-8

Electric pallet truck EHW 20

€3.688,77 EUR (€2.999,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 6160120 Barcode: 4036351284086

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

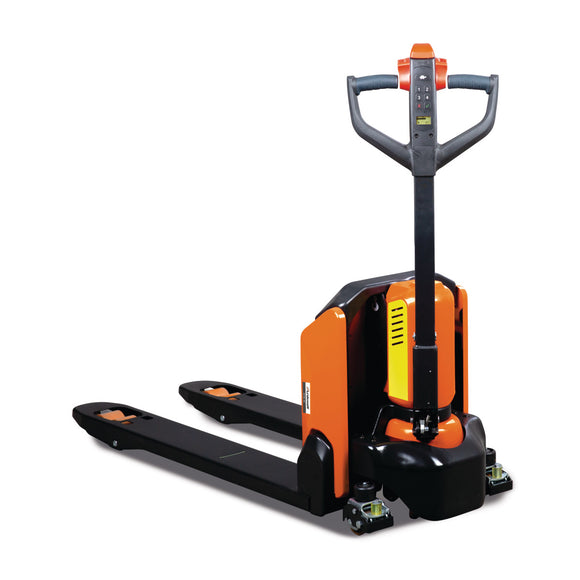

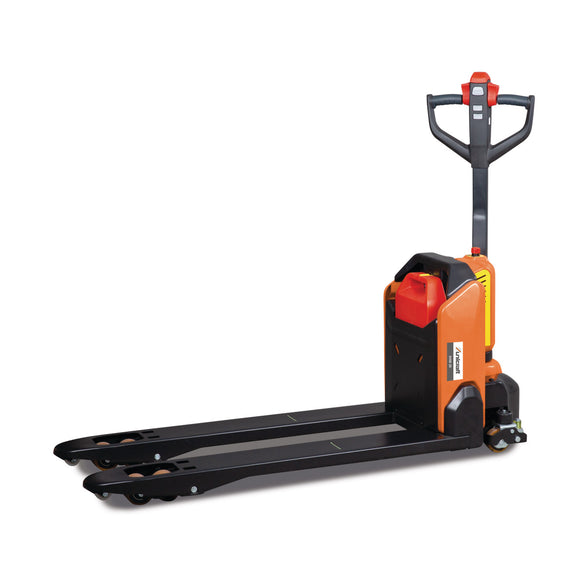

Electric pallet truck EHW 20.

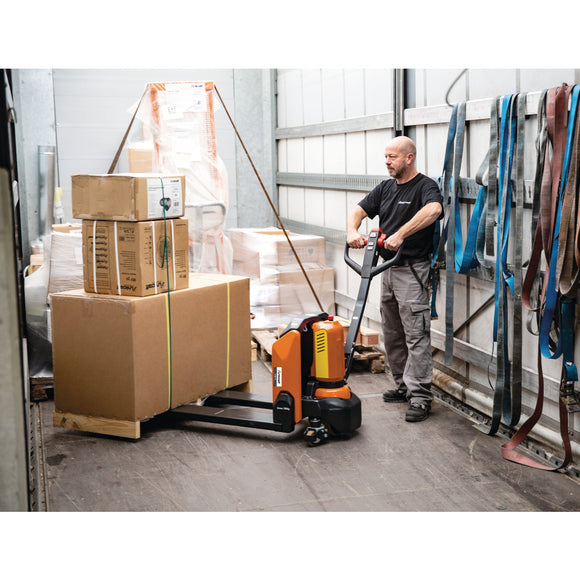

  • Very manoeuvrable and low overall weight, also suitable for use in confined spaces, on the lifting platform or as a take-away device on trucks
  • Stepless, comfortable control of the driving speed via rocker button
  • Low-speed function allows slow manoeuvring with vertical drawbar – perfect in confined spaces!
  • EHW 20: Easy, safe manoeuvring in tight corners due to automatic speed reduction of 50% in case of strong drawbar impact

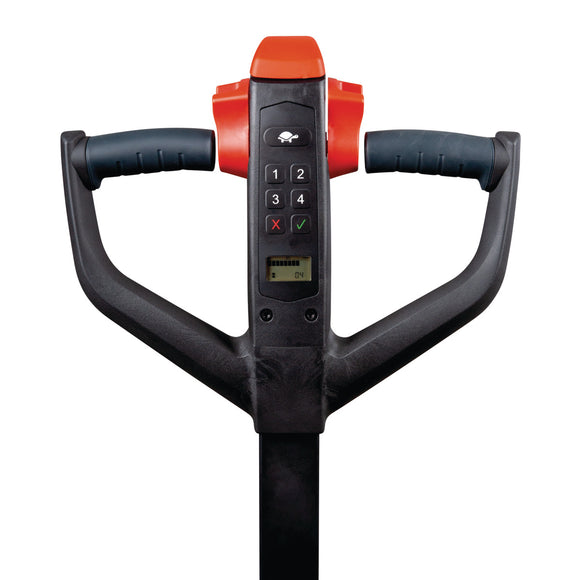

  • Ergonomic drawbar head for high operating comfort

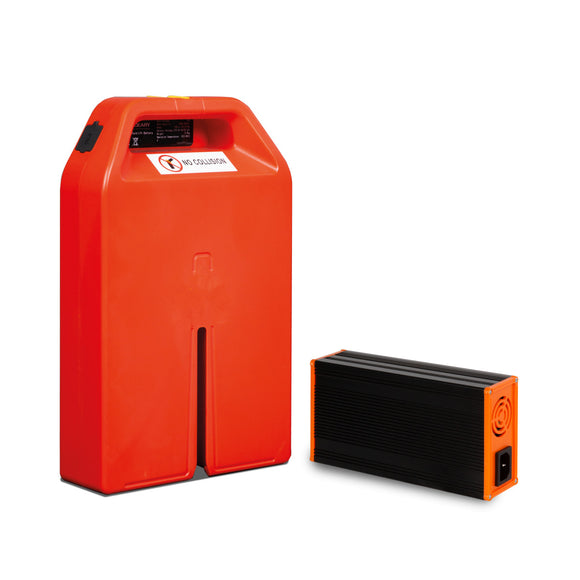

  • Powerful and maintenance-free lithium-ion battery
  • High availability thanks to very short charging time of only two and a half to three hours and possibility of intermediate charging during breaks or during downtimes
  • Integrated battery management system ensures long-term maintenance and safety during charging
  • Battery discharge indicator on the drawbar
  • Battery easy to remove and use
  • CAN-Bus interface and Curtis maintenance control for easy and fast diagnostics (external diagnostic software required)


.
  • Battery capacity 20 Ah
  • Battery life 3 – 4 h
  • Battery voltage 48 V
  • Battery weight 7.5 kg
  • Fork length 1150 mm
  • Fork roller diameter 80 mm
  • Fork roller width 93 mm
  • Fork width 160 mm
  • Height 1160 mm
  • Hour meter ✔
  • Lateral support rollers ✔
  • Length 1536 mm
  • Lifting motor output 0.8 kW
  • Lifting range 80 – 195 mm
  • Lifting speed 0.017 m/s
  • Load capacity 2 t
  • Load-bearing width 540 mm
  • Low-speed function ✔
  • Lowering speed 0.05 m/s
  • Max. grade ability loaded 7 %
  • Max. grade ability unloaded 16 %
  • Net weight 149 kg
  • Power drive motor 0.75 kW
  • Sound pressure level 70 dB(A)

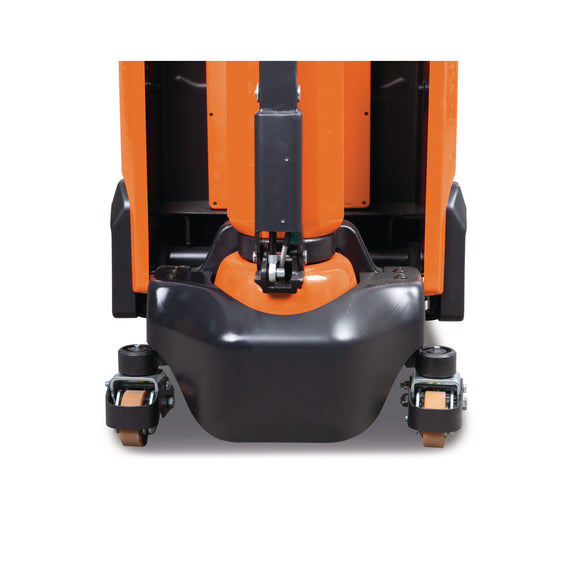

  • Steering rollers diameter 210 mm
  • Steering rollers width 70 mm
  • Travel speed 4.8 km/h
  • Turning radius 1336 mm
  • Width 540 mm
Side support rollers included

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
