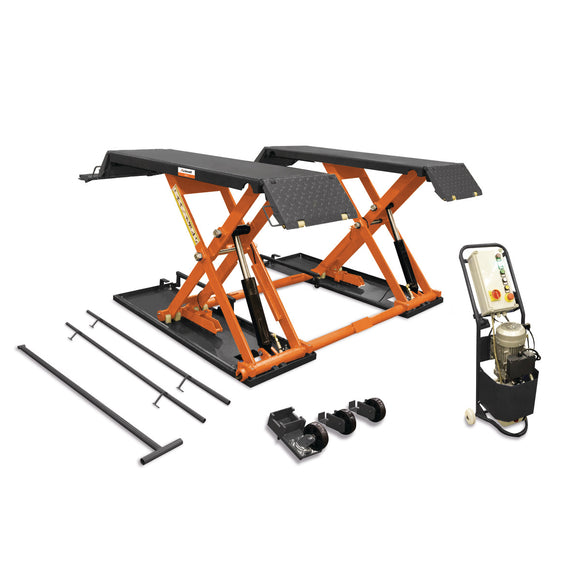

Hydraulic scissor lift SHB 3.
  • Two powerful hydraulic cylinders lift up to three tons of load

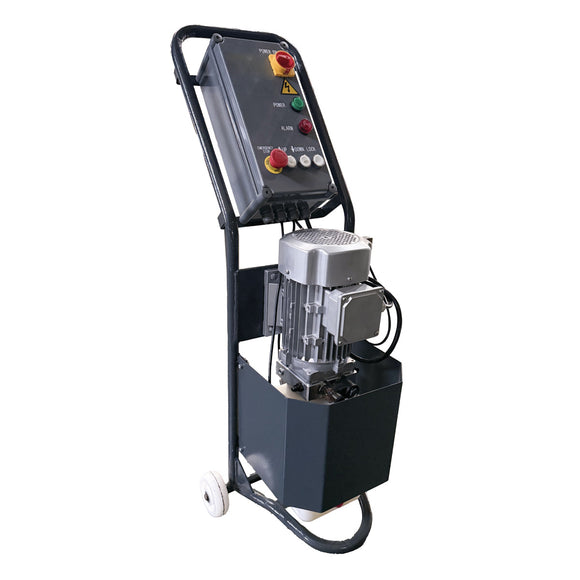

  • Operation via mobile control panel
  • Low platform with low passage height
  • Drive-up flaps anti-slip, corrugated and lockable
  • Rubber pads as anti-slip protection
  • Automatic locks secure the lifting platform at several operating heights
  • Foot trap protection on both sides for easy access to the platformr additional safety
  • .
  • Frequency 50 Hz
  • Height 125 mm
  • Input power 2.2 kW
  • Length 1943 mm
  • Lifting speed loaded 33 mm/s
  • Lifting time height min. to max. 30 s
  • Lifting time platform height min. to max. 30 s
  • Load capacity 3 t
  • Load lifting speed 33 mm/s
  • Max. height 1000 mm
  • Max. platform height 1000 mm
  • Min. height 110 mm
  • Min. platform height 110 mm
  • Motor power 2,2 kW
  • Net weight 470 kg
  • Platform length 1420 mm
  • Platform width 460 mm
  • Pneumatic operating pressure 8 bar
  • Ramp length 261 mm
  • Ramp width 460 mm
  • Supply voltage 400 V
  • Width 1954 mm

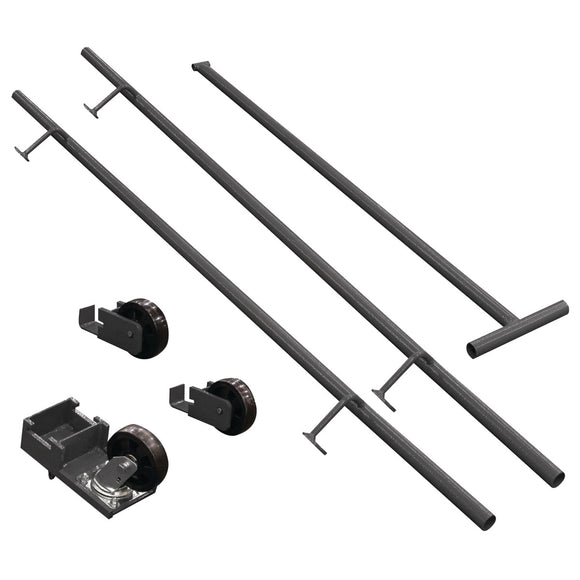

  • Transport roller set
  • Transport lever rod
  • Two foot protection rods
  • Rubber pads
