Centrifugal fan RV 230

€281,67 EUR (€229,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 6264230 Barcode: 4036351295280

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

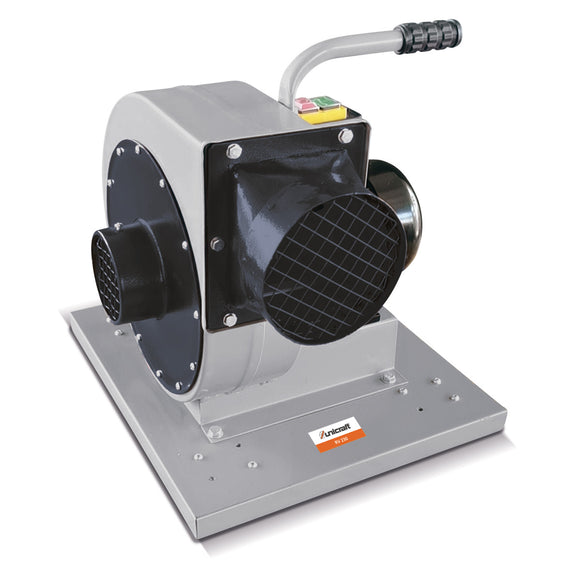

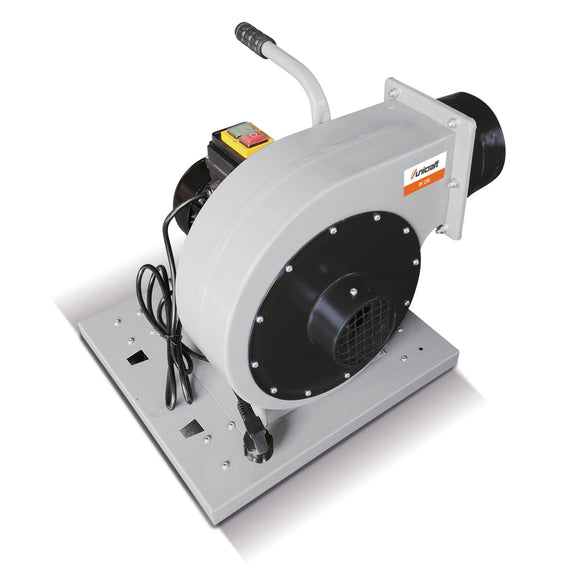

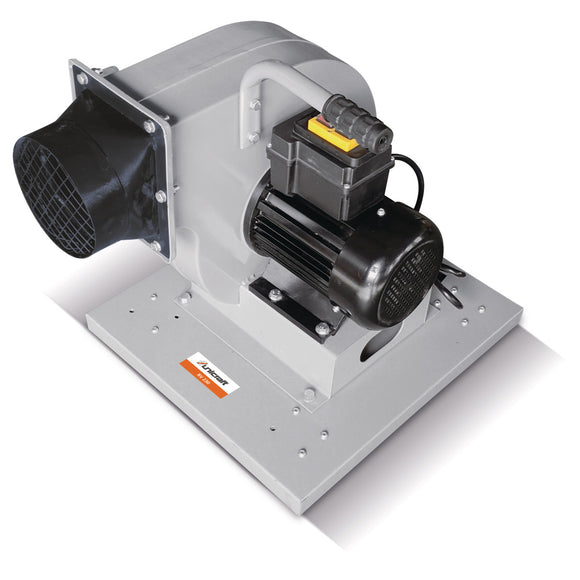

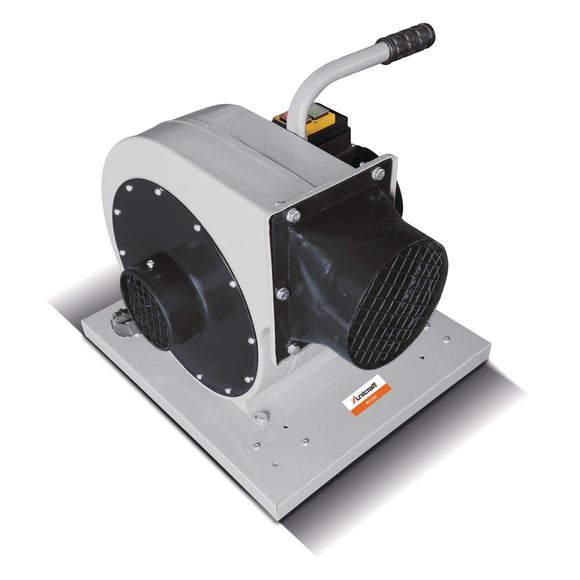

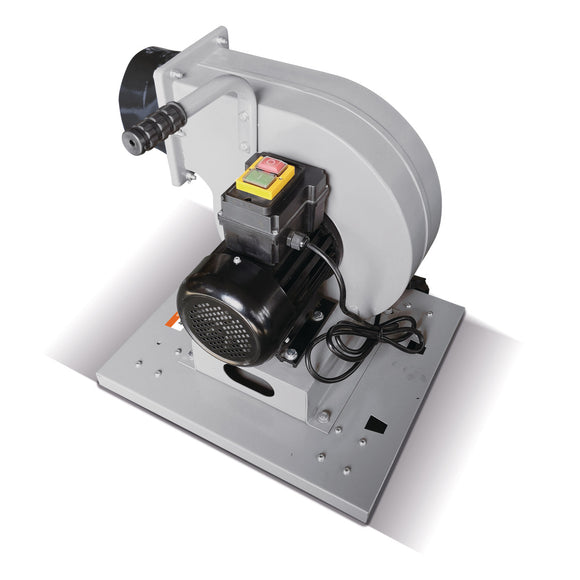

Centrifugal fan RV 230.
  • For extracting chips, smoke, gases, grains, wood and plastic particles and the like
  • Curved fan wheels ensure energy-saving and quiet operation
  • High efficiency due to optimized design


.
  • Absorbed motor power 0.75 kW
  • Air speed 32 m/s
  • Delivery power 0.55 kW
  • Diameter intake 100 mm
  • Duty type drive motor S1
  • Engine efficiency 73 %
  • Frequency 50 Hz
  • Height 421 mm
  • Impeller diameter 230 mm
  • Length 475 mm
  • Max. air flow 888 m³/h
  • Motor speed 2850 min¯¹
  • Net weight 15 kg
  • Noise level 80 dB(A)
  • Outlet dimensions 125 mm
  • Protection class drive motor IP54
  • Supply voltage 230 V
  • Total current draw 3.3 A
  • Width 393 mm
