Electro-hydraulic workshop press WPP 50 HMC.
  • Electro-hydraulic press with a pressing force of up to 50 t
  • Sturdy welded construction

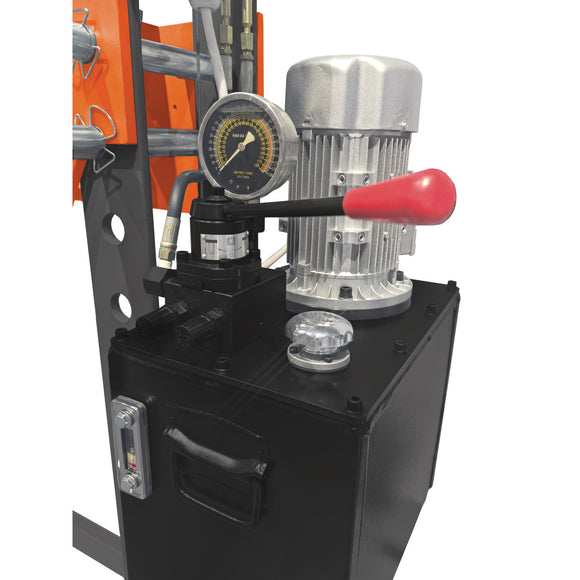

  • Pressing pressure can be read via pressure gauge

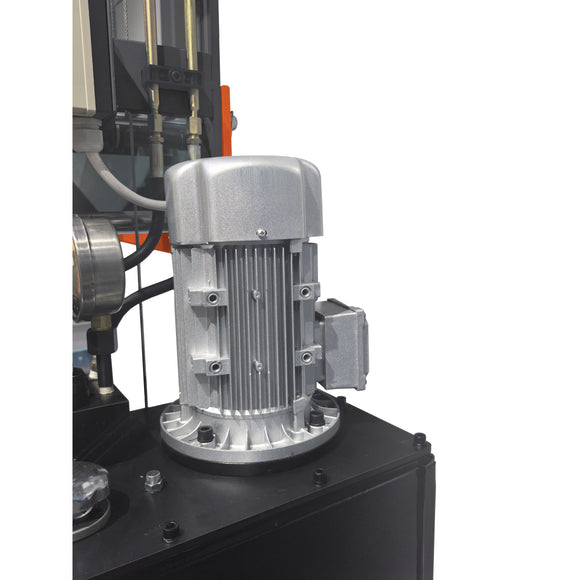

  • Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

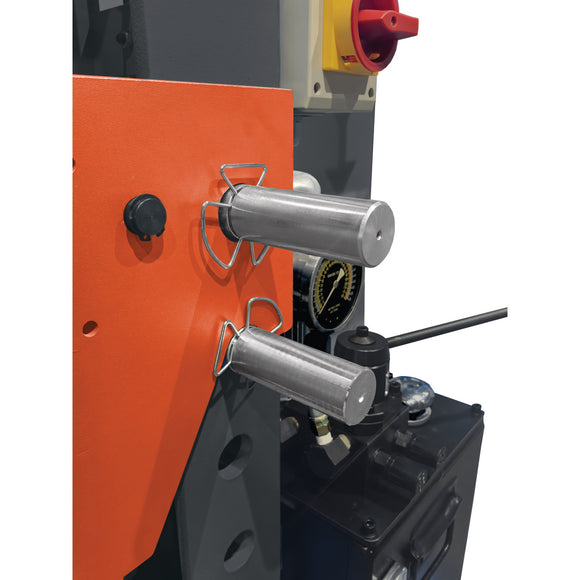

  • Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
  • For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more


.
  • Clear height max. 1059 mm
  • Clear height min. 79 mm
  • Clear width 730 mm
  • Diameter piston rod 75 mm
  • Frame depth 207 mm
  • Frequency 50 Hz
  • Height 1835 mm
  • Hole spacing for table height adjustment 140 mm
  • Hydraulic oil tank capacity 20 l
  • Length 1030 mm
  • Motor power 1,5 kW
  • Motor speed 1400 min¯¹
  • Net weight 297 kg
  • Piston stroke 200 mm
  • Piston travel 245 mm
  • Press speed 9 mm/s
  • Pressure force 50 t
  • Supply voltage 400 V
  • Width 800 mm
  • Width/depth of machine feet 800 mm
  • Two prism blocks for inserting round material
  • Supplied without hydraulic oil
