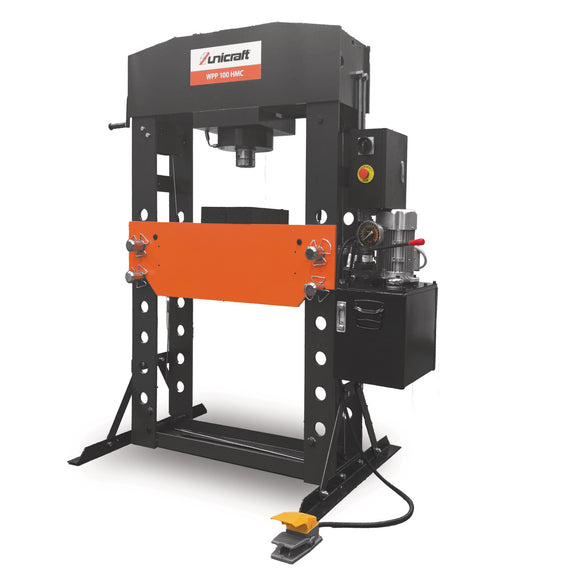

Electro-hydraulic workshop press WPP 100 HMC.
  • Electro-hydraulic press with a pressing force of up to 100 t
  • Sturdy welded construction
  • Pressing pressure can be read via pressure gauge

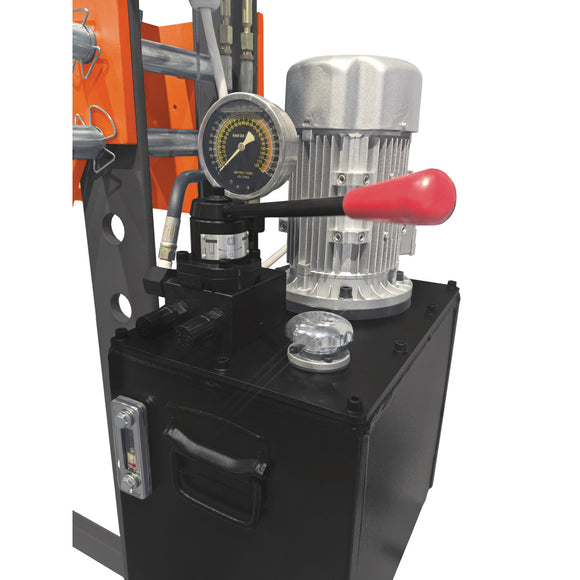

  • Faster pressing processes than standard hydraulic presses thanks to integrated electric motor

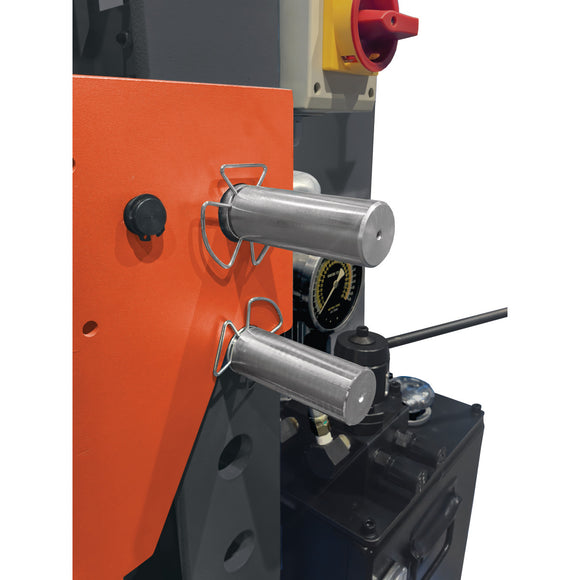

  • Quick and safe table height adjustment thanks to hand crank with cable pull and bolt safety device
  • For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, pressing work, load tests, weld sample tests and much more


.
  • Clear height max. 813 mm
  • Clear height min. 113 mm
  • Clear width 787 mm
  • Diameter piston rod 96 mm
  • Frame depth 268 mm
  • Frequency 50 Hz
  • Height 1865 mm
  • Hole spacing for table height adjustment 140 mm
  • Hydraulic oil tank capacity 24 l
  • Length 1199 mm

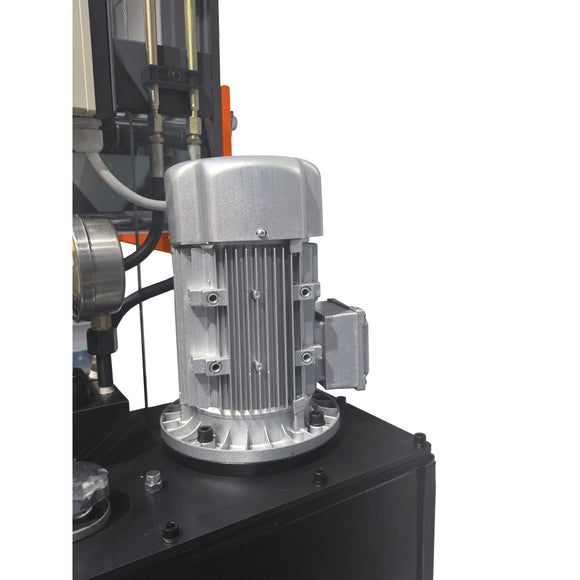

  • Motor power 1,5 kW
  • Motor speed 1400 min¯¹
  • Net weight 690 kg
  • Piston stroke 300 mm
  • Piston travel 255 mm
  • Press speed 4.5 mm/s
  • Pressure force 100 t
  • Supply voltage 400 V
  • Width 990 mm
  • Width/depth of machine feet 990 mm

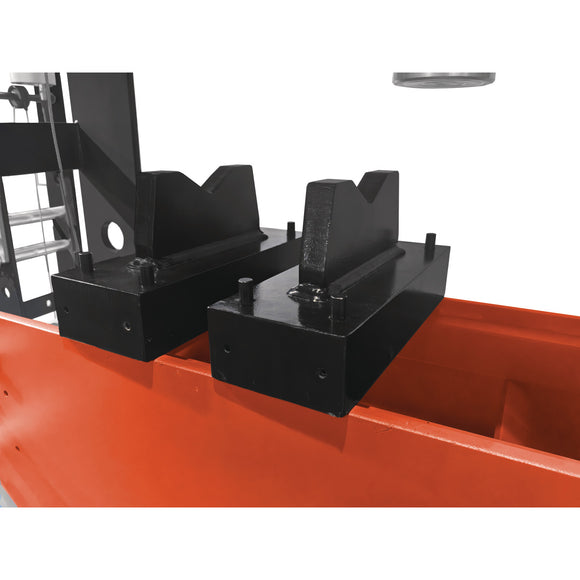

  • Two prism blocks for inserting round material
  • Supplied without hydraulic oil
