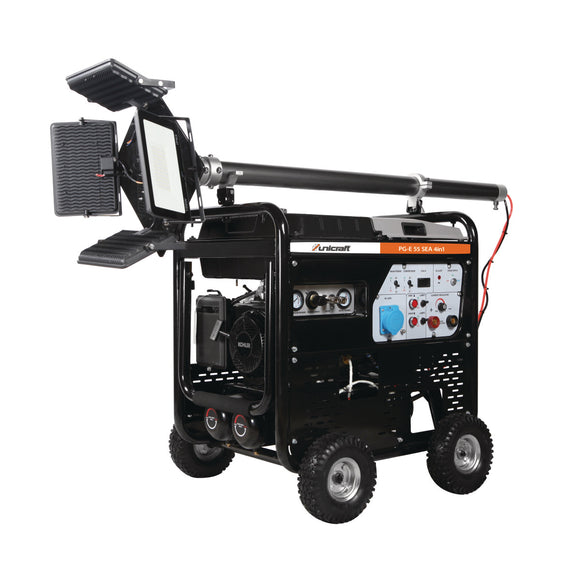

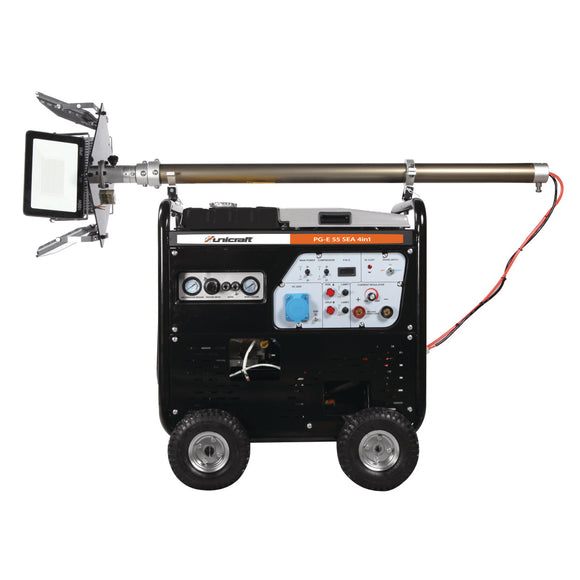

Synchronous power generator PG-E 55 SEA 4 in 1

€4.414,47 EUR (€3.589,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 6706955 Barcode: 4036351360803

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Synchronous power generator PG-E 55 SEA 4 in 1.
  • Multifunctional power generator for the construction site and outdoor use thanks to welding, compressor and light function
  • Equipped with manual and electric start
  • Choke for easy cold start
  • Integrated AVR control for constant power voltage
  • Extremely robust thanks to tubular lattice frame and solid rubber tires

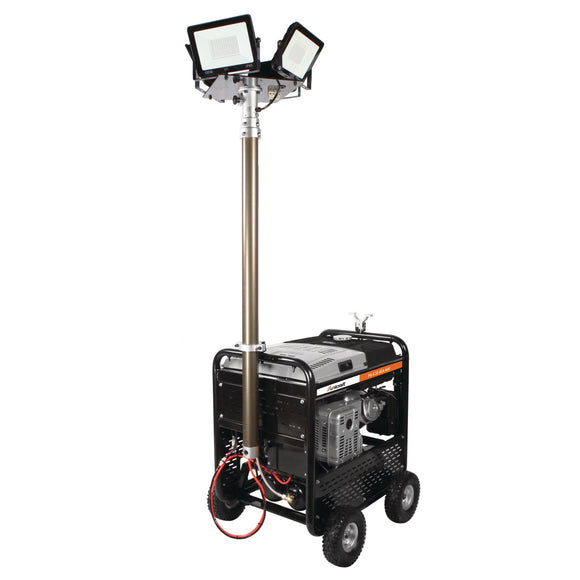

  • Height-adjustable light mast with 360° lighting

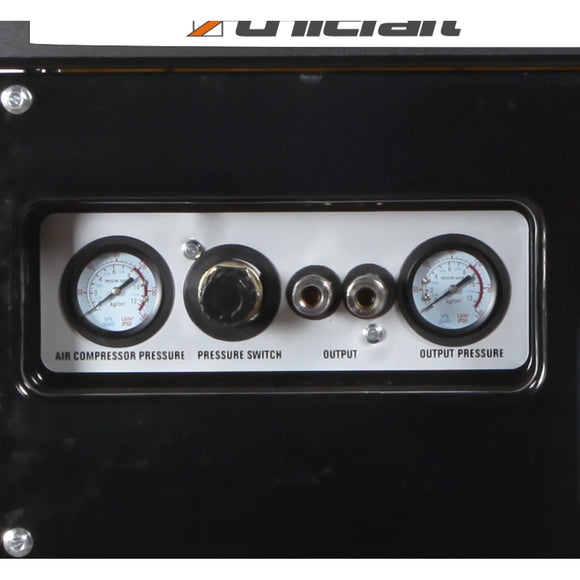

  • Integrated compressor, perfect for compressed air applications on site
  • Two one-hand quick couplings for operating compressed air tools
  • Flexibly adjustable welding current up to 200 A - ideal for various welding jobs with the stick electrode
  • Does not comply with noise standard /14/EC, not approved for outdoor operation without noise protection measures


.
  • Continuous output power (active power) 5.0 kW
  • Continuous output power (apparent power) 5.0 kVA
  • Current at 100% DC 40°C electrode 180 A
  • Degree of protection IP 21
  • Duty cycle at Imax. 40°C electrode 50 %
  • Fill capacity 100 l/min
  • Filling capacity at operating pressure 6 bar
  • Generator IP degree of protection IP 21 S
  • Height 780 mm
  • Length 851 mm
  • Light height 4.5 m
  • Light strength 4 x 100 W
  • Limited output power (active power) 5.5 kW
  • Limited output power (apparent power) 5.5 kVA
  • Mains plug DKJ35-50
  • Maximum pressure 8 bar
  • Maximum volume flow 200 l/min
  • Motor speed 3000 min¯¹
  • Net weight 158 kg
  • Nominal voltage 230 V
  • Number of cylinders 2
  • Oil tank capacity 1.1 l
  • Open circuit voltage 75 V
  • Power factor 1 cos phi
  • Pressure vessel capacity 20 l
  • Running time at 100% load 9 h
  • Running time at 50% load 18 h
  • Setting range Electrode 50 – 200 A
  • Socket IP degree of protection IP 44
  • Socket type 1x 230V 32A
  • Sound power level 106.3 dB(A)
  • Sound pressure level 97 dB(A)
  • Speed generator 3000 min¯¹
  • Starter Manual start / electric start
  • Tank capacity 30 l
  • Weldable electrodes 1.6 – 5.0 mm
  • Width 583 mm
