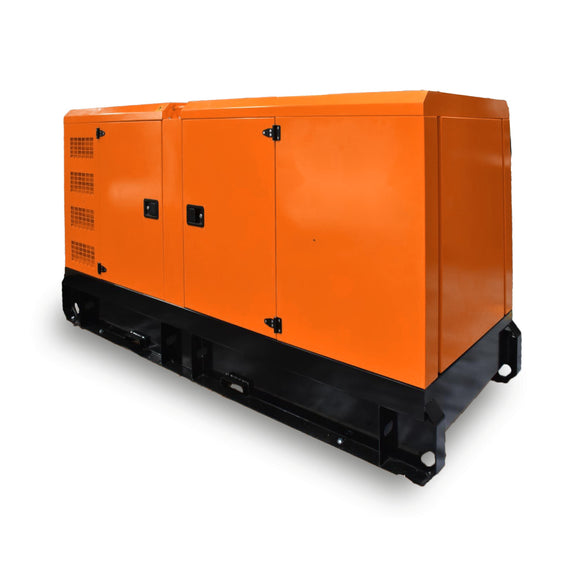

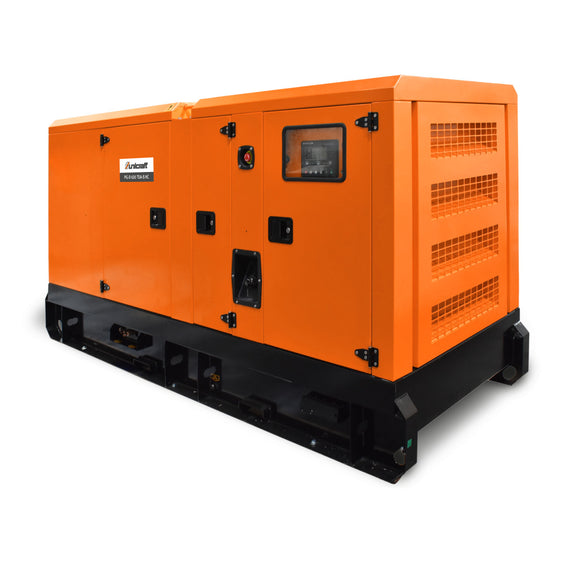

Synchronous power generator PG-D 630 TEA-S HC

• Continuous output power (active power) 13.5 / 45 kW
• Continuous output power (apparent power) 16.8 / 56 kVA
• Coolant capacity 13 l
• Drive 4D20TIG1/5
• Emission standard Euro 5
• Frequency 50 Hz
• Generator IP degree of protection IP 23
• Height 1200 mm
• Length 2250 mm
• Limited output power (active power) 15 / 50 kW
• Limited output power (apparent power) 18.9 / 63 kVA
• Net weight 1050 kg
• Nominal voltage 230 / 400 V
• Oil tank capacity 6.5 l
• Power factor 0.8 Cos ɸ
• Running time at 100% load 8 h
• Running time at 50% load 10 h
• Socket IP degree of protection IP 44 / IP 67

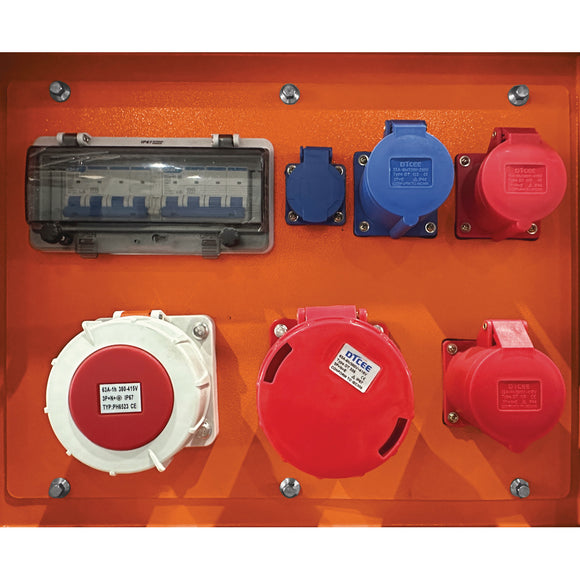

• Socket type 1x 230V, 16 A, Schuko / 1x 230V, 32 A, CEE / 1x 400V, 16 A, CEE / 1x 400V, 32 A, CEE / 1x 400V, 63 A, CEE / 1x 400V, 63 A, 1h
• Sound power level 97 dB(A)
• Sound pressure level 75 dB(A)
• Speed generator 1500 min¯¹
• Tank capacity 90 l
• Width 930 mm
