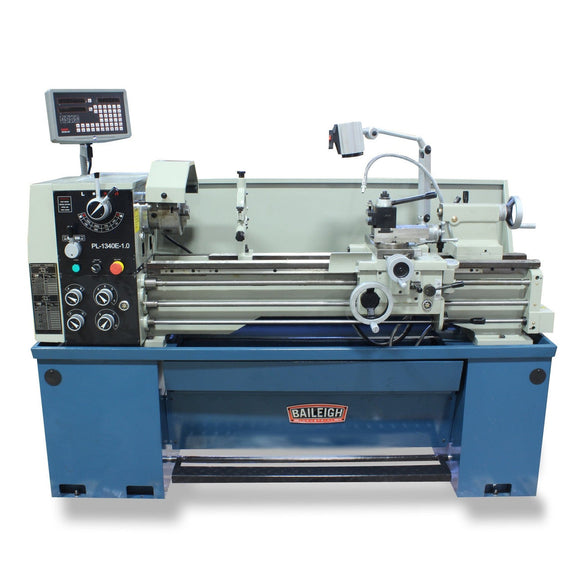

The Baileigh PL-1340E is a reliable and cost-effective precision metal lathe, ideal for small to medium workshops and training environments. Built with hardened and ground ways and high-quality castings, it ensures smooth, vibration-free operation and long-term accuracy.
Powered by a 230V single-phase system, this gear head lathe offers multiple spindle speeds and a wide threading range, making it suitable for various turning applications.
Supplied with a comprehensive accessory package including 3 and 4 jaw chucks, steady rest, follow rest and coolant system, the PL-1340E delivers excellent value and productivity.
Swing over bed: 330 mm
Swing over cross slide: 197 mm
Swing in gap: 477 mm
Distance between centres: 1016 mm
Spindle speed: 70 – 2000 rpm (9 speeds)
Spindle bore: 38 mm
Spindle nose: D1-4"
Motor: 230V, single phase
Metric threads: 0.4 – 7 mm
Longitudinal feed: 0.05 – 1.4 mm/rev
Cross travel: 160 mm
Top slide travel: 68 mm

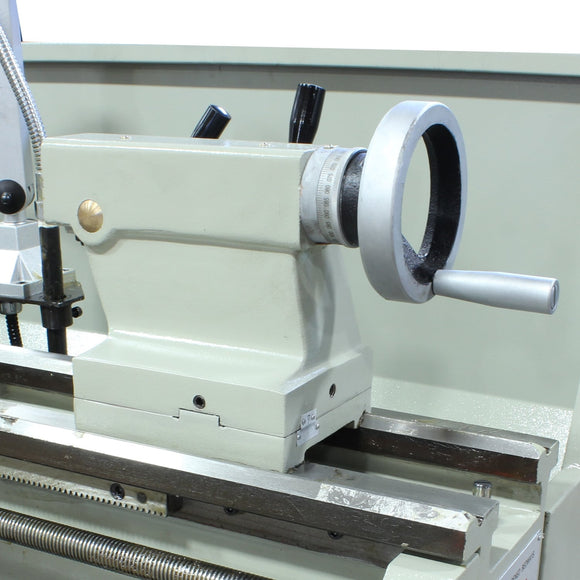

Tailstock taper: MT4
Weight: 650 kg
Included Accessories:
6” 3-jaw chuck
8” 4-jaw chuck

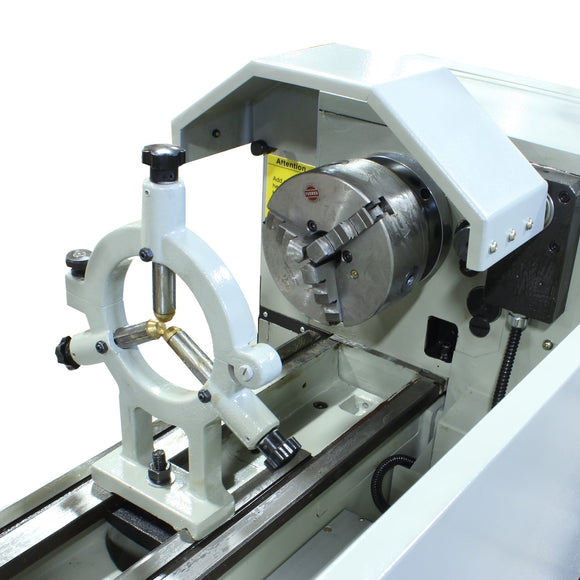

Steady rest

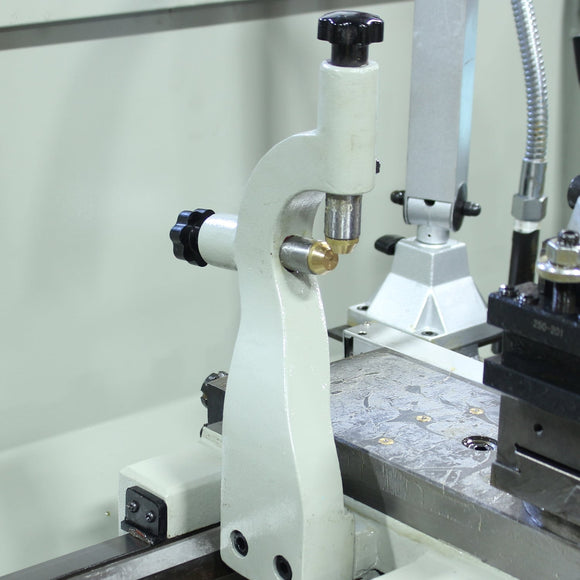

Follow rest
Face plate
Live center

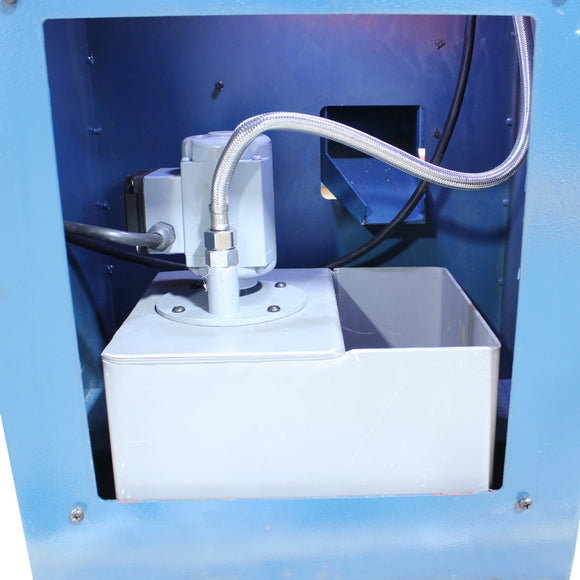

Coolant system
Work light
