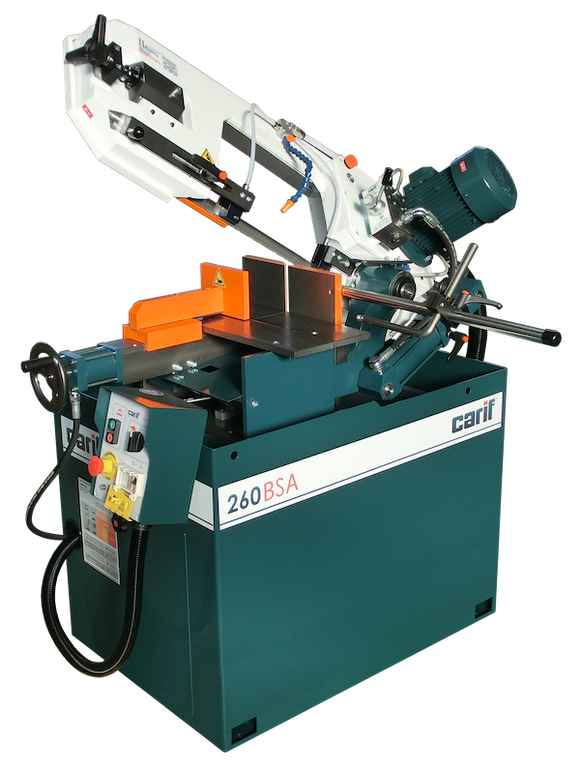

Carif 260 BSA semi-automatic double mitre band saw

Technical specifications

Maximum cutting capacity at 0°

• Round: 220 mm
• Square: 220 mm
• Rectangular: 260 × 150 mm

Maximum cutting capacity at -45°

• Round: 130 mm
• Square: 100 mm
• Rectangular: 120 × 100 mm

Maximum cutting capacity at +45°

• Round: 150 mm
• Square: 150 mm
• Rectangular: 150 × 150 mm

Maximum cutting capacity at +60°

• Round: 90 mm
• Square: 60 mm
• Rectangular: 90 × 60 mm

Drive and electrical

• Supply voltage: 400 V, 3-phase (option: 240 V single-phase, 1-speed)
• Motor power: 1.4 kW
• Operation: hydraulic (semi-automatic)

Saw band

• Mitre angle: -45° to +60°
• Saw band speeds (two-speed): 33 / 66 m/min
• Saw band speed (variable, optional): 15 - 100 m/min
• Saw band dimensions: 2450 × 27 × 0.9 mm

Dimensions and weight

• Length: 1250 mm
• Width: 650 mm
• Height: 1650 mm
• Bed height: 830 mm
• Machine weight: 340 kg
