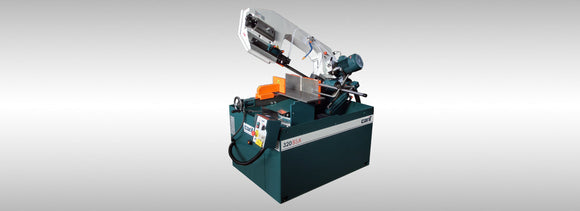

Carif 320 BSA semi-automatic double mitre band saw

€11.499,00 EUR

Tax includedShipping calculated at checkout

SKU: Carif 320BSA

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

WhatsApp
Description Features Delivery contents Shipping

The Carif 320 BSA is a medium-size, heavy-duty hydraulic band saw with double-mitre cutting from -45° to +60° and a 1.1/1.4 kW dual-speed motor (38-76 m/min). Its hydraulic feed adapts automatically to material thickness, hardness and blade wear, and the mitre mechanism runs independently of the support tables, so busy fabrication shops get accurate, consistent cuts on tubes, profiles and solid stock without constant operator adjustment.

Key features

  • Mitre cutting from -45° to +60° via conical bearings, independent from the support tables for improved accuracy
  • Patented hydraulic feed and cutting pressure control that adapts automatically to material thickness, hardness and blade wear
  • Robust powder-coated steel base and hardened aluminium bow for stability and long service life

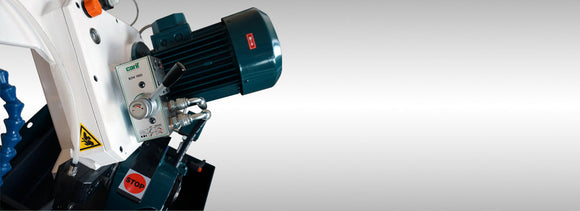

  • 1.1/1.4 kW dual-speed blade motor, 38-76 m/min

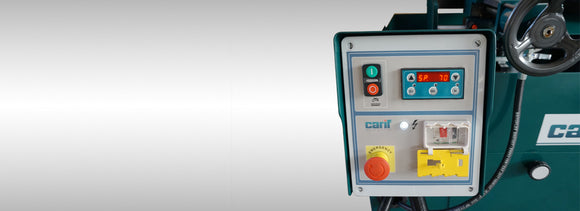

  • Fully movable electrical cabinet for better ergonomics
  • Wide support tables for a comfortable working area

Standard equipment

  • 50 L coolant system with electric pump
  • 500 mm measuring device
  • Large chip container
  • M42 bimetal blade, 3025 × 27 × 0.9 mm

Technical specifications

Maximum cutting capacity at 0°

  • Round: 275 mm
  • Square: 265 mm
  • Rectangular (upright): 320 × 230 mm

Maximum cutting capacity at -45°

  • Round: 190 mm
  • Square: 160 mm
  • Rectangular: 200 × 100 mm

Maximum cutting capacity at +45°

  • Round: 200 mm
  • Square: 185 mm
  • Rectangular: 185 × 220 mm

Maximum cutting capacity at +60°

  • Round: 130 mm
  • Square: 130 mm
  • Rectangular: 120 × 140 mm

Drive and electrical

  • Blade motor power: 1.1 / 1.4 kW
  • Coolant pump motor power: 0.1 kW

Saw band

  • Mitre angle: -45° to +60°
  • Saw band speeds: 38 / 76 m/min
  • Saw band dimensions: 3025 × 27 × 0.9 mm

Vice

  • Vice opening width: 320 mm
  • Optional vice opening width: 400 mm

Dimensions and weight

  • Width × length × height: 1450 × 900 × 1320 / 1800 mm
  • Bed height: 830 mm
  • Machine weight: 620 kg
