Carif 550 BSA VAR-E Semi-Automatic Bandsaw

€22.755,00 EUR

Tax includedShipping calculated at checkout

SKU: 550BSAVAR-E

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

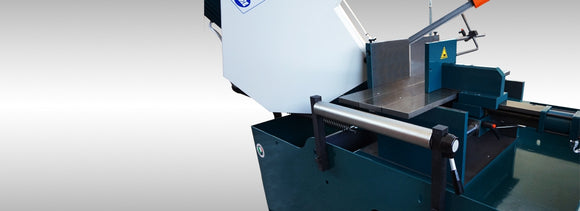

The Carif 550 BSA VAR-E is a high-performance semi-automatic hydraulic bandsaw engineered for cutting large metal sections with exceptional accuracy and stability. Built on a massive steel base and a one-piece welded steel head, the machine provides outstanding rigidity, reduced vibration, and long-term durability in industrial environments.

Equipped with a heavy-duty gearbox and a 4 kW electronic speed variator, the VAR-E model offers stepless blade speed control from 15 to 100 m/min, allowing optimal cutting performance across different materials and profiles. Carif’s patented hydraulic system enables precise, independent regulation of bow feed and cutting pressure, guaranteeing smooth and consistent results.

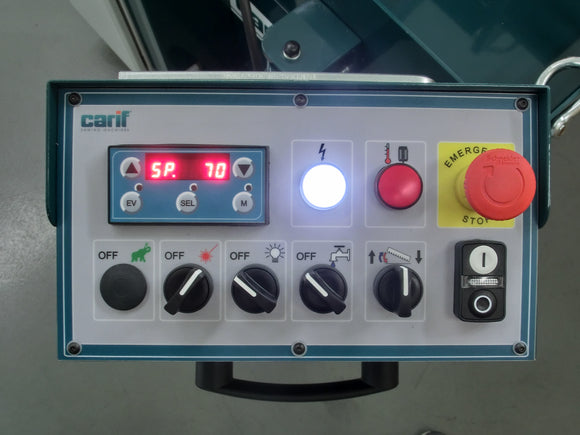

The swing-arm console features an integrated display for controlling blade speed, cutting height, blade tension, and piece counting. A potentiometer allows memorizing the cutting height so the bow automatically returns to the preset start point. Additional sensors monitor blade rotation and blade tension to ensure safe and efficient operation.

Operator comfort and productivity are enhanced through features such as powered blade brush, hinged frame cover for quick blade change, eccentric roller for short piece cutting, wide support tables, a 50-litre coolant system, and a large chip container.
Supplied with an M42 bimetal blade (3820 × 34 × 1.1 mm), service tools, and documentation, the Carif 550 BSA VAR-E is ideal for workshops requiring high-capacity, precision mitre cutting with modern automation and control.

  • Cutting angle range: –45° to +60°
  • Cutting range 0° round: 330 mm
  • Cutting range 0° square: 300 / 330 mm*
  • Cutting range 0° rectangular upright: 550 × 200 mm, 500 × 300 mm, 460 × 330 mm*
  • Cutting range –45° round: 300 mm
  • Cutting range –45° square: 260 mm
  • Cutting range –45° rectangular: 300 × 220 mm
  • Cutting range +45° round: 330 mm
  • Cutting range +45° square: 300 mm
  • Cutting range +45° rectangular: 320 × 300 mm
  • Cutting range +60° round: 200 mm
  • Cutting range +60° square: 140 / 170 mm*
  • Cutting range +60° rectangular: 200 × 140 mm
  • Saw band length: 3820 × 34 × 1.1 mm
  • Saw band speed (VAR-E): 15–100 m/min
  • Motor power: 4 kW (blade drive), 0.75 kW (hydraulic), 0.12 kW (coolant)
  • Vice opening width: 550 mm
  • Machine dimensions (B × L × H): 2050 × 1180 × 2080 mm
  • Working height: 830 mm
  • Machine weight: 1100 kg
