Guide and traction spindle lathes OPTIturn TH 3309

Name: Guide and traction spindle lathes OPTIturn TH 3309
Brand: Optimum
SKU: 3402030
Price: 7724.4 EUR
Availability: InStock

€7.724,40 EUR (€6.280,00 excl.Vat) Save €-7.724,40 EUR

Tax includedShipping calculated at checkout

SKU: 3402030 Barcode:

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Description Features Delivery contents Shipping

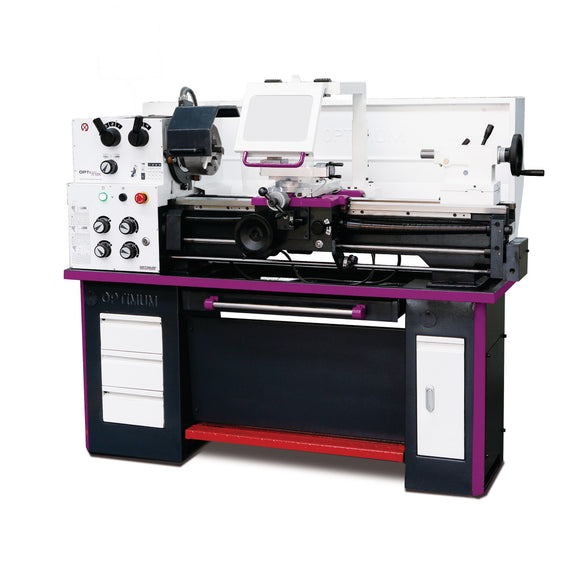

Guide and traction spindle lathes OPTIturn TH 3309.

Hardened and ground Z-axis guideway
Precisely machined slide
Guaranteed concentricity of the spindle nose ≤ 0.015 mm
Lead screw cover
All guides can be adjusted using gibs
Right/left rotation switchable on the bed slide
Two-channel safety electronics
DC 24 V electrics with two-channel safety circuit in accordance with EN 23125
Switch with life cycle calculation tested according to EN ISO 13849
Gear wheels smooth-running, hardened and ground
Main spindle runs in oil bath
Upper slide adjustment range ± 90°
LED machine lamp integrated in chip guard
Handwheels with adjustable fine scaling 0.04 / 0.02 mm
Handwheels decoupled and tested according to EN 23125
Safety handwheels with disengagement function in the X- and Z-axis
Heavily ribbed prism bed, induction hardened and precision ground
Tailstock adjustable ± 10 mm for taper turning
Tailstock quill and handwheel with adjustable fine scaling 0.02 mm
Quick, easy and tool-free adjustment using clamping lever

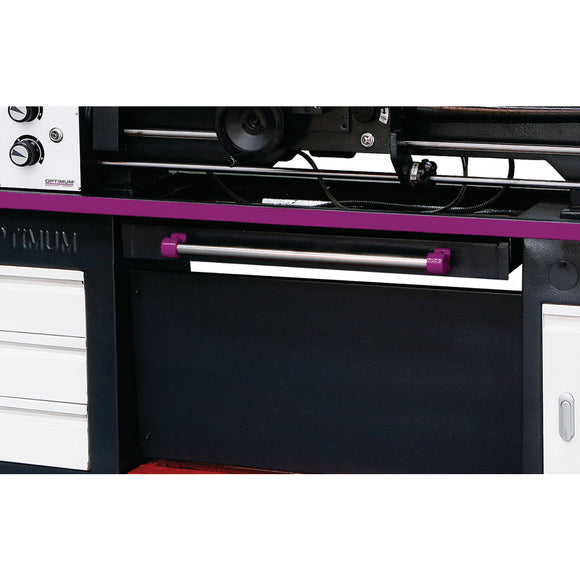

Machine base with tool compartment on the right-hand side (left-hand side with 3 panels (no compartments))
Lockable main switch
Quadruple steel holder
Emergency stop device with foot control
Rotating chuck guard tested in accordance with EN 23125
Set of interchangeable gears included as standard
