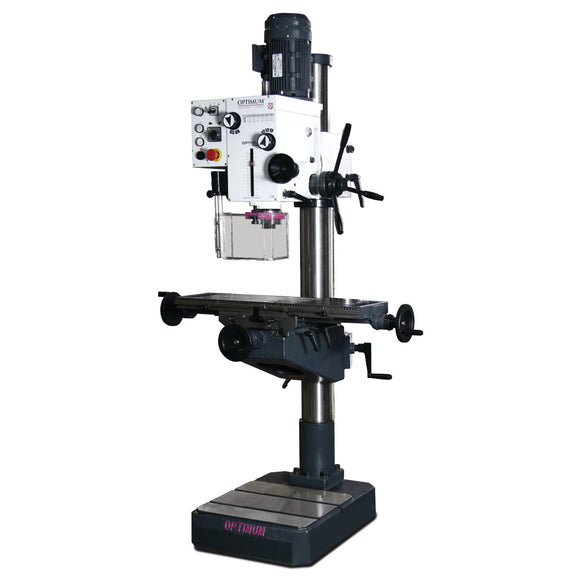

Pillar gear drill with cross table OPTIdrill DH 40CT (230v)

  • Heavy, solid cast version
  • Smooth running due to ground gearwheels running in an oil bath

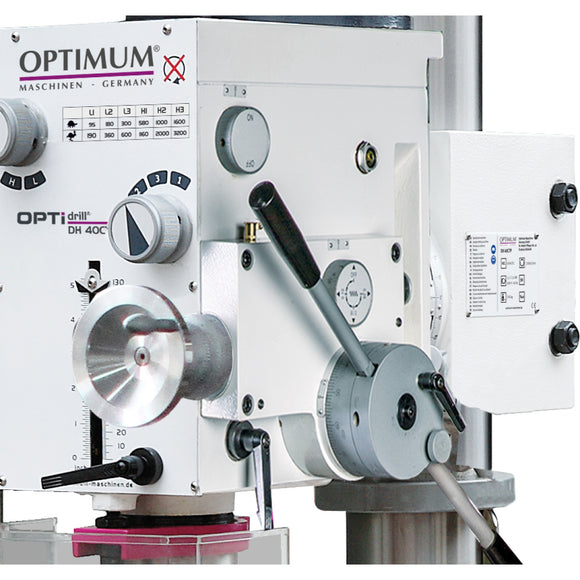

  • Large speed range from 95 - 1.600 min-1
  • Dual-stage quality industrial electric motor

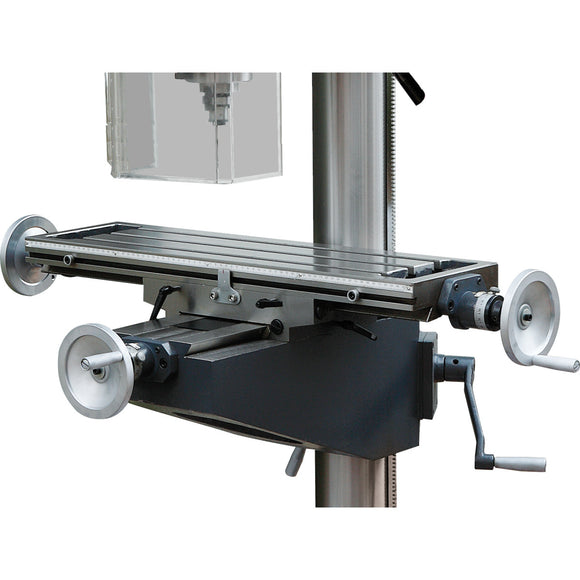

  • Large dimensioned, solid cross table, precisely surface machined, adjustable via 3 handwheels, with integrated longitudinal dimension scale
  • Adjustable end stops on cross table
  • The height of the gear head and table can be adjusted
  • Table guides can be precisely adjusted via adjustable wedge strips
  • Massive, precisely surface-treated base plate; can be used as work surface for particularly high workpieces by swivelling the cross table away
  • Right/left rotation
  • Drill depth stop
  • Thread cutting function



.

  • 95 - 1600 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 25 mm
  • Draw-in rod M 16

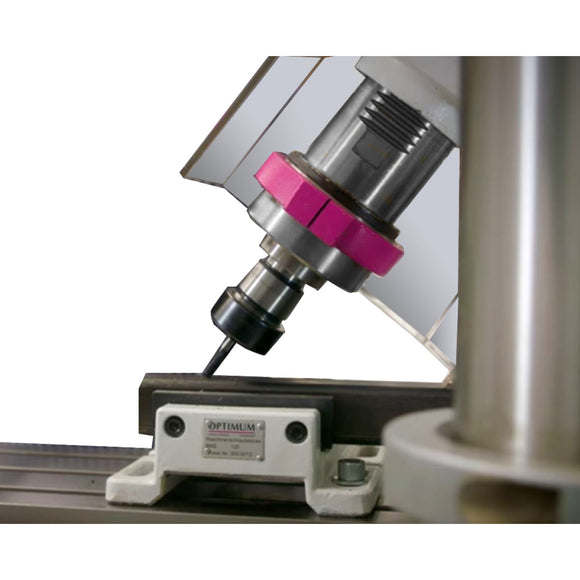

  • Drilling head angle 45 °
  • Drilling head height adjustment 260 mm
  • Drilling head rotation 360 °
  • Drilling performance (steel) 32 mm
  • Drilling table load bearing capacity 50 kg
  • Drilling table workspace length 730 mm
  • Drilling table workspace width 210 mm
  • Frequency 50 Hz

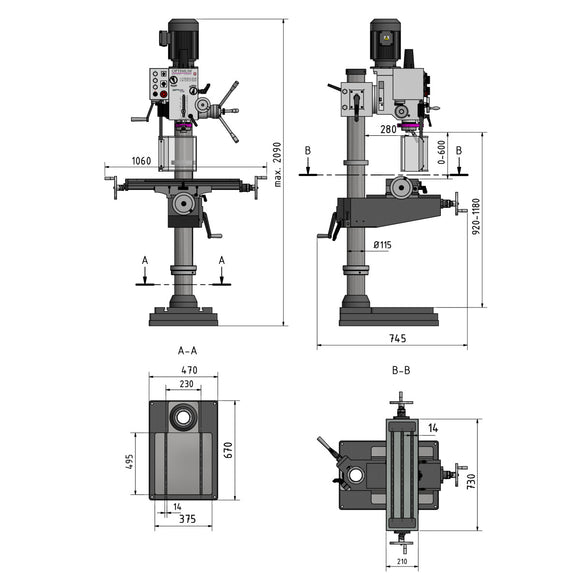

  • Height 2090 mm
  • Length 1060 mm
  • Machine base length 670 mm
  • Machine base width 470 mm
  • Machine base workspace length 495 mm
  • Machine base workspace width 375 mm
  • Max. sensor head size 76 mm
  • Max. shaft milling cutter size 25 mm
  • Motor power 1,1 / 1,5 kW
  • Net weight 370 kg
  • Number of gears 2 x 6 Steps
  • Quill diameter 75 mm
  • Quill feed Manual
  • Quill stroke 120 mm
  • Reach 280 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 16
  • Width 745 mm
  • X-axis travel 480 mm
  • Y-axis travel 180 mm
  • Z-axis travel 560 mm
  • Key drill chuck 1 - 13 mm / B 16
  • T-nuts
  • Adapter MK 4-MK 3
  • Arbor MK 4 / B16
  • Operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire
Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR

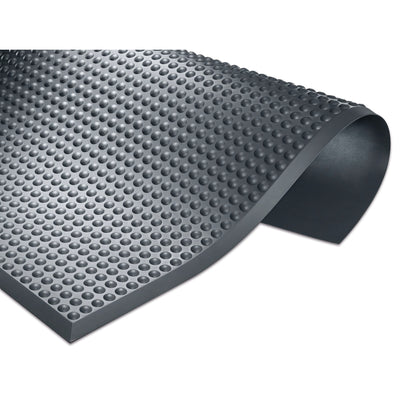

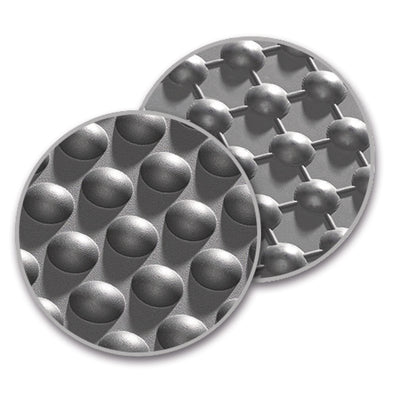

Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

Workplace mat 3040 x 640 mm

Unicraft

€441,57 EUR
Enquire
Workplace mat 1840 x 940 mm Workplace mat 1840 x 940 mm - 0

Workplace mat 1840 x 940 mm

Unicraft

€375,15 EUR
Enquire

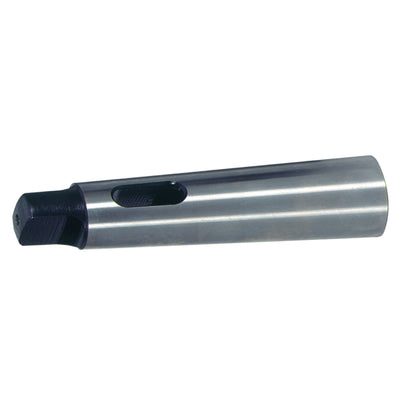

Reducing sleeve MK4-MK3 Reducing sleeve MK4-MK3 - 0
