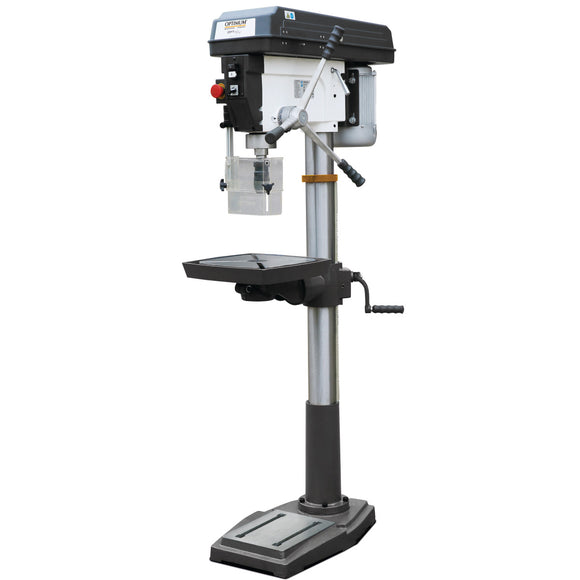

Optimum OPTIdrill DQ 32 upright drill (230 V)

The Optimum OPTIdrill DQ 32 is a 230 V upright drill with a drilling capacity of up to 30 mm in steel, nine speeds from 120 to 1810 min⁻¹ and an MT 4 spindle. It runs from a standard single-phase supply, so it suits workshops without three-phase power. Its toothed GATES V-belt drive and precision spindle with concentricity better than 0.03 mm keep holes accurate in large-diameter work, while the tiltable, rotating table with a 55 kg load capacity and the heavily ribbed base plate keep heavy workpieces stable during drilling.

Key features

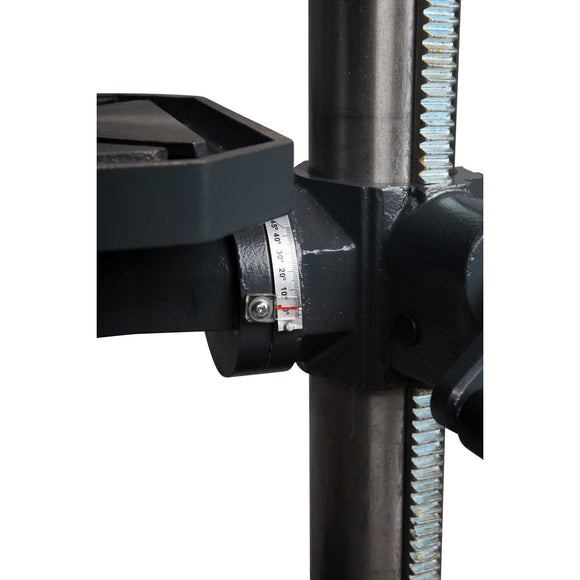

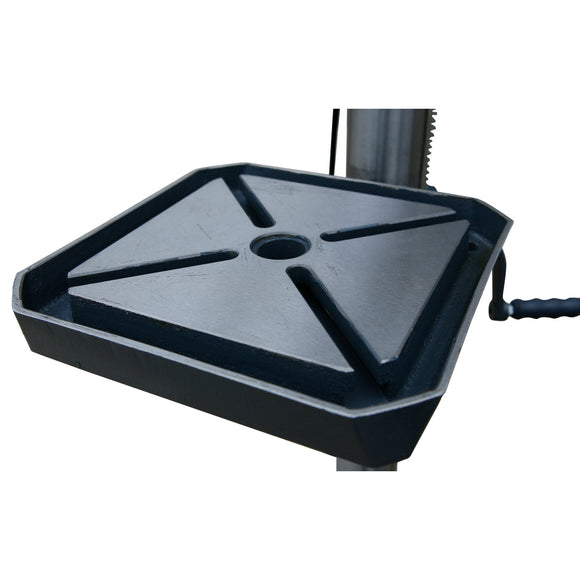

  • Precisely machined drilling table, tiltable ±45° sideways and rotatable 360°
  • Large, solid base plate with grooves, heavily ribbed on the back
  • Ground multi-spline spindle drive

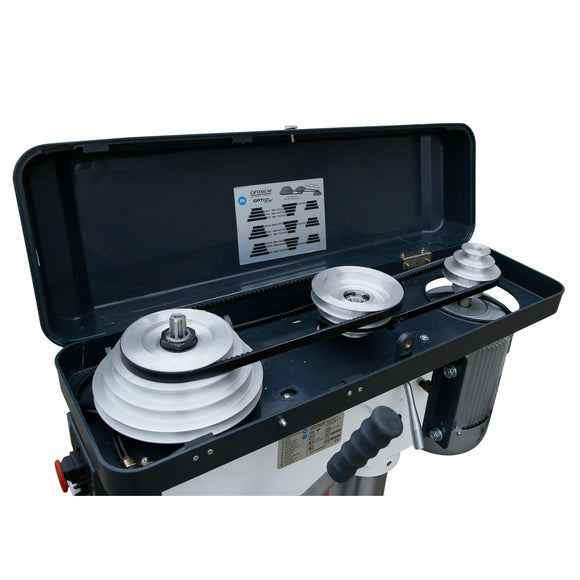

  • Aluminium pulleys with a toothed GATES quality V-belt for efficient power transmission
  • Guaranteed concentricity of better than 0.03 mm, measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick-action drill chuck included as standard
  • Belt cover with safety switch
  • Easy-to-use switch with IP 54 protection
  • Separate emergency stop pushbutton switch

Technical specifications

Drilling capacity

  • Drilling capacity in steel: 30 mm
  • Continuous drilling capacity in steel: 25 mm
  • Quill stroke: 120 mm
  • Reach: 254 mm
  • Column diameter: 92 mm
  • Spindle mount: MT 4

Speed and drive

  • Speed range: 120 - 1810 min⁻¹
  • Number of speeds: 9
  • Motor power: 1.1 kW
  • Supply voltage: 230 V, 50 Hz

Drilling table

  • Table tilt angle: ±45°
  • Table rotation: 360°
  • Table working area: 355 × 355 mm
  • Table load capacity: 55 kg

Machine base

  • Base working area: 575 × 350 mm

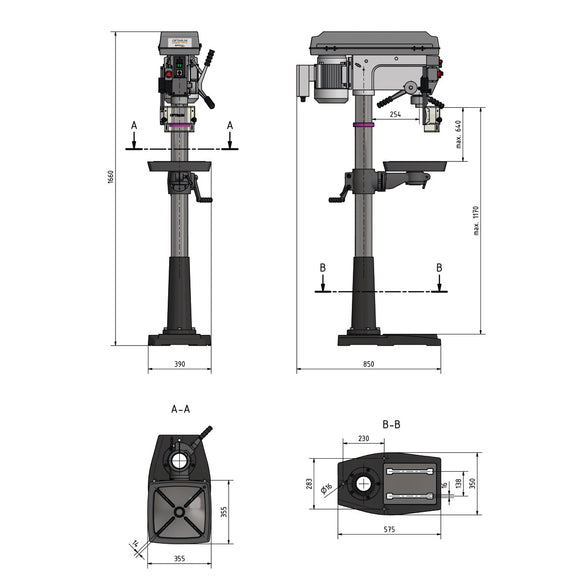

Dimensions and weight

  • Length: 850 mm
  • Width: 390 mm
  • Height: 1660 mm
  • Net weight: 120 kg
  • Quick action drill chuck 1 - 16 mm
  • T-nuts
  • Morse taper MK 3/B16 (DQ 25)
  • Morse taper MK 4/B16 (DQ 32)
  • drift punch
