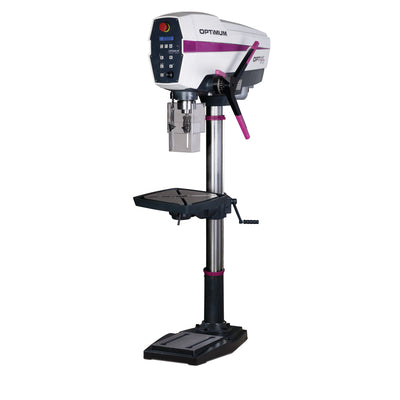

Upright drill OPTIdrill DP 33V

€2.864,67 EUR (€2.329,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3020680 Barcode: 4030635046902

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Upright drill OPTIdrill DP 33V.
  • Industrial motor
  • Quiet-running spindle thanks to new spindle design
  • Machine operation with safety electrics in 24 V DC voltage
  • Guaranteed concentricity ≤ 0. 02 mm measured in the drilling spindle
  • Clockwise/anticlockwise rotation
  • Precision spindle bore
  • Control panel with user-friendly, dirt and water-resistant membrane keypad
  • Speed display
  • Separate emergency stop switch
  • Thread cutting function

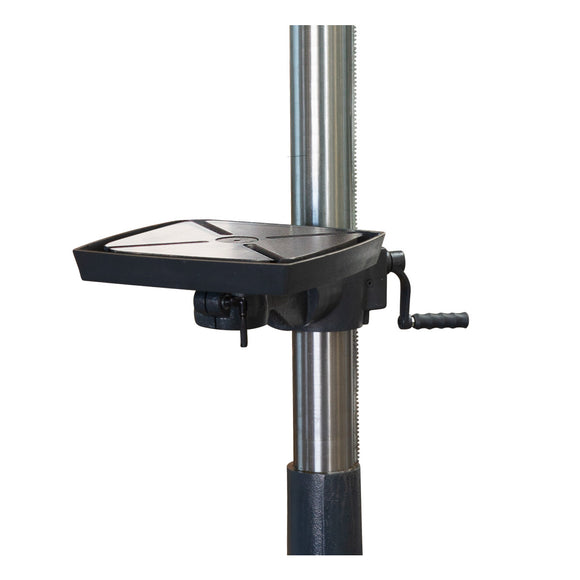

  • Precisely machined, sturdy drill table with diagonal T-slots with all-round cooling water channel, can be tilted sideways by ±45° and rotated through 360
  • Digital depth gauge
  • LED machine light integrated in the drill head

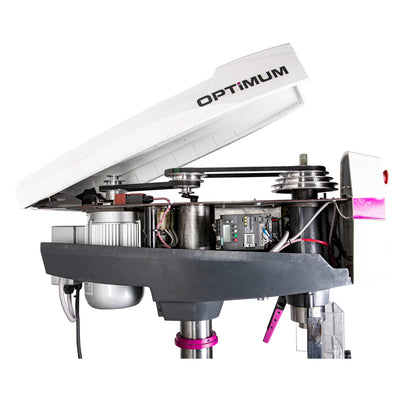

  • V-belt cover with safety switch
  • Thick-walled steel column for high force absorption and stability

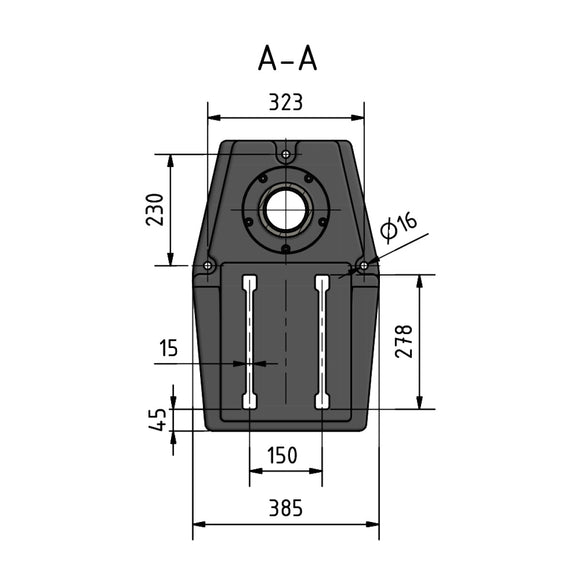

  • Massive, large base plate with T-slots
  • Heavy-duty design of the entire machine


.
  • 70 - 2800 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 25 mm
  • Drilling performance (steel) 30 mm
  • Drilling table angle 45 °
  • Drilling table load bearing capacity 65 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 387 mm
  • Drilling table workspace width 387 mm
  • Frequency 50 Hz

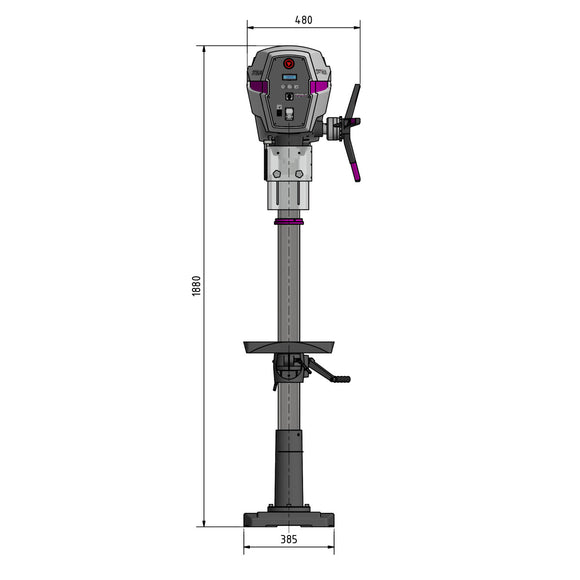

  • Height 1880 mm

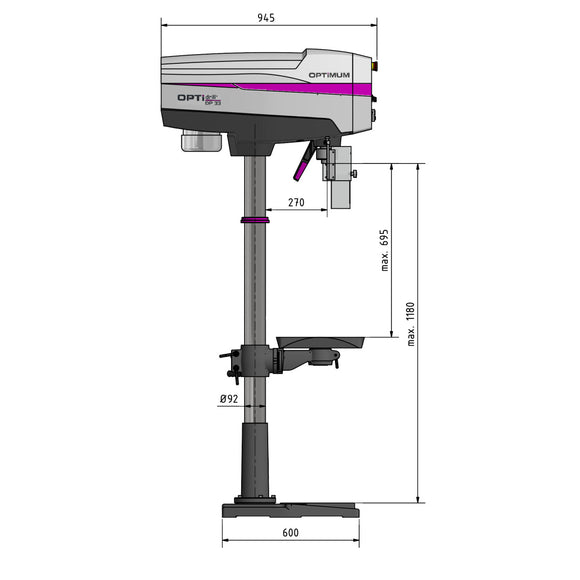

  • Length 945 mm
  • Machine base workspace length 270 mm
  • Machine base workspace width 327 mm
  • Net weight 177 kg
  • Number of gears 9 Stages
  • Quill stroke 125 mm
  • Reach 270 mm
  • Spindle chuck MT 4
  • Spindle motor power 1.1 kW
  • Supply voltage 400 V
  • Width 480 mm
  • Quick-action drill chuck 0 - 16 mm
  • T-nuts
  • Extractor
  • Adapter MK 4-B16
  • Operating tool
