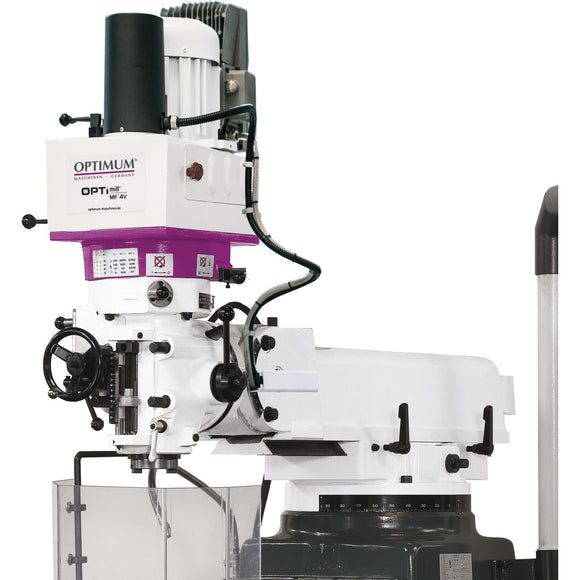

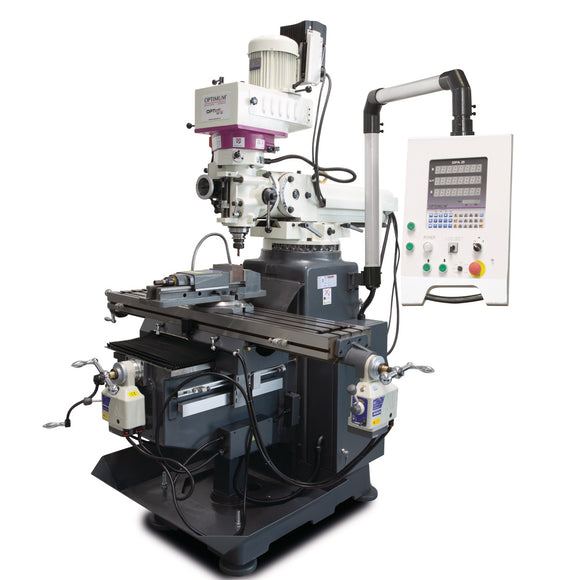

Drilling-milling machine OPTImill MF 4V

• Continuous drilling performance (steel) 28 mm
• Coolant pump(s) drive power 100 W

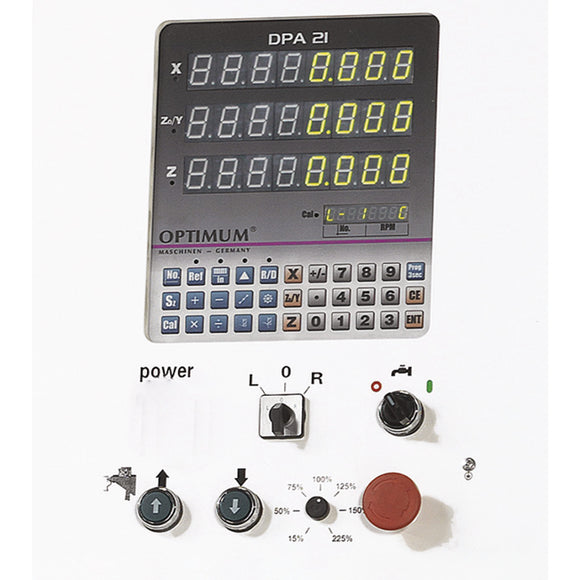

• Digital position indicator DPA 21
• Drilling performance (steel) 32 mm
• EMC level C2
• Frequency 50 Hz
• Height 2200 mm
• Horizontal milling table length 1370 mm
• Horizontal milling table max. load bearing capacity 275 kg
• Horizontal milling table width 254 mm
• Length 1500 mm
• Max. size milling head 100 mm
• Max. size shaft milling cutter 20 mm
• Mill head swivel range ± 90 °
• Net weight 1150 kg
• Standard DIN EN 55011
• Supply voltage 400 V
• Total rated value 4.5 kW

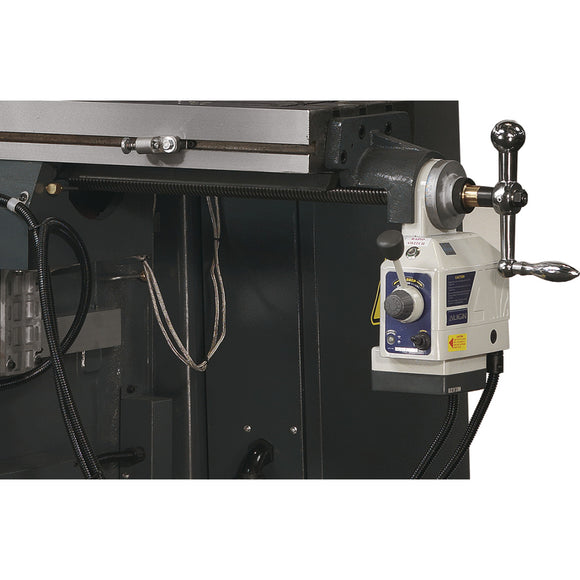

• Travel X axis automatic 800 mm
• Travel Z axis automatic 365 mm
• Vertical spindle drive motor output normal operation 3 kW
• Vertical spindle number of gears 8
• Vertical spindle quill feed 0.038/0.076/0.152 mm/rev
• Vertical spindle quill stroke 127 mm
• Vertical spindle reach from to 200 – 680 mm
• Vertical spindle speed range 9 – 6750 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 1450 mm
• X-axis travel 900 mm
• Y-axis travel 320 mm
• Z-axis travel 400 mm

• Chip tray
• Operating tool
