Horizontal-vertical rotary indexing table RT 150-1
Horizontal-vertical rotary indexing table RT 150-2

Horizontal-vertical rotary indexing table RT 150

€504,30 EUR (€410,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3356150 Barcode: 4030635001680

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

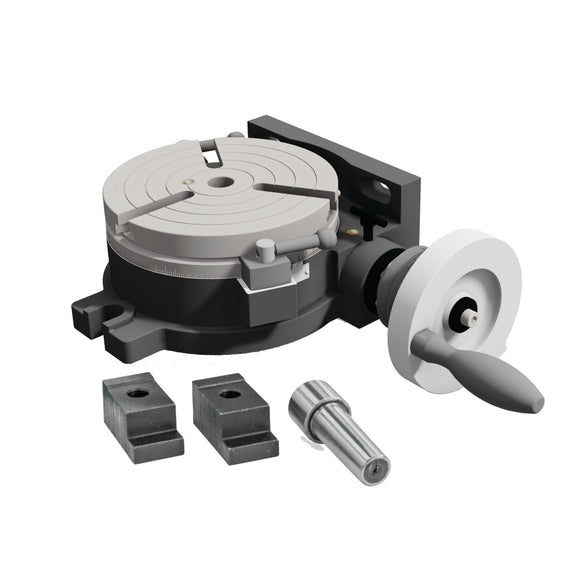

Horizontal-vertical rotary indexing table RT 150.
  • Work table is 360° scaled
  • Precision storage
  • One rotation of the handwheel corresponds to 4° rotation
  • Stability even under high stress
  • Scale division on the handwheel 2′
  • Large spindle bore, for clamping longer workpieces
  • Division via scaled handwheel with Nonius possible
  • Screw hardened and ground
RT 200
  • Angular degree parts over 360 degree angle scale
  • Nut 16mm (M16)
  • With optional indirect discs divisions in high numbers possible


.
  • Clamping surface diameter 150 mm
  • Clamping surface groove number 3
  • Clamping surface groove width 11 mm
  • Closed height 79 mm
  • Length 204 mm
  • Max. height 102 mm
  • Net weight 12 kg
  • Width 156 mm
  • 2 clamping blocks
  • Centring cone MT 2
