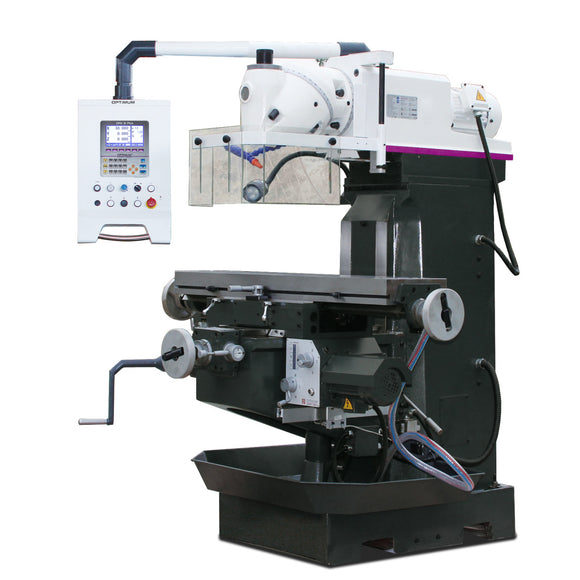

Universal milling machine OPTImill MT 100

• Coolant pump(s) drive power 40 W

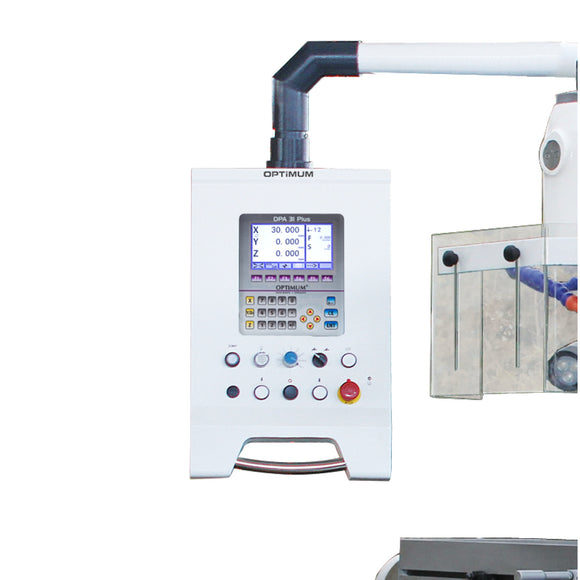

• Digital position indicator DPA 31 Plus
• Frequency 50 Hz
• Height 1650 mm
• Horizontal milling table length 1120 mm
• Horizontal milling table max. load bearing capacity 350 kg
• Horizontal milling table width 260 mm
• Length 1540 mm
• Max. size milling head 85 mm
• Max. size shaft milling cutter 20 mm
• Net weight 1300 kg
• Supply voltage 400 V
• Total rated value 3.36 kW
• Travel X axis automatic 480 mm
• Travel Z axis automatic 340 mm
• Vertical spindle drive motor output normal operation 2,2 kW
• Vertical spindle number of gears 11
• Vertical spindle speed range 45 – 1600 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Vertical spindle tightening bar M16
• Width 1355 mm
• X axis feed drive motor output 0.37 kW
• X axis feed speed 24 – 402 mm/min
• X-axis travel 600 mm
• Y axis feed drive motor output 0.37 kW
• Y-axis travel 270 mm
• Z axis feed drive motor output 0,75 kW
• Z axis feed speed 24 – 402 mm/min
• Z-axis travel 380 mm

• Milling spindle Horizontal milling ISO 40 Ø 32 mm
• Milling mandrel ISO 40 Ø 32 mm
• operating tool
