Copy and face milling cutter BT 20-1
Copy and face milling cutter BT 20-2
Copy and face milling cutter BT 20-3
Copy and face milling cutter BT 20-4

Copy and face milling cutter BT 20

€325,95 EUR (€265,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3350202 Barcode: 4030635036170

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

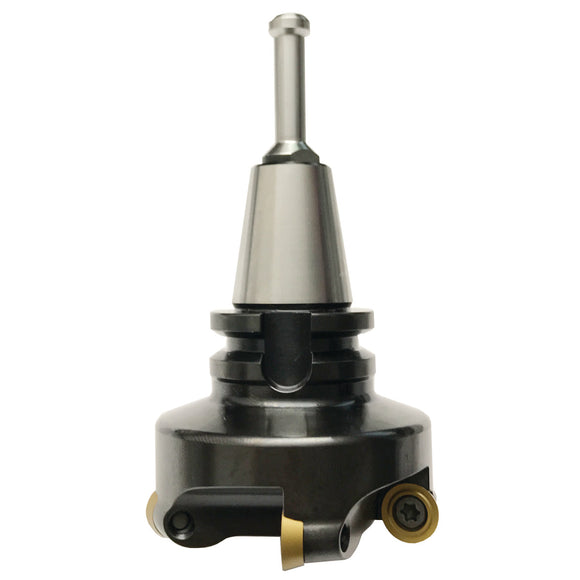

Copy and face milling cutter BT 20.
  • For plan and copy milling
  • Made of special steel - highly tempered
  • High concentricity and concentricity
  • Milling body with uneven pitch for particularly smooth running and uniform cutting
  • Body and clamping stem form one unit, thus short overhang length and stable tension
  • No additional cutter cotter pin is used
  • Special geometry for milling at high speed
  • Economical, as with a blunt cutting edge, the plate can be simply further rotated (up to twelve times usable)
  • Indexable inserts Ø 10 mm


.
  • ISO designation RD X 1003 D52/R5
  • Indexable inserts 10 mm
  • Mounting shaft BT 20
  • Number of cutting edges 5
  • Outer diameter 52 mm
  • 5 inserts RDET 1003 MOSN 8026
  • Hexalobular socket M6

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Drilling-milling machine OPTImill MH 22V Drilling-milling machine OPTImill MH 22V - 0

Drilling-milling machine OPTImill MH 22V

Optimum

€2.827,77 EUR
Drilling-milling machine OPTImill MH 22VD Drilling-milling machine OPTImill MH 22VD - 0

Drilling-milling machine OPTImill MH 22VD

Optimum

€3.737,97 EUR
Enquire

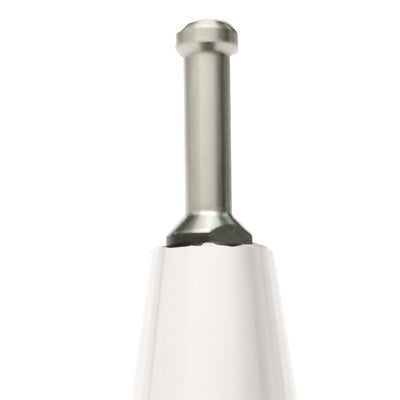

Pull stud BT 20 Pull stud BT 20 - 0
