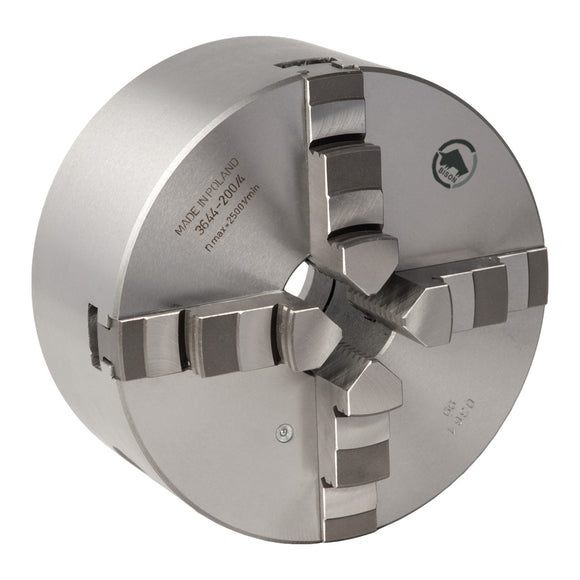

Four-jaw lathe chuck cast BISON Ø 250 mm DIN 6350 A2-5

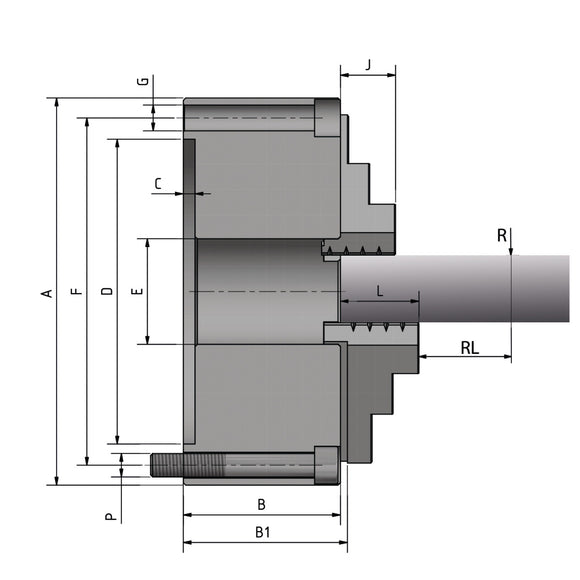

• B1 79.8 mm
• Bore spacing F 176 mm
• Centering depth C 4 mm
• Centering diameter D H7 160 mm
• Chuck diameter A 250 mm
• Culvert E 55 mm
• Height without jaws B 75 mm
• Jaw width J 29 mm
• L 45 mm
• Mounting thread G 6 x M10
• Net weight 24,5 kg
• Rotation Speed 2500 min¯¹

• Chuck key
• Hard one-piece internal chuck jaws
• Hard one-piece external chuck jaws
