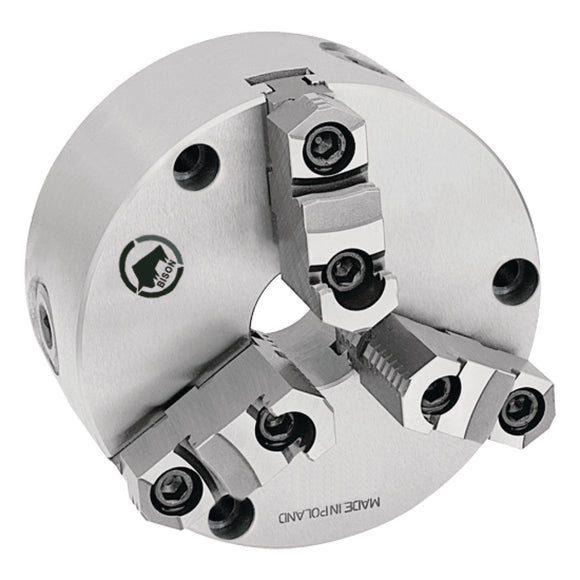

Three-jaw lathe chuck cast BISON Ø 125 mm DIN 6350 A2-3

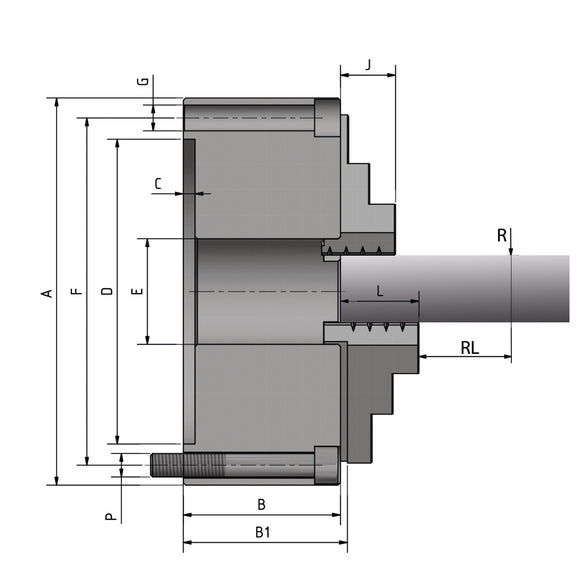

• B1 60.8 mm
• Bore spacing F 108 mm
• Centering depth C 4 mm
• Centering diameter D 95 mm
• Chuck diameter A 125 mm
• Culvert E 32 mm
• Height without jaws B 56 mm
• Jaw width J 20 mm
• L 40 mm
• Mounting thread G 3 x M8
• Net weight 4 kg
• Rotation Speed 4000 min¯¹

• Chuck key
• Hard one-piece internal chuck jaws
• Hard one-piece external chuck jaws
