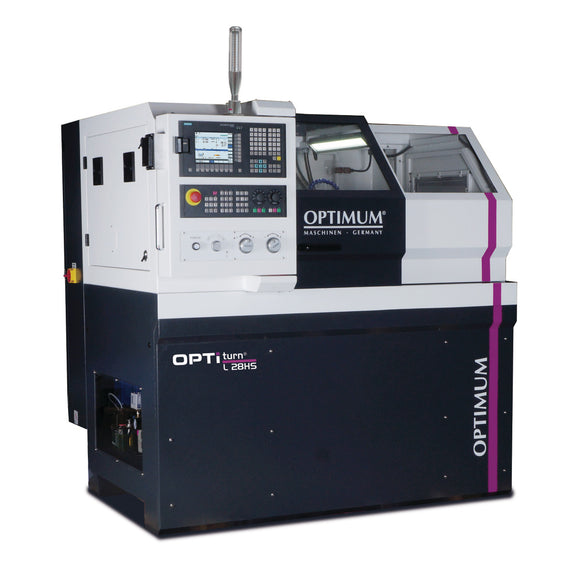

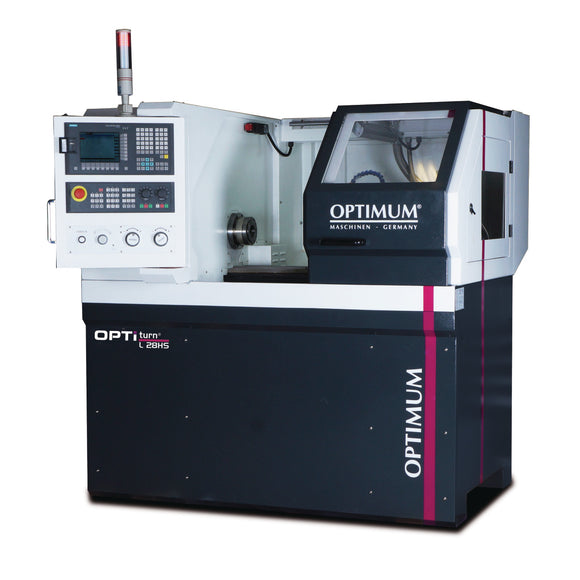

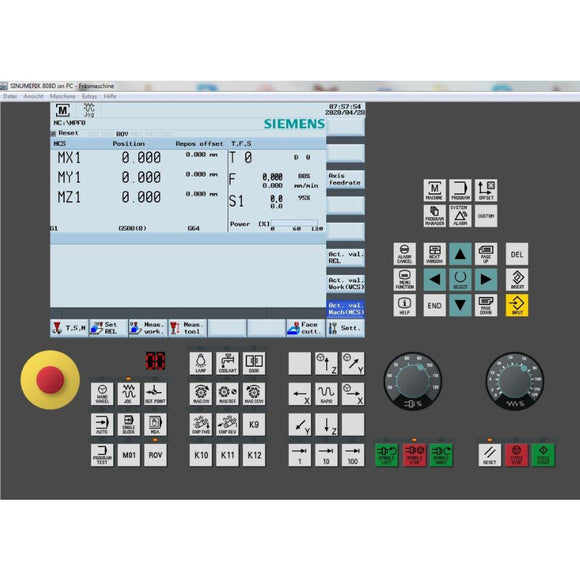

CNC-controlled flatbed lathe OPTIturn L 28HS SINUMERIK 808D ADVANCED

• 40 – 4000 min¯¹
• Bed width 180 mm

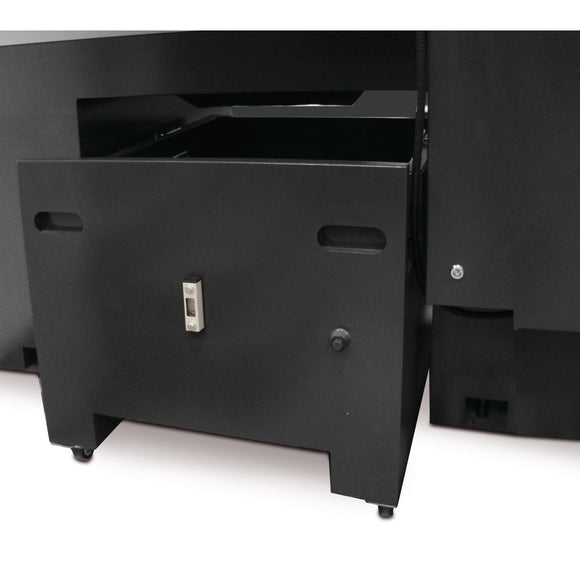

• Cooling lubricant system coolant pump output 95 W
• Cooling lubricant system tank capacity 25 l
• Drive motor torque 14 nm
• Frequency 50 Hz
• Height 1955 mm
• Hydraulic system tank capacity 25 l
• Length 1655 mm
• Max. height 169 mm
• Max. width 430 mm
• Motor power 2,2 kW
• Net weight 832 kg
• Positioning accuracy ± 0.01 mm
• Repetition accuracy ± 0.01 mm
• Spindle bore 30 mm
• Spindle chuck (DIN 6350) A2-3
• Spindle taper 5C
• Supply voltage 400 V
• Swing diameter above machine bed 300 mm
• Swing diameter above planing slide 200 mm
• Tailstock chuck MK2
• Tailstock quill diameter 30 mm
• Tailstock quill stroke 120 mm

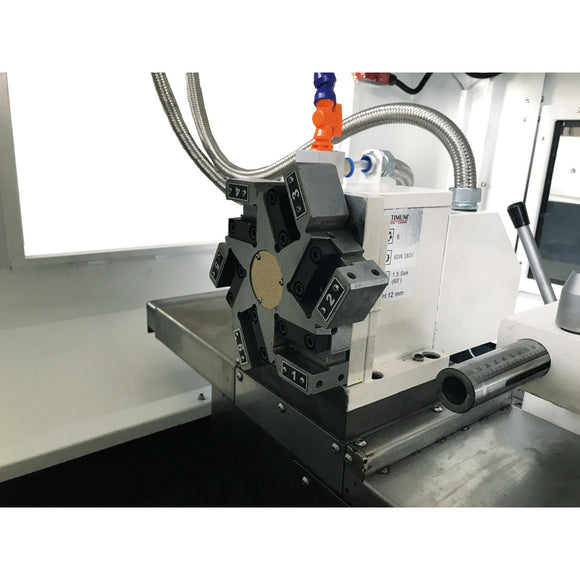

• Tool changer max. chuck diameter drilling rod 16 mm
• Tool changer max. chuck height, width square 16 mm
• Tool changer number of tool slots 6 St
• Torque at the spindle 28 nm
• Total rated value 3.75 kVA
• Travel X axis 145 mm
• Travel Z axis 465 mm
• Width 1590 mm
• X axis feed speed 10000 mm/min
• X axis motor torque 1.3 nm
• Z axis feed speed 12000 mm/min
• Z axis motor torque 2,4 Nm

• Coolant system

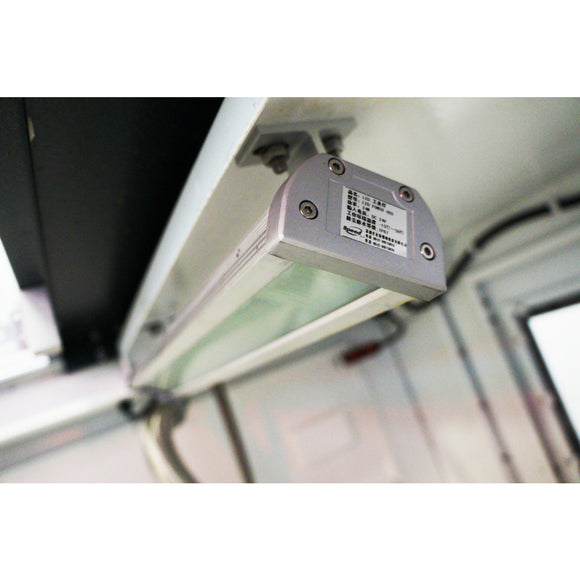

• machine lamp
• operating tool
