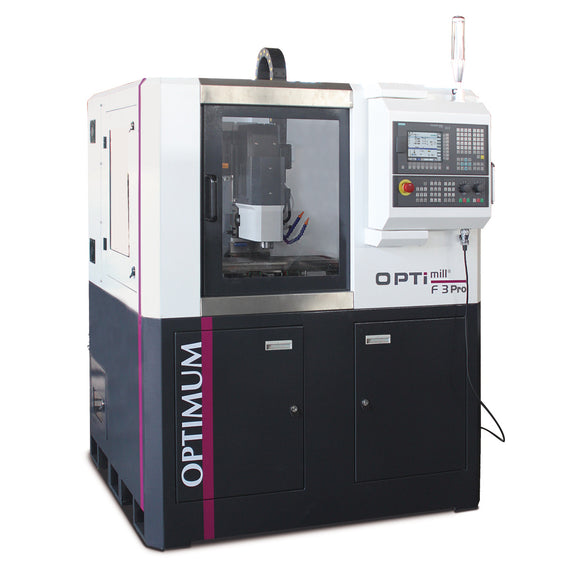

CNC milling machine OPTImill F 3 Pro.
  • Linear guide in all axes
  • Ball screw in all axes
  • Servo drive in all axes (X-, Y- and Z-axis)
  • Tool change at the touch of a button (electro-pneumatic tool clamping device)
  • Coolant system
  • Central lubrication
  • Signal light

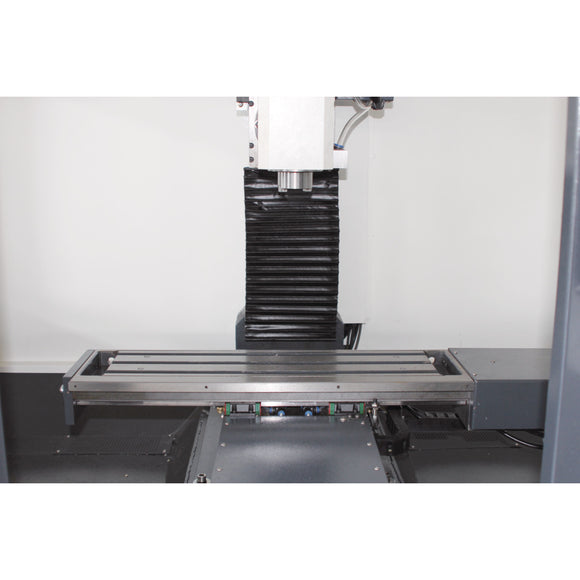

  • Massive, exact milling table with large dimensions and precise surface finish

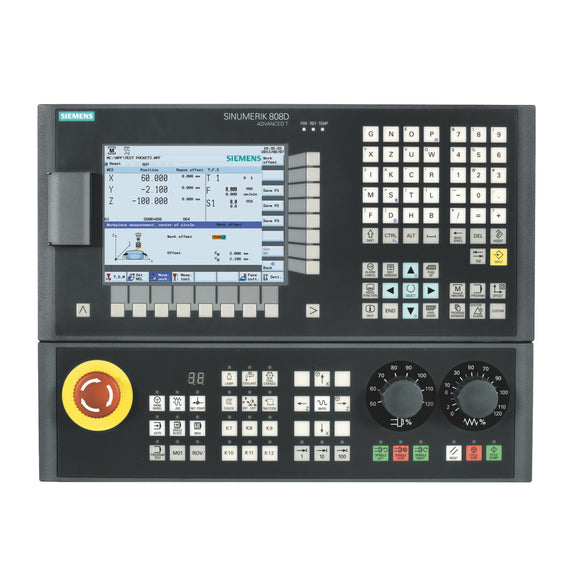

  • Pivoting control panel

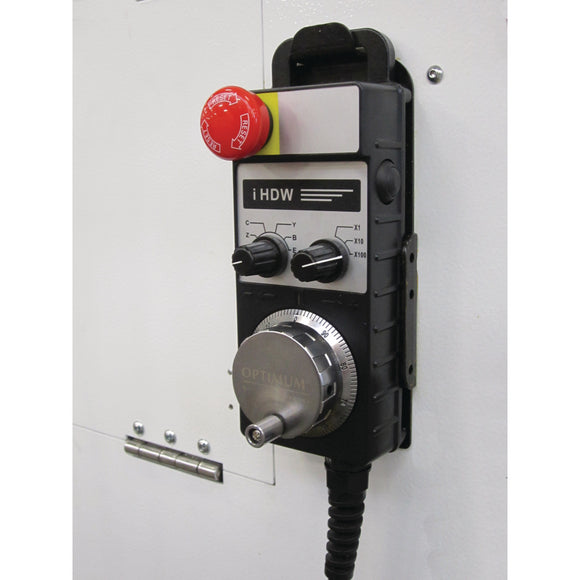

  • The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
  • Additional package SIEMENS material defect liability and free on-site service OSS


.
  • Coolant pump(s) drive power 95 W
  • Cooling lubricant system tank capacity 50 l
  • Explanation vertical spindle speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
  • Feed motor torque X axis continuous operation S1 3,5 Nm
  • Feed motor torque Y axis continuous operation S1 3,5 Nm
  • Feed motor torque Z axis continuous operation S1 6 Nm
  • Frequency 50 Hz

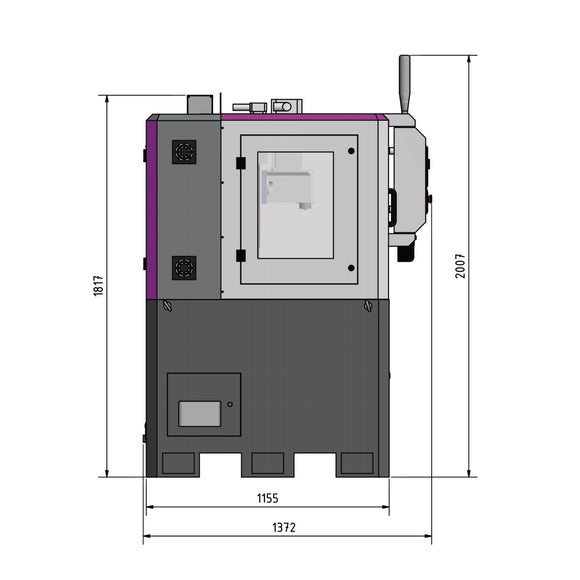

  • Height 2237 mm
  • Horizontal milling table length 460 mm
  • Horizontal milling table max. load bearing capacity 50 kg
  • Horizontal milling table reach 270 mm
  • Horizontal milling table width 200 mm

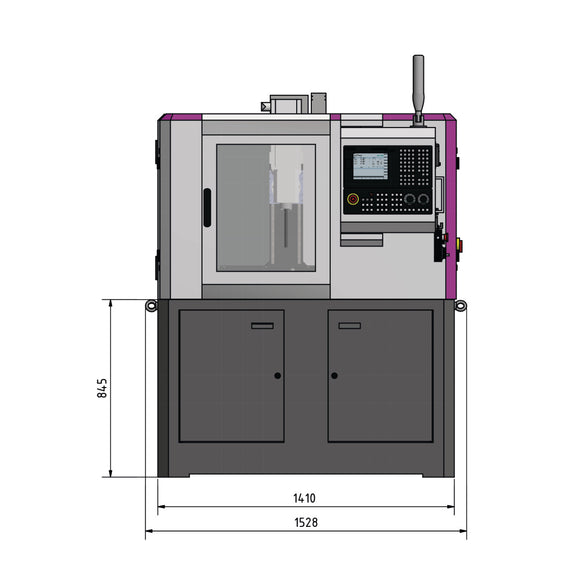

  • Length 1410 mm
  • Max. size milling head 50 mm
  • Max. size shaft milling cutter 25 mm
  • Max. tool diameter 100 mm
  • Max. tool diameter adjacent slots free 180 mm
  • Max. tool weight 6 kg
  • Net weight 720 kg
  • Number of tool slots 8
  • Positioning accuracy ± 0.02 mm
  • Repetition accuracy ± 0.01 mm
  • Supply voltage 400 V
  • Tool change time chip to chip (C to C) 6 s
  • Total rated value 4.5 kVA
  • Travel X axis automatic 360 mm
  • Travel Y axis automatic 170 mm
  • Travel Z axis automatic 250 mm
  • Vertical spindle drive motor output continuous operation S1 1,5 kW
  • Vertical spindle speed 6000 min¯¹
  • Vertical spindle spindle chuck ISO 30 / BT 30 x 45°
  • Vertical spindle torque drive motor continuous operation S1 9,5 Nm
  • Width 1522 mm
  • X axis feed speed 15 m/min
  • Y axis feed speed 15 m/min
  • Z axis feed speed 10 m/min

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

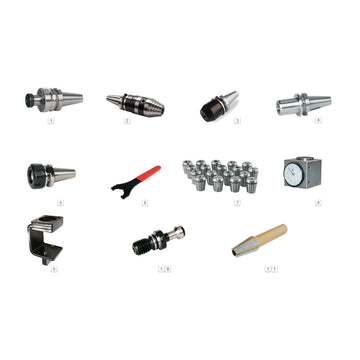

Starter kit BT 30 Starter kit BT 30 - 0
