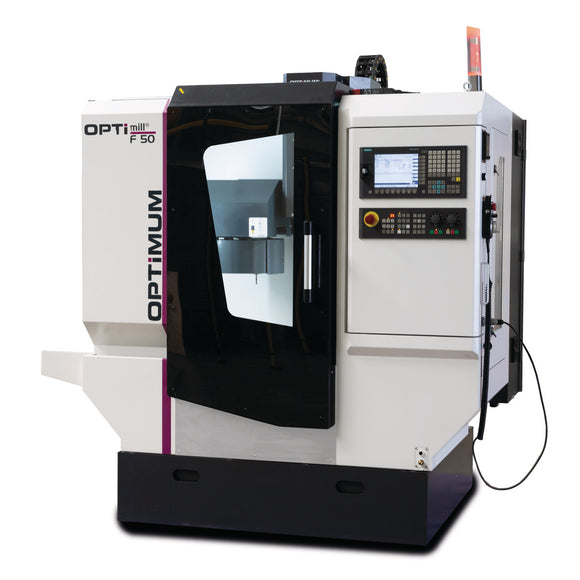

CNC milling machine OPTImill F 50.
The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines.

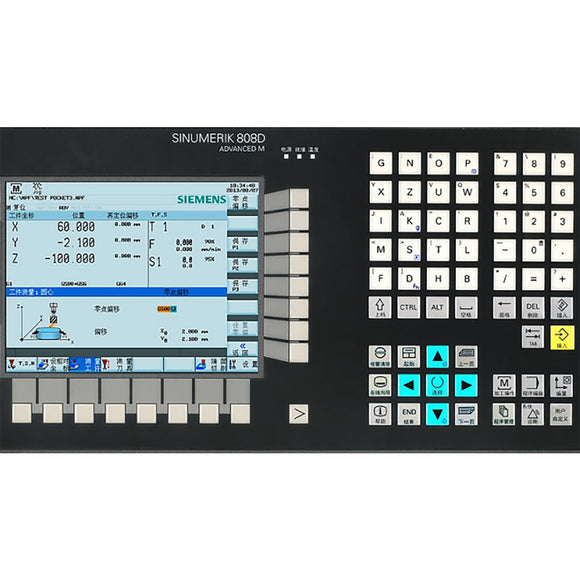

  • Thanks to its technology-specific features, the SINUMERIK 808D ADVANCED control is perfectly pre-configured for milling. Thanks to the hardware and software extensions, the SINUMERIK 808D ADVANCED also offers sufficient performance for simple milling functions for mold and tool making.
    • SINUMERIK 808D on PC
    • Control-identical software package that further simplifies the handling of the machine tool. Download free of charge at and robustThanks to
        a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments


    User-friendly
    • Technology-specific keyboard layout
    • Hard keys with protective membrane
    Process-safe
    • LED tool number display
    • MCP with rotary switch for feed and spindle override
    Communicative
    • RJ45 Ethernet on the rear

    Complete package
    • RJ45 Ethernet port
    • Prepared for remote maintenance
    • AST function; enables simple optimization for higher dynamic and accuracy requirements
    • Absolute encoder / no reference run required
    • Higher accuracy
    Control system
    • 8. 4" LCD color display with 800 x 600 resolution
    Additional package SIEMENS OSS
    • 12 months; article no.
    • 36 months; article no.
    • Coolant pump(s) drive power 0,45 kW
    • Cooling lubricant system tank capacity 70 l
    • Feed motor torque X axis continuous operation S1 3,5 Nm
    • Feed motor torque Y axis continuous operation S1 6 Nm
    • Feed motor torque Z axis continuous operation S1 6 Nm
    • Frequency 50 Hz
    • Height 1980 mm
    • Horizontal milling table length 690 mm
    • Horizontal milling table max. load bearing capacity 150 kg
    • Horizontal milling table width 225 mm
    • Length 2030 mm
    • Max. distance spindle to column 280 mm
    • Max. tool diameter 100 mm
    • Max. tool length 200 mm
    • Max. tool weight 6 kg
    • Min. distance spindle to column 280 mm
    • Net weight 1423 kg

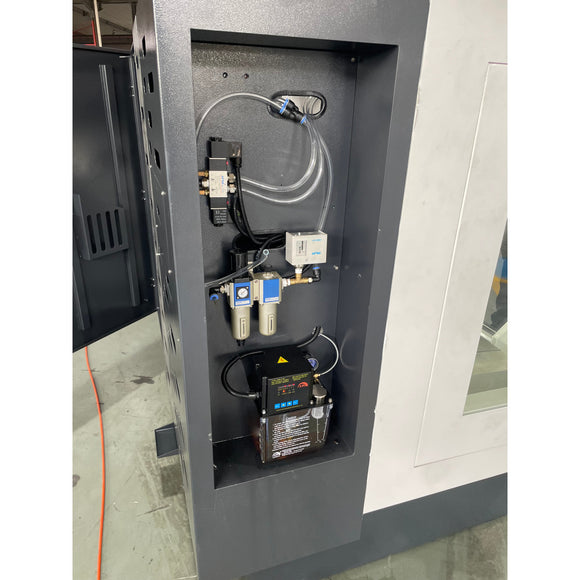

    • Pneumatic connection operating pressure 6 bar
    • Supply voltage 400 V

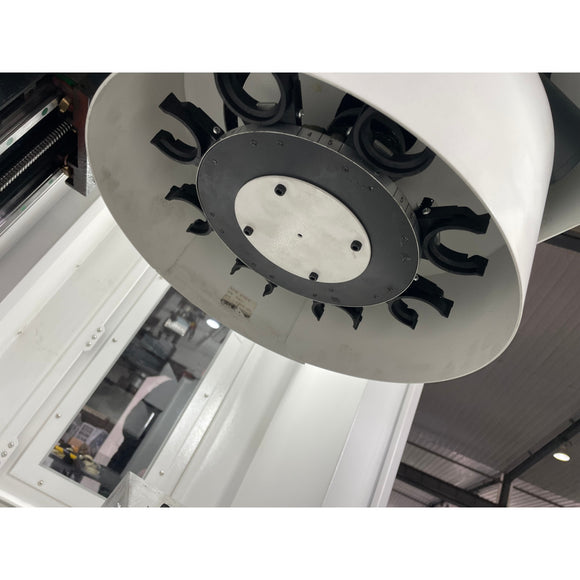

    • Tool change time tool to tool (T to T) 7 s
    • Total rated value 10 kVA
    • Travel X axis automatic 330 mm
    • Travel Y axis automatic 220 mm
    • Travel Z axis automatic 320 mm
    • Vertical spindle drive motor output continuous operation S1 3,7 kW
    • Vertical spindle speed 10000 min¯¹
    • Vertical spindle spindle chuck BT 30
    • Vertical spindle torque drive motor continuous operation S1 24 Nm
    • Width 1600 mm
    • X axis feed speed 15 m/min
    • Y axis feed speed 15 m/min
    • Z axis feed speed 15 m/min

    Add content using the options to the left

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.

    Workplace mat 1840 x 940 mm Workplace mat 1840 x 940 mm - 0

    Workplace mat 1840 x 940 mm

    Unicraft

    €375,15 EUR
    Enquire

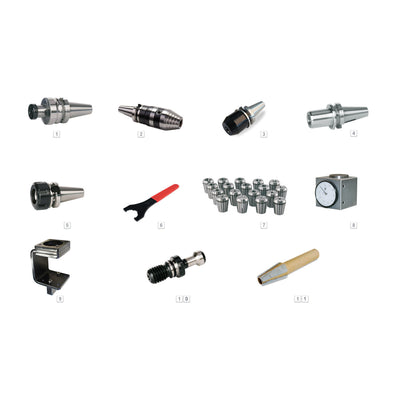

    Starter kit BT 30 Starter kit BT 30 - 0
