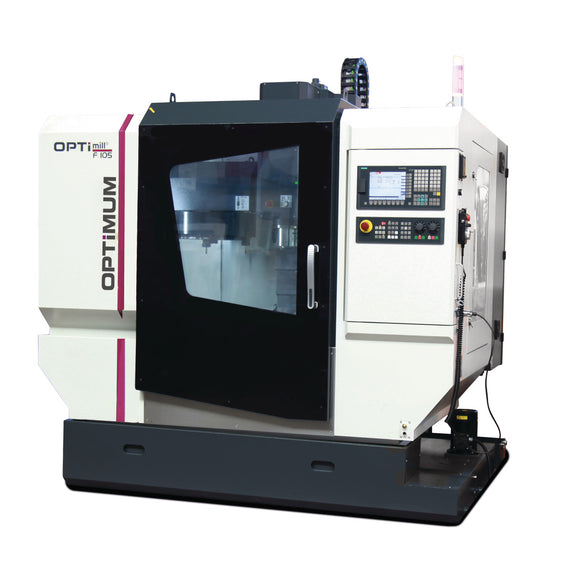

CNC milling machine OPTImill F 105 Sinumerik 808D ADVANCED.
  • Robust design

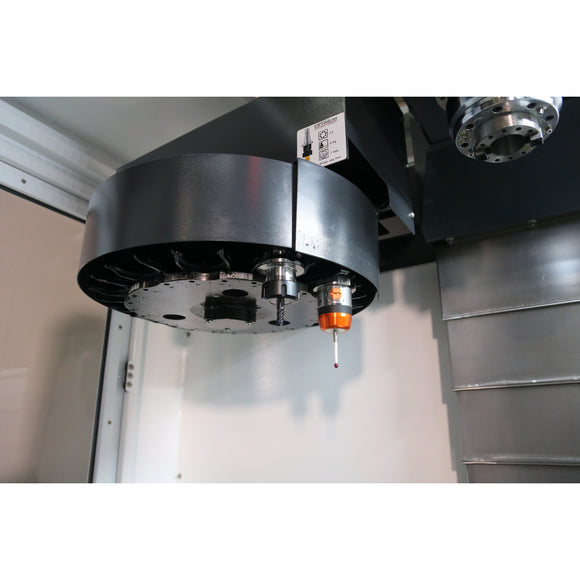

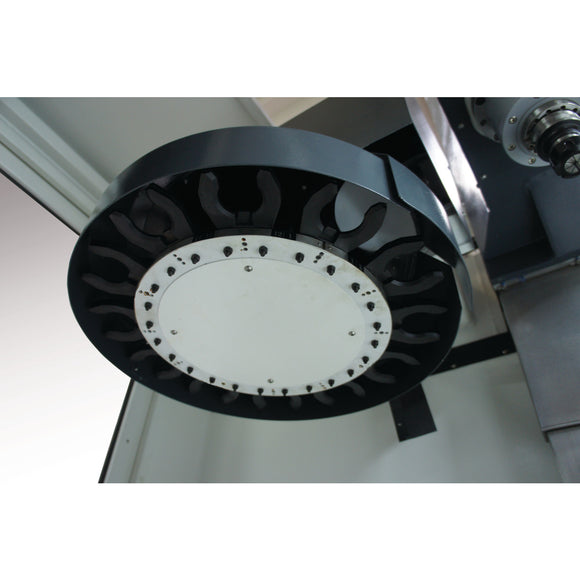

  • Carousel tool changer with 12 tool slots

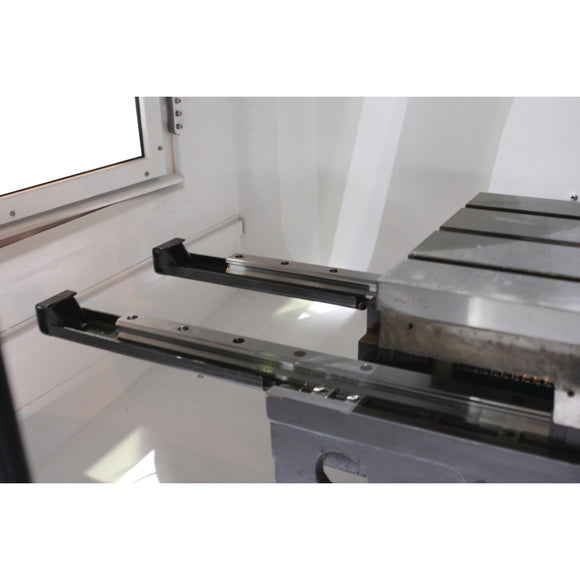

  • All linear guides with stainless steel covers

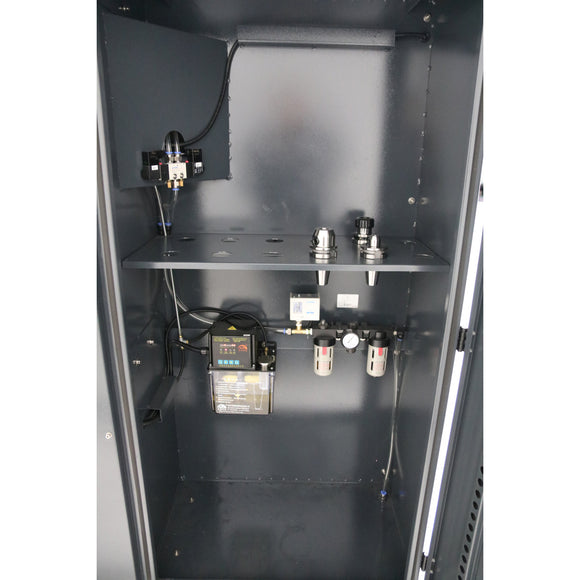

  • Automatic central lubrication

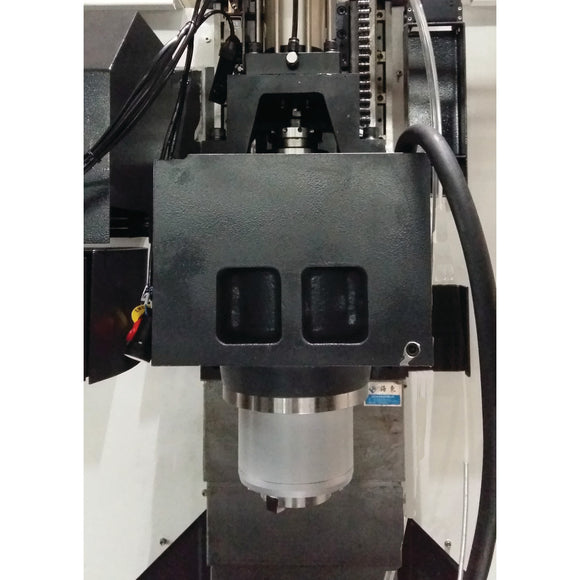

  • Siemens main spindle motor

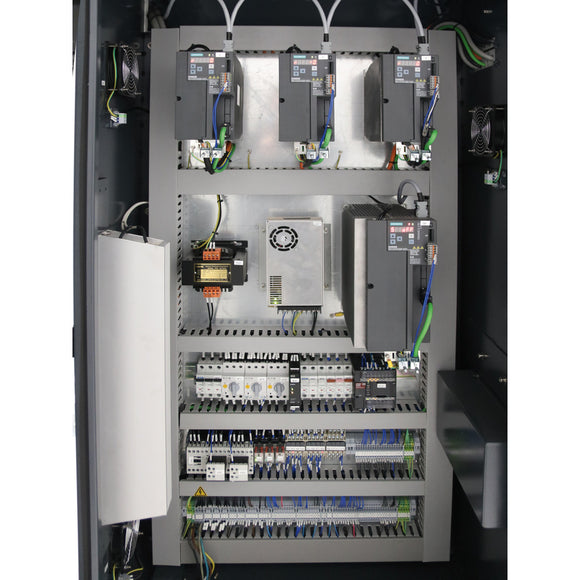

  • Servo drive from SIEMENS in all axes (closed loop)
  • Max. Spindle speed 10,000 rpm
  • Machine lamp in working area

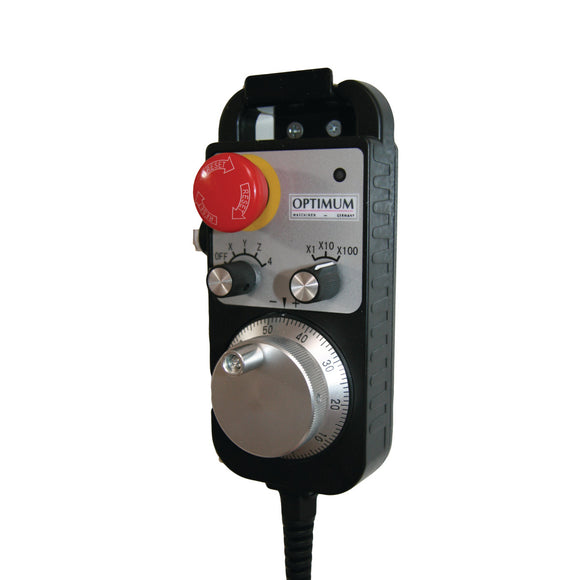

  • Portable, electronic handwheel with enabling button and emergency stop percussion switch. Facilitates the retraction of programs considerably
  • Coolant system with 120 liters coolant tank
  • Tool change is automatic or by push of a button (electro-pneumatic tool clamping device)
  • Massive, exact milling table, large dimensioned and Precise surface finish
  • Access doors are very generously designed to reduce cleaning and maintenance time to a minimum.

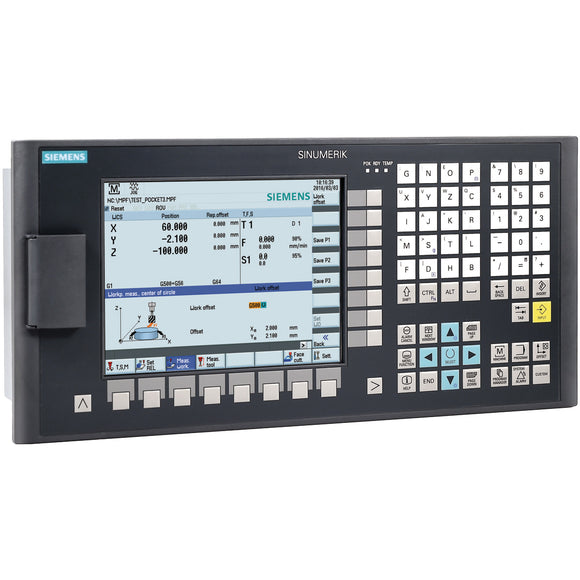

  • Software package "SINUMERIK 808D on PC" included. (Practical training software that allows workpieces to be programmed and simulated offline on the PC. ) Software can be downloaded free of charge from />
    .
  • Coolant pump(s) drive power 650 W
  • Cooling lubricant system tank capacity 120 l
  • Fast motion speed X axis 15000 mm/min
  • Fast motion speed Y axis 15000 mm/min
  • Fast motion speed Z axis 15000 mm/min
  • Feed motor torque X axis continuous operation S1 8 Nm
  • Feed motor torque Y axis continuous operation S1 8 Nm
  • Feed motor torque Z axis continuous operation S1 11 Nm
  • Frequency 50 Hz

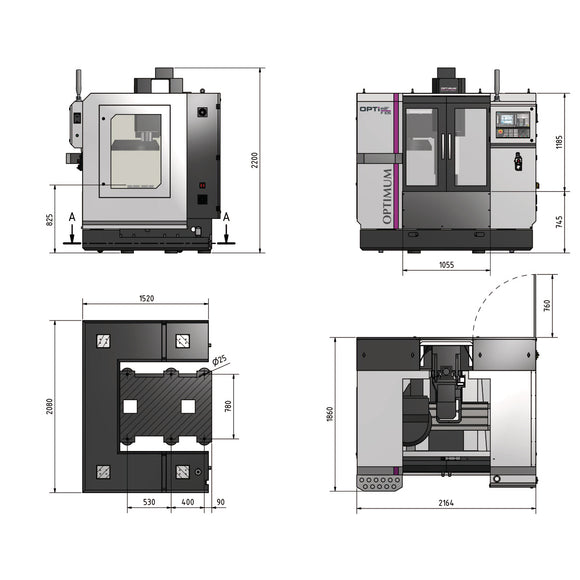

  • Height 2200 mm
  • Horizontal milling table length 800 mm
  • Horizontal milling table max. load bearing capacity 300 kg
  • Horizontal milling table width 320 mm
  • Length 2164 mm
  • Max. size milling head 70 mm
  • Max. size shaft milling cutter 35 mm
  • Max. tool diameter 70 mm
  • Max. tool length 300 mm
  • Max. tool weight 6 kg
  • Net weight 2800 kg
  • Number of tool slots 12 Tools
  • Pneumatic connection operating pressure 7 bar
  • Positioning accuracy ± 0.008 mm
  • Repetition accuracy ± 0.008 mm
  • Supply voltage 400 V
  • Tool change time tool to tool (T to T) 7 s
  • Total rated value 15 kVA
  • Travel X axis automatic 550 mm
  • Travel Y axis automatic 305 mm
  • Travel Z axis automatic 460 mm
  • Vertical spindle drive motor output continuous operation S1 7,5 kW
  • Vertical spindle speed range 10 - 10000 min¯¹
  • Vertical spindle spindle chuck BT 40
  • Vertical spindle torque drive motor continuous operation S1 48 Nm
  • Width 1860 mm
