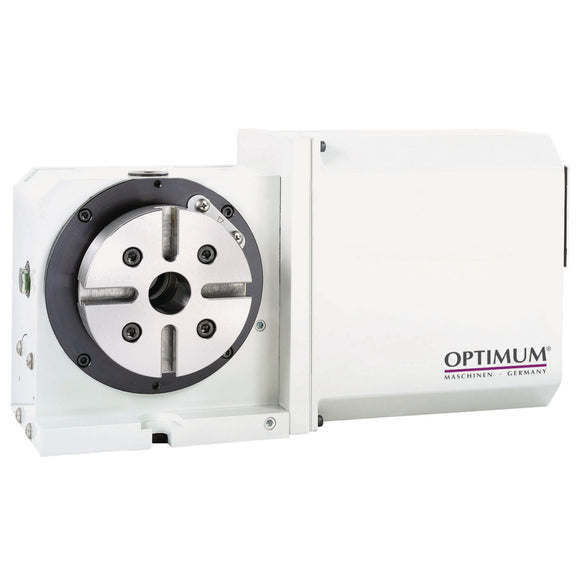

Fourth axle complete set OPTImill F 105/F 150E

• Bidirectional repeatability 118 Nm
• Centre height table vertical 110 mm
• Explanation Pneumatic clamping force with connection to compressed air and 5 bar operating pressure
• Horizontal table height 150 mm
• Max. tool weight horizontal 100 kg
• Max. tool weight vertical 50 kg
• Maximum speed 44.4 with motor 4000 min¯¹
• Minimum step size 0,001 °
• Net weight 38 kg
• Parts accuracy 60 "
• Pneumatic clamping force 118 Nm
• Slot width 14 H7
• T-slot width 12 H7
• Table diameter 120 mm
• Through hole 30 mm
• Total vertical height 190 mm
• Transmission ratio 1:60
• Unidirectional repeatability +/- 2 "
