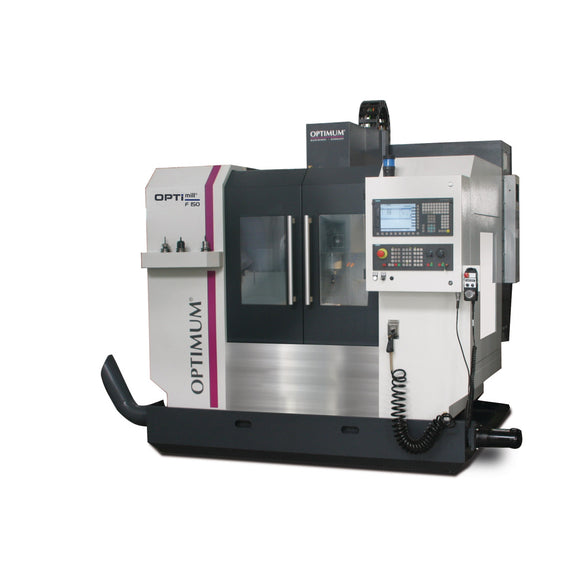

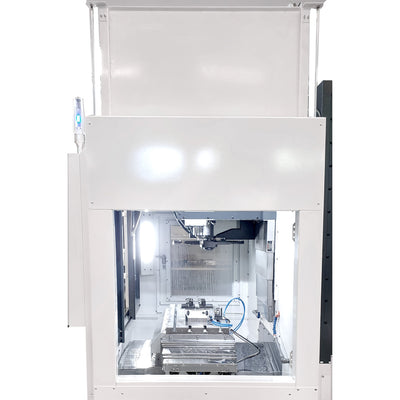

CNC milling machine OPTImill F 150HSC with 24-fold tool changer

• SIEMENS SINUMERIK 828D with PPU 290 with 15. 6-inch touch display
• Robust design
• High productivity
• High reliability
• Strongly ribbed, torsion-free machine base
• Profile rail with recirculating ball for high Rapid traverse speeds in all axes
• High-torque servo drives in all three axes
• Telescopic guideway cover on all three axes
• Solid, precise milling table with four T-slots, large dimensions and precision ground
• Portable, electronic handwheel with enabling button and emergency stop push button. Makes it much easier to run programs
• Coolant device with 210 liter coolant tank with chip flushing system and cleaning gun
• Chip conveyor in screw conveyor design
• RJ45 plug connection, USB and 230 V power connection
• Spindle oil cooler
• Closed switch cabinet with integrated heat exchanger; ensures optimum temperature and prevents dirt particles from penetrating
• Machine light in the work area

Increased productivity and precision in production

Robust hardware architecture and intelligent control algorithms as well as drive and motor technology in a class of its own ensure a maximum of dynamics and accuracy during processing.

Extended software-controlled compensation functions ensure additional quality in surface machining and high availability of the machine tool.

With SINUMERIK Operate, all machining technologies, from standard to complex, can be operated intuitively and with a uniform “look and feel”.

ADVANCED SURFACE

• Thanks to the new ADVANCED SURFACE motion control, it can also be used for tool and mold making.

TOP SURFACE

• With TOP SURFACE, Siemens is showing a further development in surface quality in mold making(optional article no.
• The function optimizes the CAD/CAM-CNC data, which reduces the dependence of the quality on the CAD/CAM calculation tolerance and improves the surface quality and dimensional accuracy.

DXF-READER

• Faster from drawing to component. Easy transfer of the CAD data into the programming by DXF-READER (optional article no.

SIEMENS SAFETY INTEGRATED - Setup with opened door

Functional safety also protects from high costs!

Machine and system safety is not only important because strict regulations have to be observed. If everything runs safely, you benefit from time savings in engineering, higher system availability and more security of investment.

TOTAL PACKAGE

• Safety Integrated
• Residual material detection and processing
• ShopMill work step programming
• Managed network drive
• 3-D simulation
• Simultaneous recording
• System software SW 28x

Multi-touch operation with PPU 290

The 15. 6" panel is robust even in harsh environments. The SINUMERIK Operate user interface is optimized for touch-sensitive operation.

User-friendly

• Capacitive 15. 6" color display in 16:9 format
• Configurable side screen
• Intuitive multi-touch operation
• Full-fledged QWERTY keyboard
• Softkey selection via touch function
• Simple data transfer through IP65-protected front interfaces (USB 2. 0, RJ45 Ethernet)
• Proximity/distance sensor for smart display control

Robust and maintenance-free

• Panel front made of die-cast magnesium with scratch-resistant glass front
• Can be operated with work gloves
• NV-RAM storage technology without backup battery
• Fanless and hard drive-free layout

Extended warranty

With the extended warranty you protect your new machine against warranty damage for a further 12 or 36 months (only to be bought with purchase of machine).

12 months; Article No.

36 months; Article No.

Standard equipment

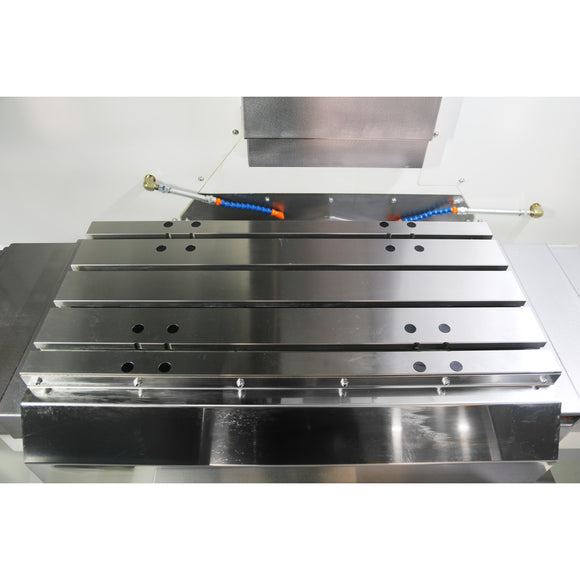

Milling table

• Solid, precise and large dimensions
• Clamping area 900 x 410 mm
• Precisely finished surface

Cast body

• Quality cast in ribbed design

Spindle

• Inline- Spindle mount SK 40 / DIN
• Spindle speed 12,000 min^-1

Linear guide

• High rapid traverse speed 36 m/min in all three axes
• Profile rails with recirculating ball system

Machine feet

• Six pieces
• Optimal alignment of the machine

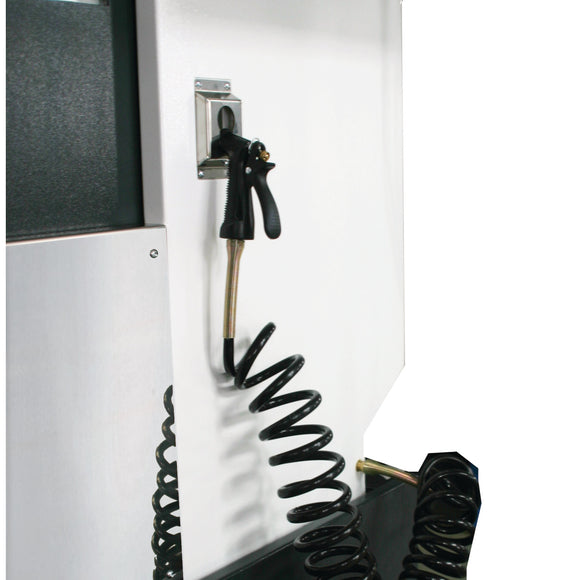

Cleaning gun

• Easy cleaning of the work area



Handwheel

• Portable
• Electronic
• Makes it much easier to run programs
• Emergency stop push button
• Enabling button

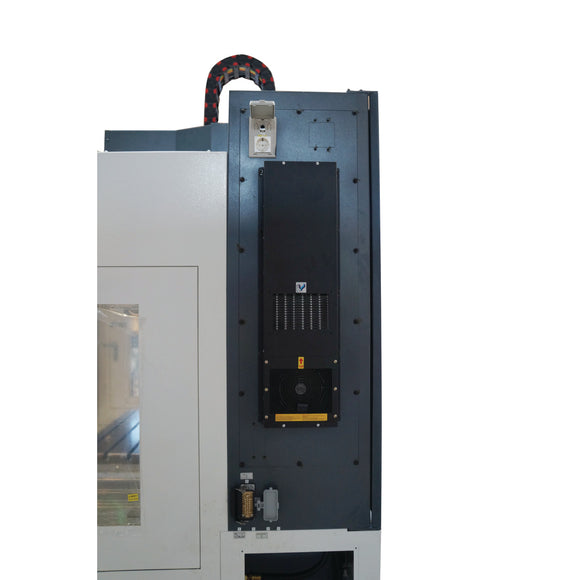

Heat exchanger

• Closed switch cabinet with intelligent cooling management
• Optimal temperature even at high ambient temperature
• Prevents dirt particles

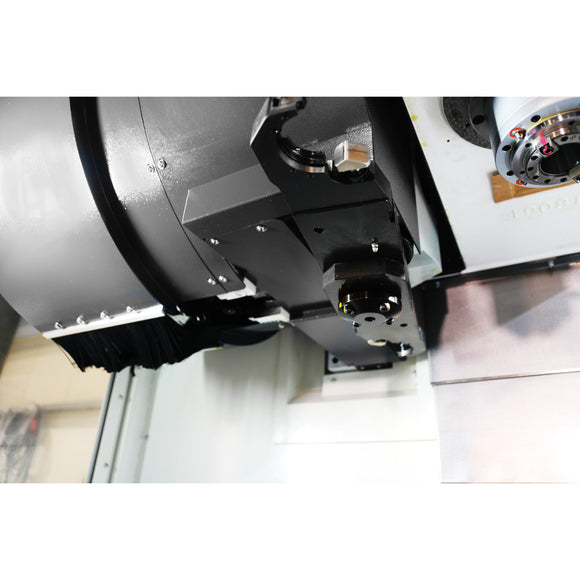

Tool change system

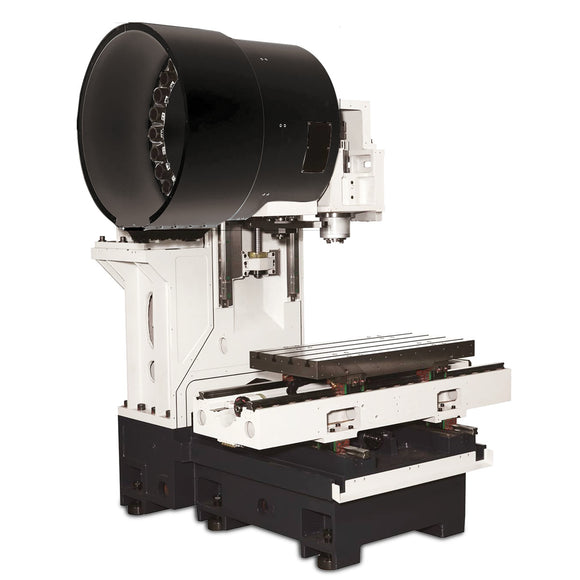

• Double arm gripper with a tool capacity of 24
• Max. tool length 300 mm
• Changes from tool to tool in 2 seconds



Chip flushing system

• Powerful chip flushing system for cleaning the work area and workpiece
• Solid, precise milling table with five T-slots, large dimensions and precision ground

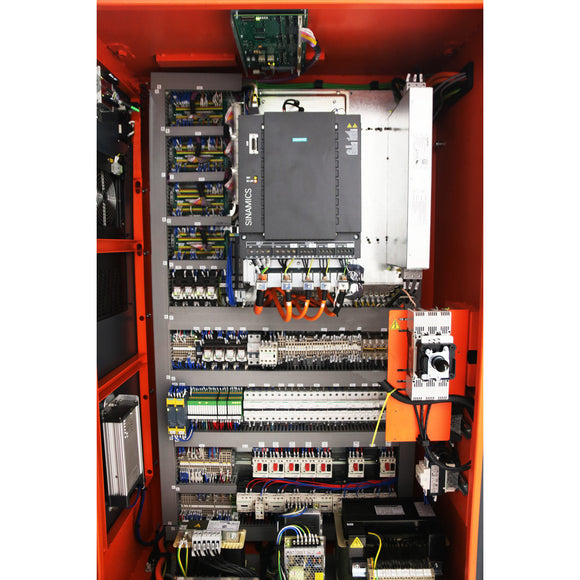

Control cabinet

• Closed, clearly arranged control cabinet with integrated heat exchanger; ensures optimum temperature
• With SIEMENS servo drive
• Standard-compliant design



Chip conveyor

• Screw design
• For efficient chip removal

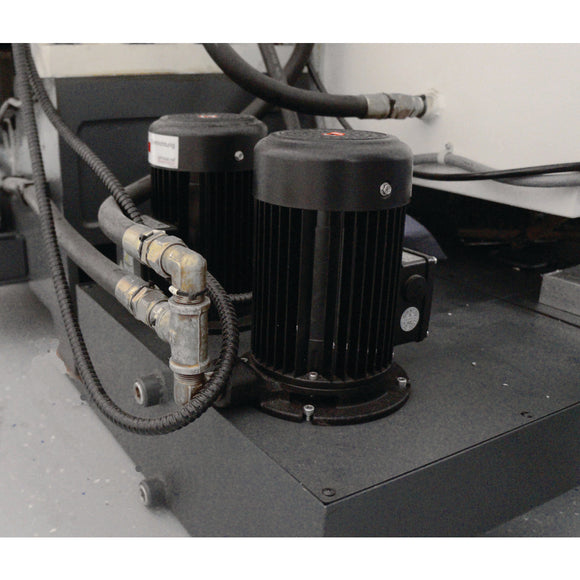

Cooling lubricant system

• Three coolant pumps with 1. 27 kW each
• Tank capacity 210 liters

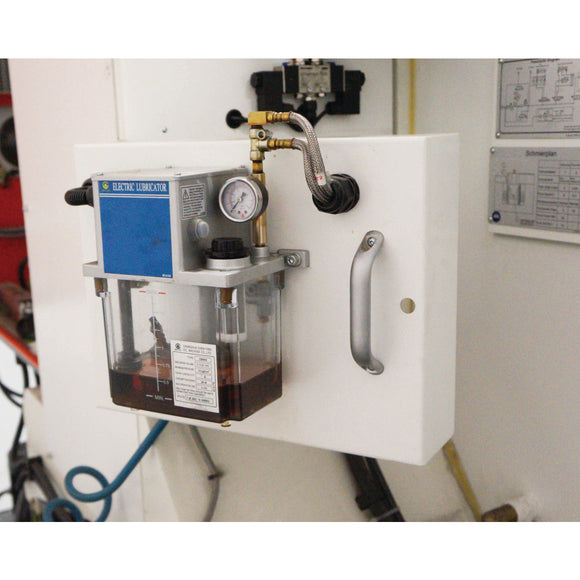

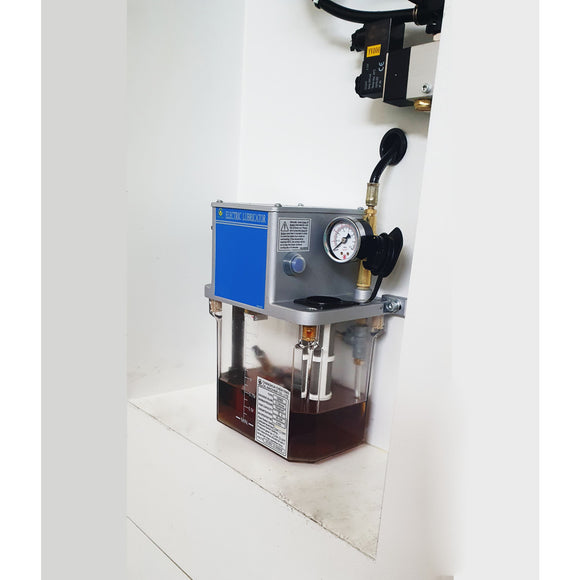

Central lubrication system

• Significantly prevents wear, repair costs and unnecessary downtime
