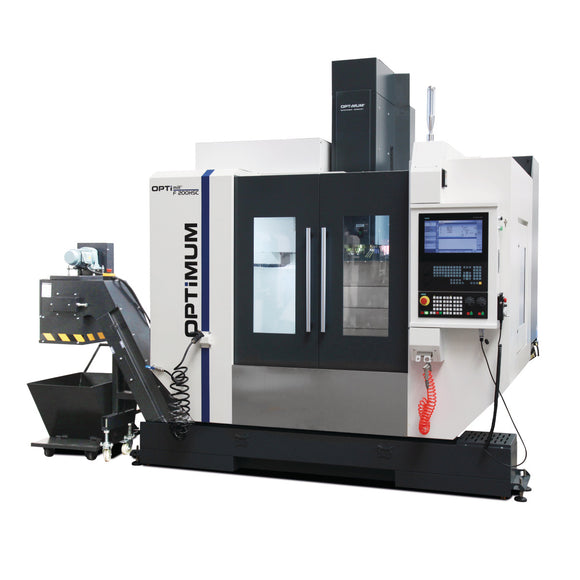

CNC milling machine OPTImill F 200HSC.
  • Heavy-duty design
  • High productivity
  • High reliability
  • Heavily ribbed, torsion-free machine base

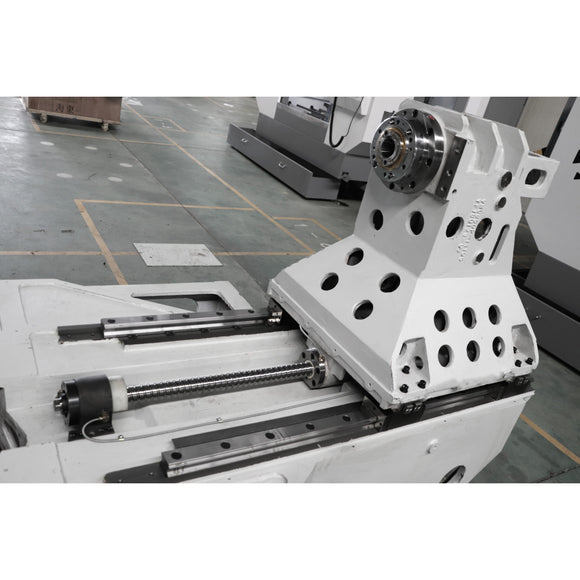

  • Profile rail with roller recirculation for high rapid traverse speeds in all axes
  • High-torque servo drives in all three axes
  • Telescopic guideway cover on all three axes

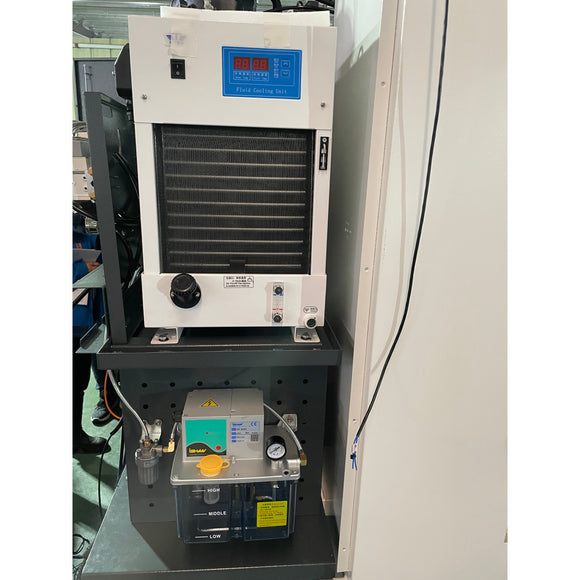

  • Automatic lubrication

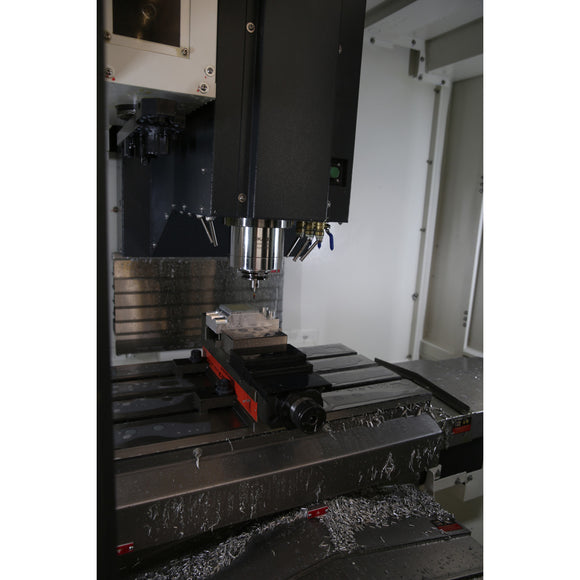

  • Massive, exact milling table with five T-slots, large dimensions and precision-ground
  • The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs

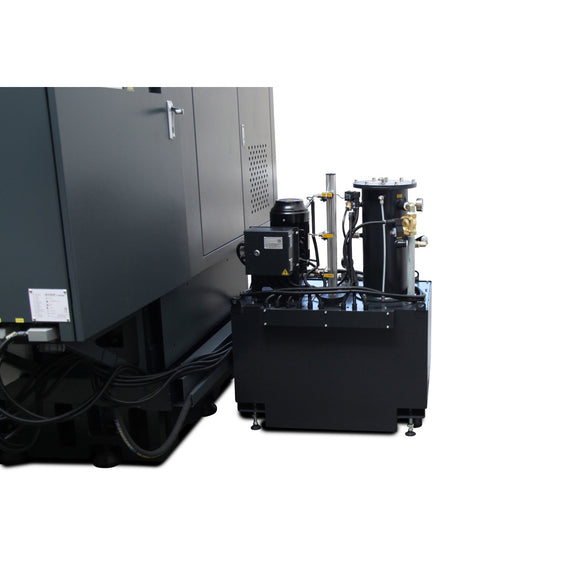

  • Coolant device with chip flushing system and cleaning gun
  • Internal spindle cooling with 20 bar

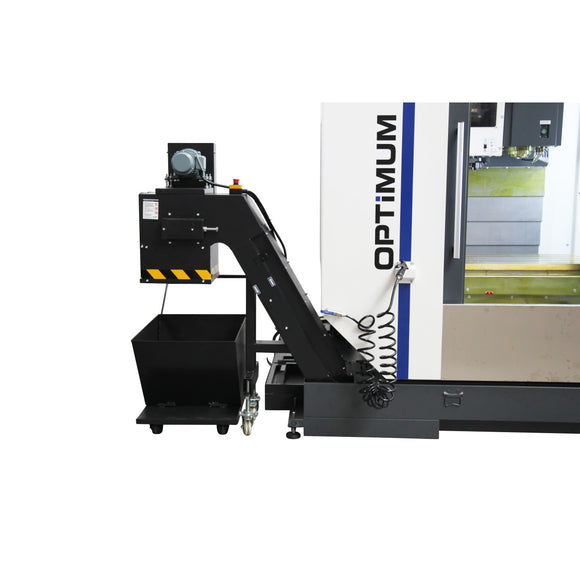

  • Belt-type chip conveyor ensures efficient chip removal
  • Chip trolley
  • RJ45 plug connection and 230 V power connection

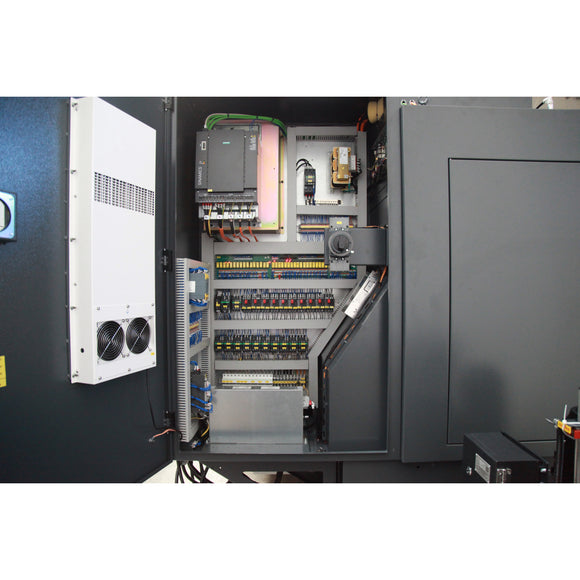

  • Closed switch cabinet with integrated heat exchanger ensures optimum temperature and prevents the ingress of dirt particles
  • Machine light in the work area
  • Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus
  • 1-.

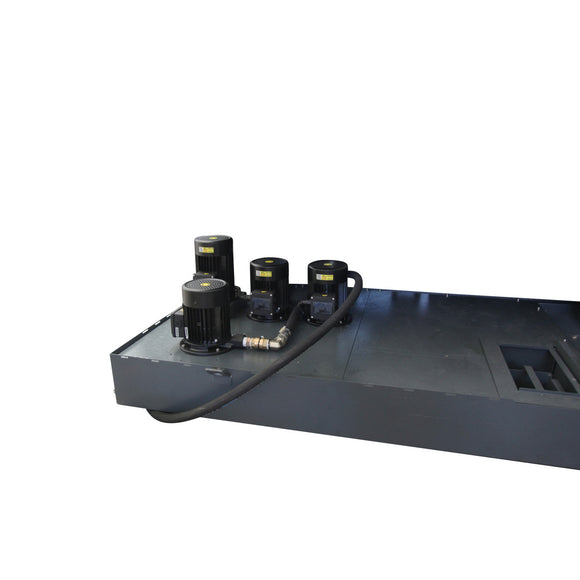

  • Coolant pump(s) drive power 1 kW
  • Cooling lubricant system flow rate 35 l/min
  • Cooling lubricant system tank capacity 200 l
  • Fast motion speed X axis 48000 mm/min
  • Fast motion speed Y axis 48000 mm/min
  • Fast motion speed Z axis 48000 mm/min
  • Feed force X-axis 5,34 kN
  • Feed force Y-axis 5,34 kN
  • Feed force Z-axis 6,68 kN
  • Feed motor torque X axis continuous operation S1 16 Nm
  • Feed motor torque Y axis continuous operation S1 16 Nm
  • Feed motor torque Z axis continuous operation S1 20 Nm
  • Frequency 50 Hz
  • Height 2860 mm
  • Horizontal milling table length 1000 mm
  • Horizontal milling table max. load bearing capacity 500 kg
  • Horizontal milling table width 500 mm
  • Length 2400 mm
  • Max. tool diameter 78 mm
  • Max. tool diameter adjacent slots free 120 mm
  • Max. tool length 300 mm
  • Max. tool weight 8 kg
  • Net weight 5500 kg
  • Number of coolant pumps 3

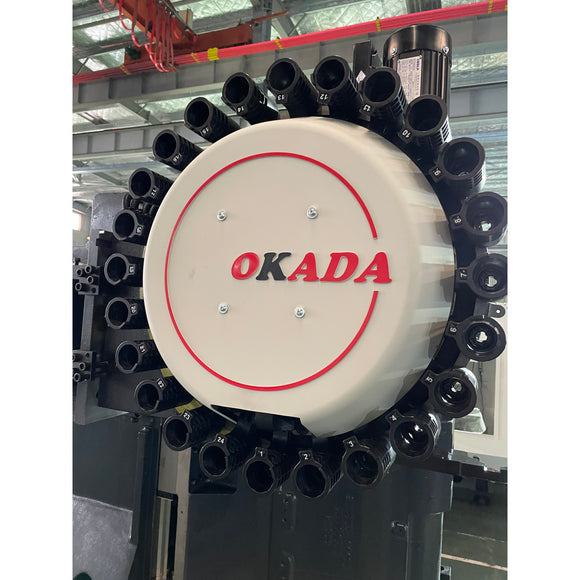

  • Number of tool slots 24
  • Pneumatic connection air consumption of the machine 6 – 8 kg/m³
  • Pneumatic connection operating pressure 6 – 8 bar
  • Positioning accuracy ± 0.005 mm
  • Pump motor cleaning gun 0.53 kW
  • Repetition accuracy ± 0.005 mm
  • Supply voltage 400 V
  • Tool change time tool to tool (T to T) 2.5 s
  • Total rated value 20 kVA
  • Travel X axis automatic 850 mm
  • Travel Y axis automatic 500 mm
  • Travel Z axis automatic 550 mm
  • Vertical spindle drive motor output continuous operation S1 10,5 kW
  • Vertical spindle speed 12000 min¯¹
  • Vertical spindle spindle chuck SK 40 / DIN 69871
  • Vertical spindle torque drive motor continuous operation S1 50 Nm
  • Width 2355 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

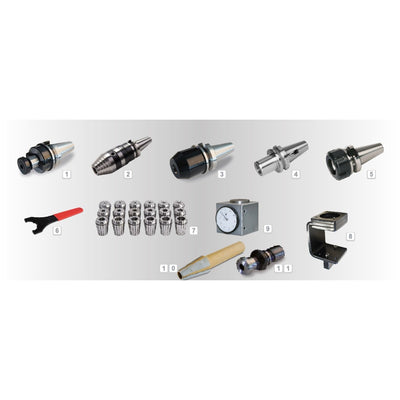

Starter kit SK40 / DIN 69871 Starter kit SK40 / DIN 69871 - 0

Starter kit SK40 / DIN 69871

Optimum

Enquire
Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

Workplace mat 3040 x 640 mm

Unicraft

€441,57 EUR
Enquire
Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire

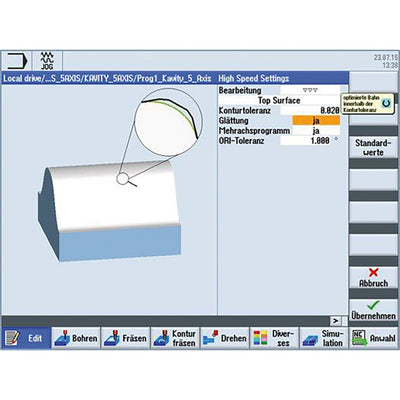

Software Top surface for SIEMENS SINUMERIK control Software Top surface for SIEMENS SINUMERIK control - 0
