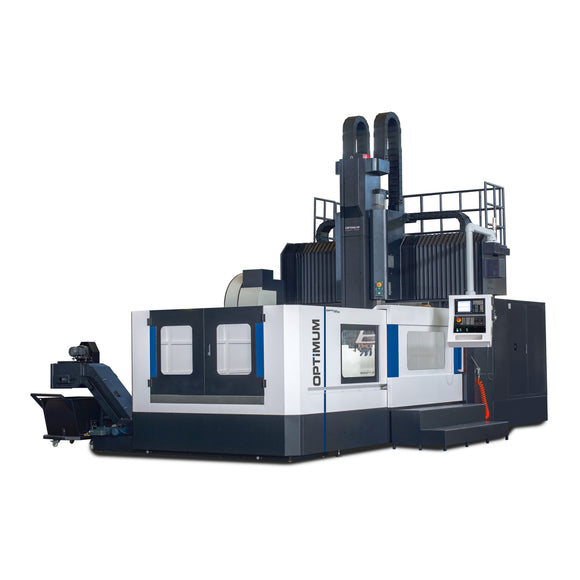

Name: CNC milling machine OPTImill FP 1325
Brand: Optimum
SKU: 3511650
Availability: OutOfStock

Description Features Delivery contents Shipping

CNC milling machine OPTImill FP.

Perfect structures and robust design guarantee maximum rigidity and stability
All main components - machine bed, worktable, machine stand, crossbeam, saddle and headstock are made of high-quality MEEHANITE® cast iron
Generously dimensioned guideways in the X, Y and Z axes
All guideways are hardened and ground (HRC50 - HRC55)

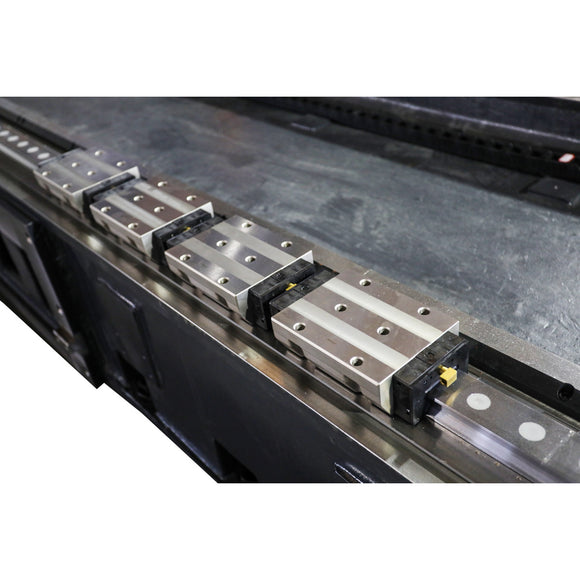

The X- and Y-axes are equipped with linear roller guides so that the axes move with maximum precision even at high speeds
Maximum machining accuracy and high damping thanks to wide, adjustable flat guides on the Z-axis for high drilling and milling performance with high spindle output torque
Hardened and precision-ground ball screws mounted in high-precision bearings in all three axes for high rapid traverse speeds

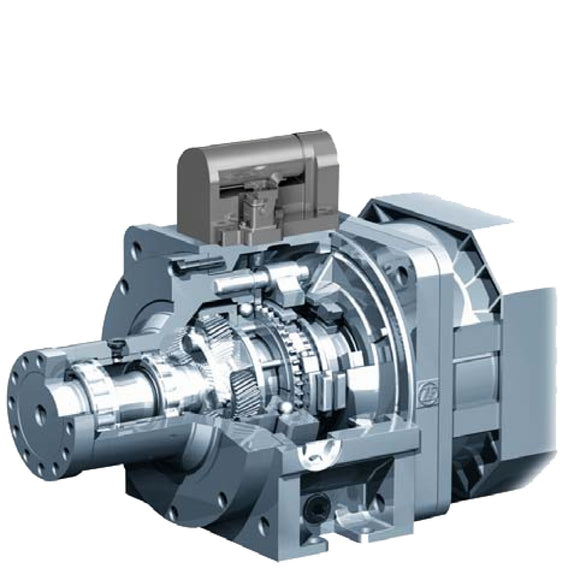

Cooling of the main spindle gearbox (gears, bearings, spindle) through oil circulation system. Reduction of thermal expansion
Operating status display (end of work light)
Axis covers
LED work lamp with alarm indicator

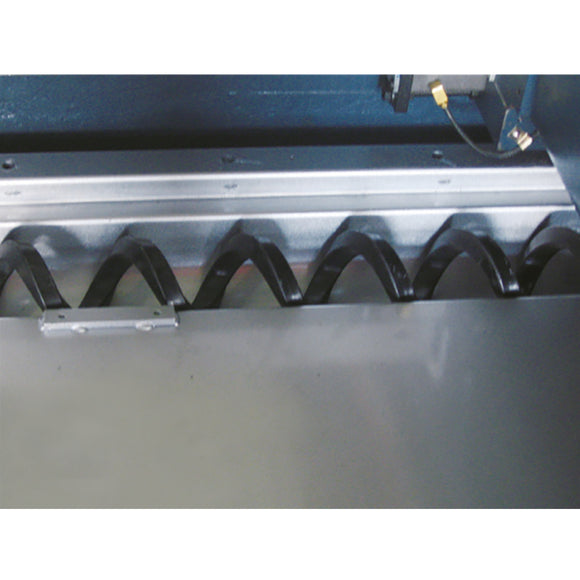

Chip conveyor belt design with chip trolley
Energy chain with tension load and cable separation
Spindle oil cooler
Heat exchanger
BT50 spindle holder with a maximum spindle speed of 6,000 min-1 for high precision
Pneumatic weight compensation of the Z-axis ensures very high reliability and stability while several axes are working simultaneously. The SCBS system requires no additional power supply or drive. This balance system achieves high speed and high machining precision
Complete machine enclosure with wide-opening doors for ergonomic workpiece handling
Automatic lubrication system with pressure control system
Separation system for lubricating oil and coolant Set-up elements

Equipment options

Tool changer

Changer driven by precision cam for fast and accurate tool positioning
The tools are transferred directly from the tool magazine to the spindle during the tool change by means of a double gripper
The tools are selected bidirectionally via the shortest route.
The tool magazine is located outside the working area
The cover on the tool magazine protects the tools from chips or coolant

Z-axis 800 mm

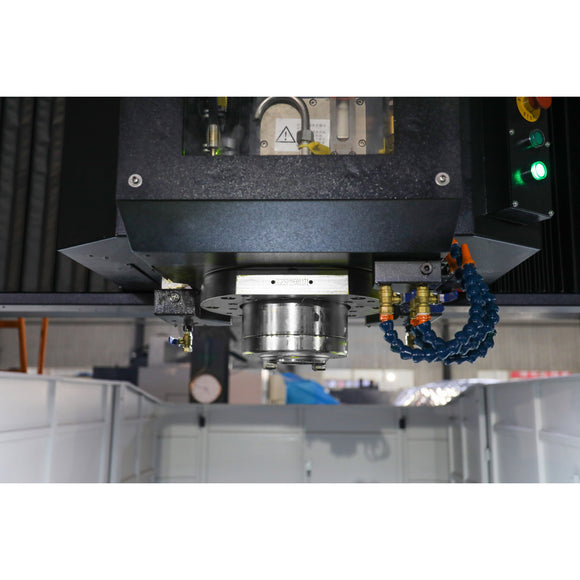

Spindle

Rigid spindle head
Automatic compensation system (SCBS) on the spindle head

Y-axis mm

Column and cross beam
made from one piece
Base body

Heavy-duty design and heavily ribbed construction

Solid one-piece box construction for maximum stability when loading very large workpieces

X-axis mm or mm

Working area
Extra wide work area

SINUMERIK 828D
High-tech for the compact class

The use of two independent tools makes 4-axis turning - balance cutting - possible.
