Fourth axle complete set OPTImill F 120X.
  • Rotary dividing table Ø 120 mm
  • three-jaw lathe chuck Ø 100 mm

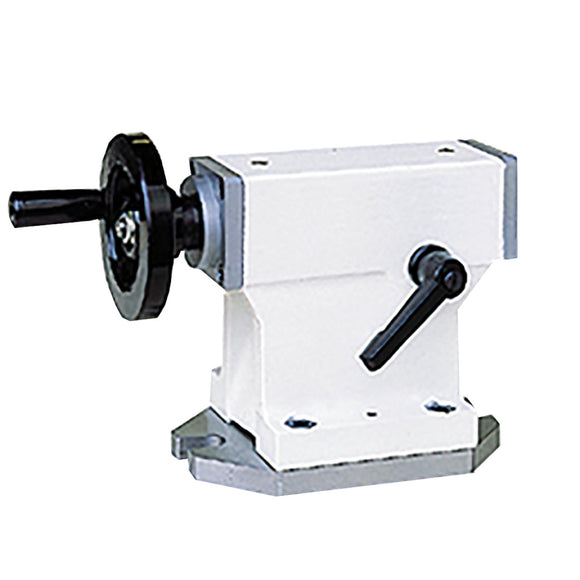

  • Tailstock
  • Mounting


.
  • Bidirectional repeatability 118 Nm
  • Centre height table vertical 110 mm
  • Explanation Pneumatic clamping force with connection to compressed air and 5 bar operating pressure
  • Horizontal table height 150 mm
  • Max. tool weight horizontal 100 kg
  • Max. tool weight vertical 50 kg
  • Maximum speed 44.4 with motor 4000 min¯¹
  • Minimum step size 0,001 °
  • Net weight 38 kg
  • Parts accuracy 60 "
  • Pneumatic clamping force 118 Nm
  • Slot width 14 H7
  • T-slot width 12 H7
  • Table diameter 120 mm
  • Through hole 30 mm
  • Total vertical height 190 mm
  • Transmission ratio 1:60
  • Unidirectional repeatability +/- 2 "
