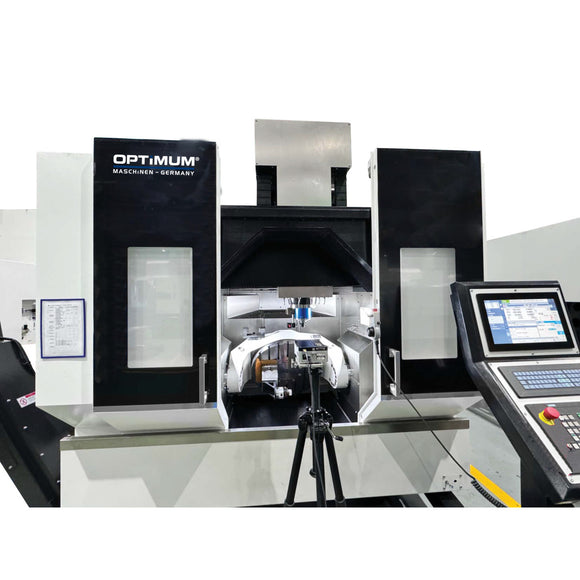

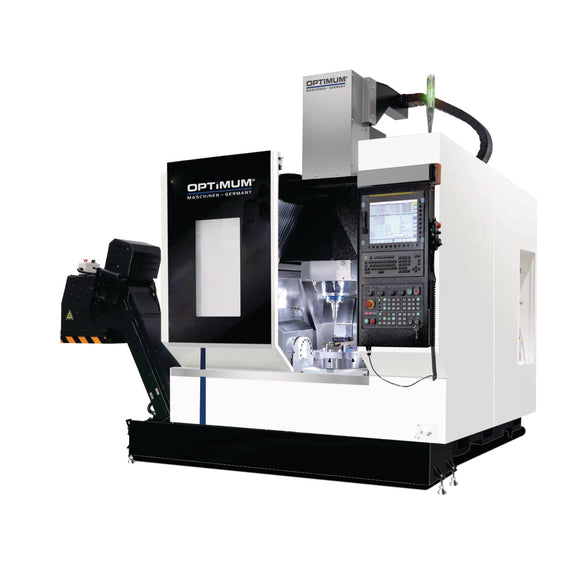

CNC milling machine OPTImill FU 450.
- Heavy-duty design
- High productivity
- Telescopic guideway cover
- Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
- Spindle mounted in P5 precision bearings and permanently lubricated
- High-torque servo drives in all five axes
- Precision linear guide
- Heidenhain glass scales for higher accuracy
- High rapid traverse speed of up to 40 m/min.
- C-axis with torque motor for maximum speed and lifetime accuracy
- A-axis with worm gear for high torque during tilting operations
- Z-axis feed motor reinforced
- The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
- Tool changer double-arm gripper with

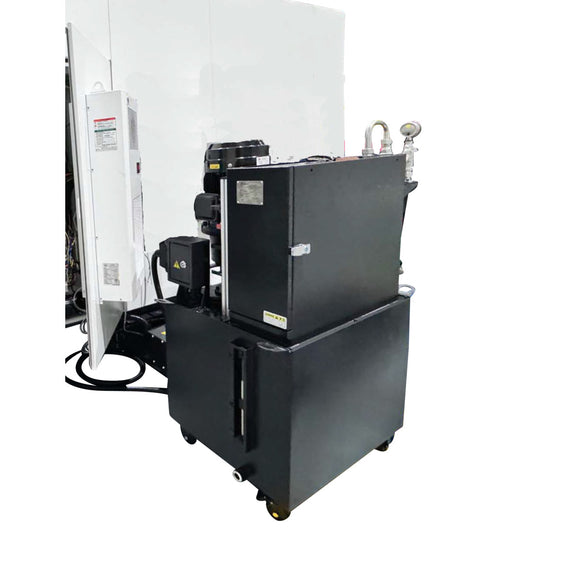

- Coolant system with 380 liter coolant tank with chip flushing system and cleaning gun

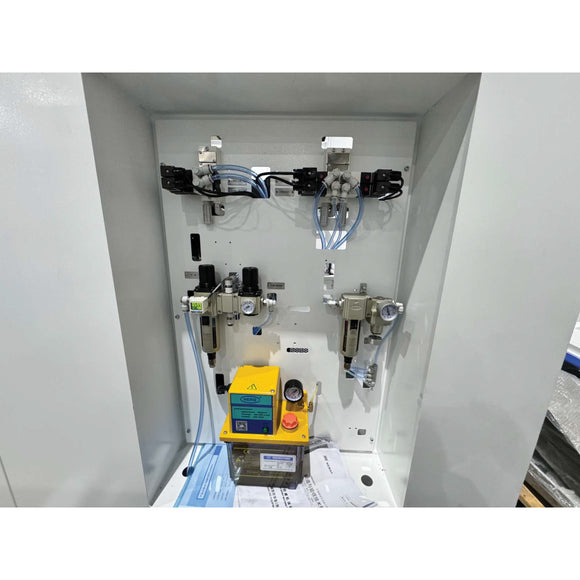

- Automatic central lubrication
- RJ45 plug connection, USB and 230 V power connection
- Additional USB interface on the control panel

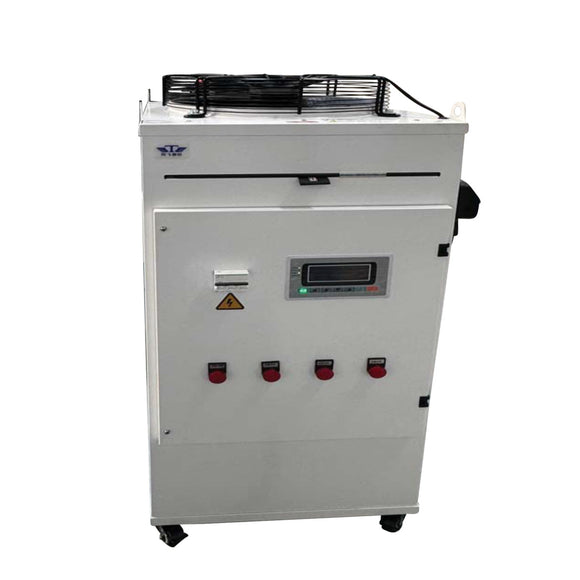

- Water circuit cooling unit for the main spindle and main spindle motor
- Chip conveyor in belt design ensures efficient chip removal
- Chip trolley
- Collision avoidance software for collision avoidance
- Internal spindle cooling 40 bar with internal tank (an extraction unit is required)
- Air conditioning
- Encoder for A and C axis
- TSC Thermal spindle compensation
- DCM Dynamic collision monitoring
- EMC (electromagnetic compatibility)
- Two-.
