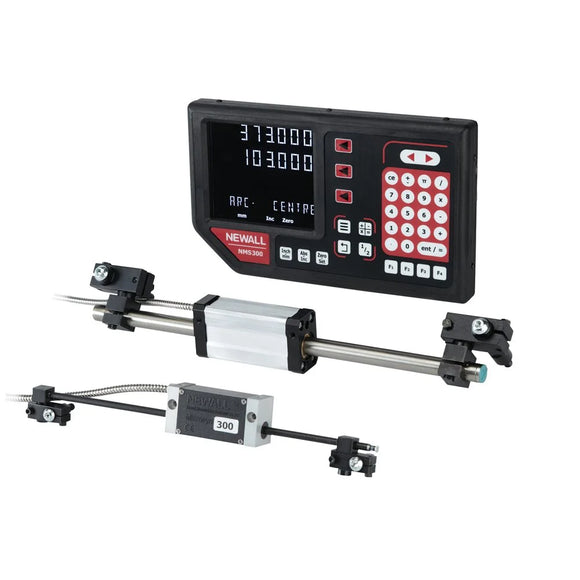

Newall NMS300 Digital Readout System

The Newall NMS300 Digital Readout System delivers reliable accuracy, excellent value and straightforward operation for lathes, milling machines and other machine tools. Designed for new installations and machine upgrades, the NMS300 is compatible with Newall’s Spherosyn300 and Microsyn300 linear encoders.

Newall’s proven inductive encoder technology is easy to install and provides consistent, dependable measurement even in demanding workshop conditions where coolant, oil, dust and vibration are present. The NMS300 helps improve machining accuracy, reduce setup time and increase operator productivity.

Contact Millennium Machinery for professional assistance in selecting the correct display, encoder type and measuring length for your machine in Ireland.

Technical Data NMS300

  • 2 or 3 axes configuration
  • Multiple language support
  • Four user-definable function keys
  • Absolute / incremental operation
  • Axis preset / zero reset
  • Inch / mm conversion
  • Linear and segmented error compensation
  • Digifind / reference mark
  • Centre-find function
  • Programmable memory — 200 positions per axis
  • Built-in calculator
  • Undo function

All NMS300 packages include everything required for a complete installation:

  • NMS300 DRO in a 2-axis or 3-axis configuration
  • Spherosyn300 and/or Microsyn300 encoder assemblies with armoured cables
  • Scale bracket kit and mounting hardware
  • Reader head mounting brackets and hardware*
  • Display mounting arm and hardware*

*Packages are available with or without the reader head mounting brackets and display mounting arm.
