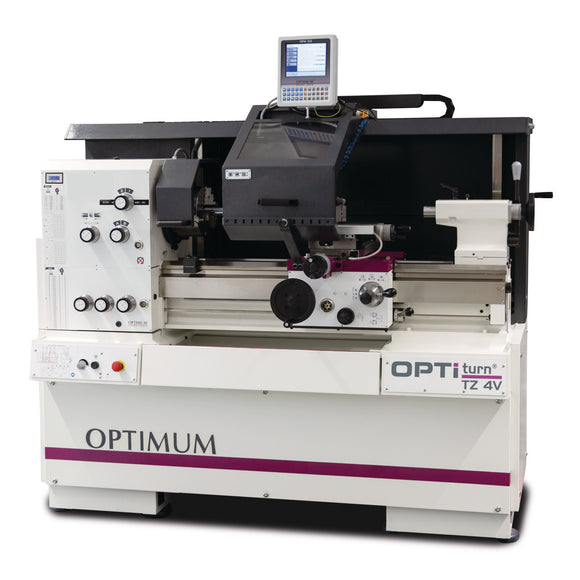

Precision Center and Turning Center Lathe OPTIturn TZ 4V

• 50 – 3000 min¯¹

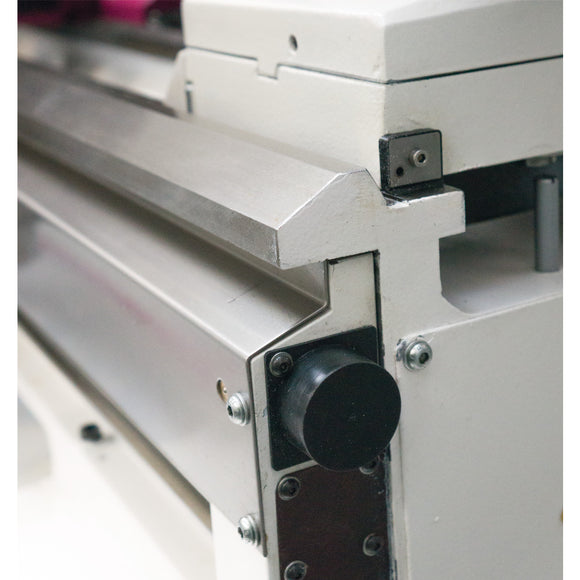

• Bed width 260 mm
• Cooling lubricant system coolant pump output 0.125 kW
• Cooling lubricant system tank capacity 20 l
• Diametrical pitch 3 – 200 Gg/π

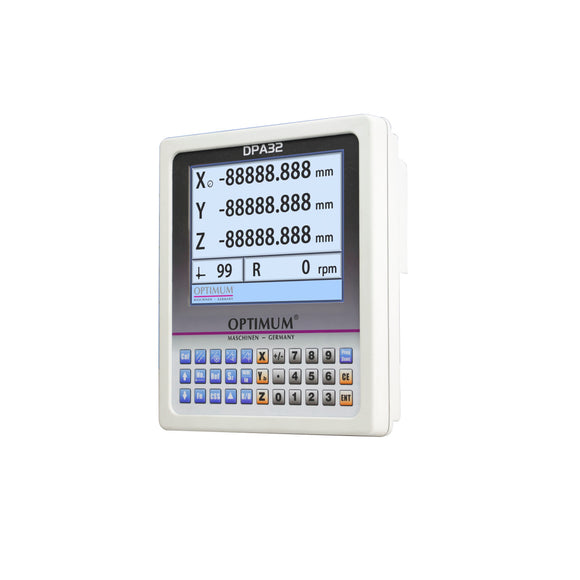

• Digital position indicator DPA 32
• Drive motor gears 2
• Duty cycle 60 %
• EMC level C3
• Flat feed range 0.0133 – 0.9321 mm/rev
• Frequency 50 Hz

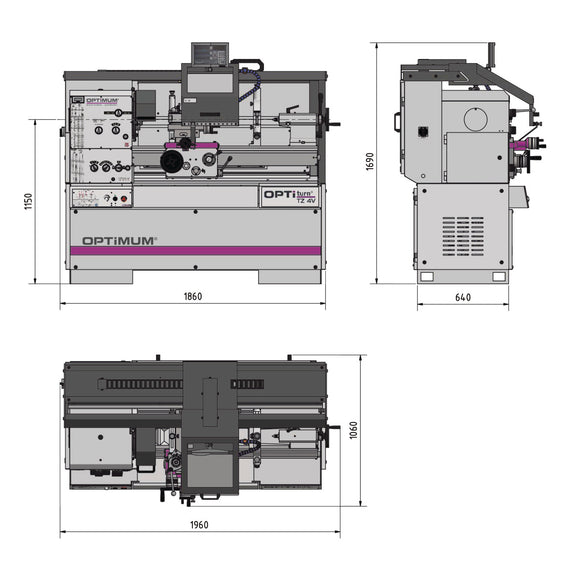

• Height 1690 mm
• Imperial pitch 80 – 1 Gg/1"
• Length 1960 mm
• Longitudinal feed range 0.0263 – 1.8416 mm/rev
• Max. height 200 mm
• Max. width 800 mm
• Metric pitch 0.2 – 14 mm/rev
• Modular thread pitch 0.1 – 7 mm/rev
• Motor power 5.5 kW
• Net weight 1250 kg
• Number of diametrical pitches 33
• Number of flat feeds 48
• Number of gears 2
• Number of imperial pitches 42
• Number of longitudinal feeds 48
• Number of metric pitches 36
• Number of modular thread pitches 44
• Operating mode S6
• Spindle bore 52 mm
• Spindle chuck DIN ISO 702-1 No. 5 Form A2
• Spindle cone MT 6
• Standard DIN EN 55011
• Supply voltage 400 V
• Swing diameter above machine bed 400 mm
• Swing diameter above planing slide 245 mm
• Tailstock chuck MK 3
• Tailstock quill diameter 50 mm
• Tailstock quill stroke 110 mm
• Travel carriage saddle 800 mm
• Travel cross slide 212 mm
• Travel upper slide 112 mm
• Width 1060 mm

• Fixed steady rest passage Ø 10 - Ø 130 mm
• Moving steady rest passage Ø 10 - Ø 100 mm
• Adapter MK6-MK3
• Non-moving centering tip MK3
• Non-moving, but temperature resistant
• Quick change steel holder SWH 5-B
• Steel holder 25x120 TypeD for square chisel 20 mm
• Initial machine filling with quality oil
• Operating tool
• Do not forget the lathe chuck
