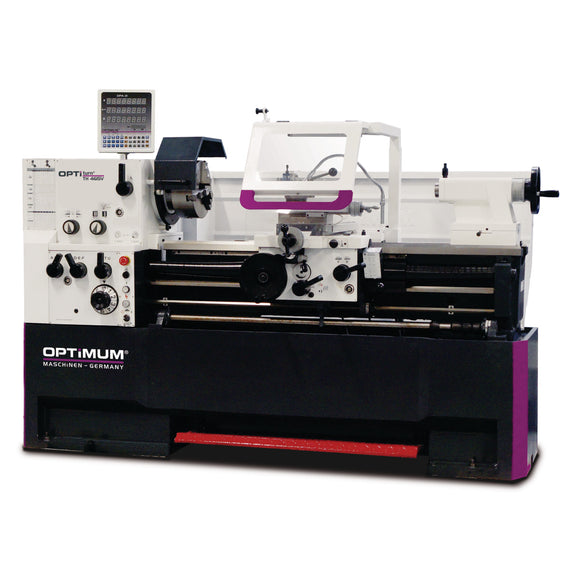

Conventional Centre Lathe OPTIturn TH 4615V

€32.705,70 EUR (€26.590,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3462125 Barcode: 4030635029950

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Conventional Centre Lathe OPTIturn TH 4615V.
  • Hardened and ground Z-axis guideway
  • Guaranteed concentricity of the spindle nose ≤ 0. 015 mm
  • Shafts, Wheels and main spindle run in an oil bath
  • Lead screw cover
  • Precisely machined slide
  • All guides can be adjusted using wedge strips
  • Mechanical longitudinal feed cut-off of the bed slide with four adjustable eccentrics
  • Right-hand/left-hand travel on the bed slideright/left rotation on the bed slide switchable via switching spindle

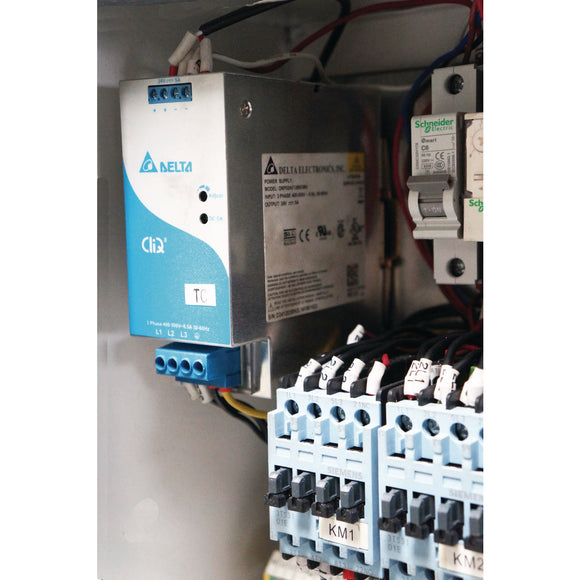

  • Two-channel safety electronics
  • Central lubrication in the bed slide
  • Adjustment range top slide ± 90°
  • Smooth-running gear wheels, hardened and ground with 2 adjustable precision tapered roller bearings
  • Switch with life cycle calculation, tested according to EN ISO
  • Large dimensioned chip guard with integrated LED machine lamp
  • Handwheels with adjustable fine scaling 0,04 / 0. 02 mm
  • Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
  • High-speed feed gearbox in closed design, gears and shafts hardened and ground, running in an oil bath in precision bearings
  • Adjustable scale of the thread gauge
  • Tailstock for taper turning adjustable ± 10 mm
  • Tailstock quill and handwheel with adjustable fine scaling 0,025 mm
  • Quick, easy and tool-free adjustment of the tailstock using a clamping lever
  • Cable routing via energy chain
  • Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
  • Coolant device with separate coolant tank with level indicator and oil separator; Easy and complete emptying and cleaning in accordance with DIN
  • Emergency stop device with foot actuation
  • Quick-change steel holder 5-.
  • 30 – 2000 min¯¹
  • Bed width 300 mm
  • Cooling lubricant system coolant pump output 125 W
  • Diametrical pitch 4 – 112 DPI

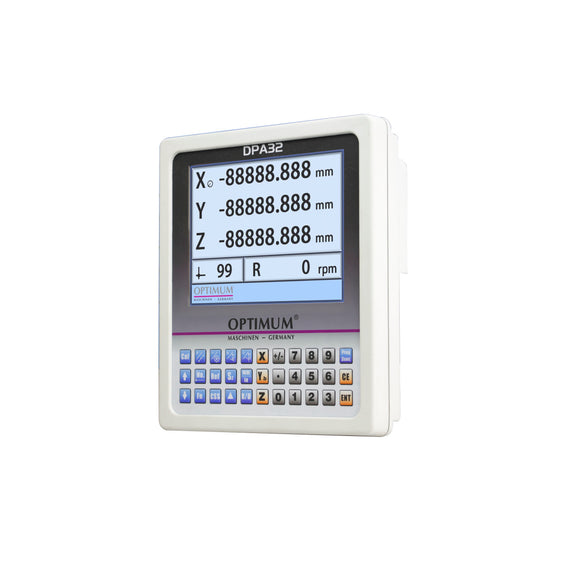

  • Digital position indicator DPA 32
  • EMC level C3
  • Flat feed range 0,014 – 0,784 mm/rev
  • Frequency 50 Hz

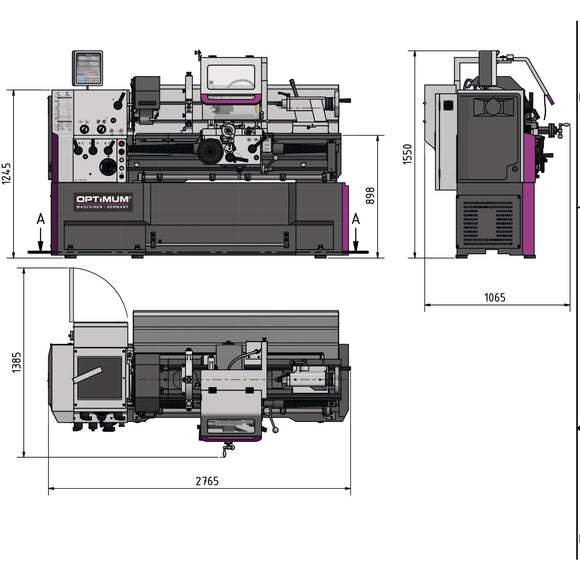

  • Height 1550 mm
  • Imperial pitch 112 – 2 Gg/1"
  • Length 2765 mm
  • Longitudinal feed range 0,031 – 1,7 mm/rev
  • Max. height 230 mm
  • Max. width 1560 mm
  • Metric pitch 0,1 – 14 mm/rev
  • Modular thread pitch 0,1 – 7 mm/rev
  • Motor power 7,5 kW
  • Net weight 2020 kg
  • Number of diametrical pitches 50
  • Number of flat feeds 42
  • Number of gears 2
  • Number of imperial pitches 41
  • Number of longitudinal feeds 42
  • Number of metric pitches 41
  • Number of modular thread pitches 34
  • Spindle bore 80 mm
  • Spindle chuck Camlock DIN ISO 702-2 No. 8
  • Spindle cone MT 7
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Swing diameter above machine bed 460 mm
  • Swing diameter above planing slide 270 mm
  • Swing diameter in bed bridge 690 mm
  • Tailstock chuck MT 4
  • Tailstock quill diameter 60 mm
  • Tailstock quill stroke 130 mm
  • Tool holder max. chuck height 25 mm
  • Total rated value 8.5 kW
  • Travel carriage saddle 1305 mm
  • Travel cross slide 285 mm
  • Travel upper slide 125 mm
  • Turning length in bed bridge 240 mm
  • Width 1065 mm
  • Fixed steady rest aperture Ø 25 - Ø 178 mm
  • Rotating steady rest aperture Ø 19 - Ø 114 mm
  • LED machine light
  • Adapter MK7-MK4
  • Non-rotating center point MK4
  • Non-rotating, but temperature-resistant center point MK4

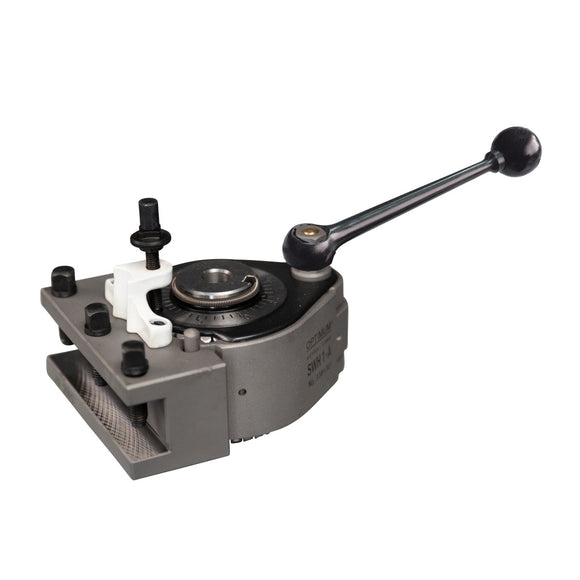

  • Quick-change steel holder 5-B
  • Steel holder 25 x 120 type D for square chisel 20 mm
  • Thread watch
  • Set of change gears
  • Initial machine filling with quality oil
  • Operating tool
