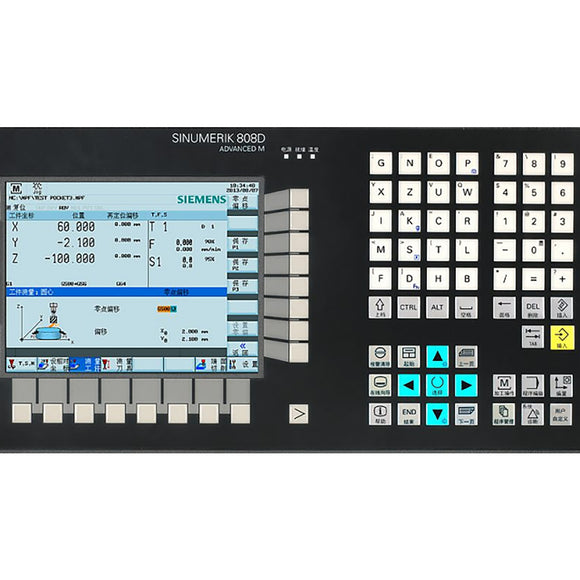

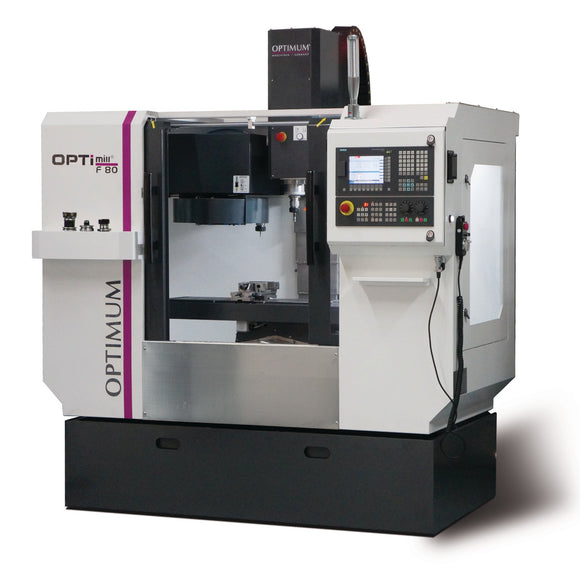

CNC milling machine OPTImill F 80 Sinumerik 808D Advanced

• Coolant pump(s) drive power 650 W
• Cooling lubricant system tank capacity 70 l
• Explanation vertical spindle speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation.
• Fast motion speed X axis 10000 mm/min
• Fast motion speed Y axis 10000 mm/min
• Fast motion speed Z axis 10000 mm/min
• Feed motor torque X axis continuous operation S1 3,5 Nm
• Feed motor torque Y axis continuous operation S1 6 Nm
• Feed motor torque Z axis continuous operation S1 6 Nm
• Frequency 50 Hz
• Height 2070 mm
• Horizontal milling table length 800 mm
• Horizontal milling table max. load bearing capacity 150 kg
• Horizontal milling table width 260 mm
• Length 1925 mm
• Max. size milling head 70 mm
• Max. size shaft milling cutter 25 mm
• Max. tool diameter 60 mm
• Max. tool length 200 mm
• Max. tool weight 6 kg
• Net weight 1900 kg

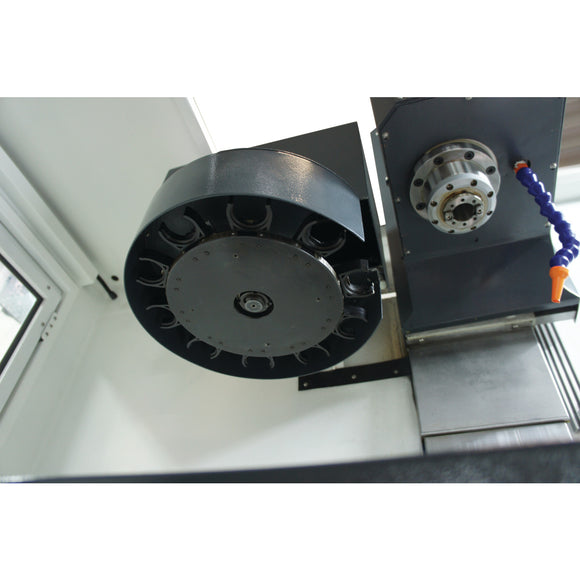

• Number of tool slots 10 Tools
• Pneumatic connection operating pressure 7 bar
• Positioning accuracy ± 0.008 mm
• Repetition accuracy ± 0.008 mm
• Supply voltage 400 V
• Tool change time chip to chip (C to C) 15.33 s
• Total rated value 14 kVA
• Travel X axis automatic 400 mm
• Travel Y axis automatic 225 mm
• Travel Z axis automatic 375 mm
• Vertical spindle drive motor output continuous operation S1 3,7 kW
• Vertical spindle speed range 50 - 10000 min¯¹

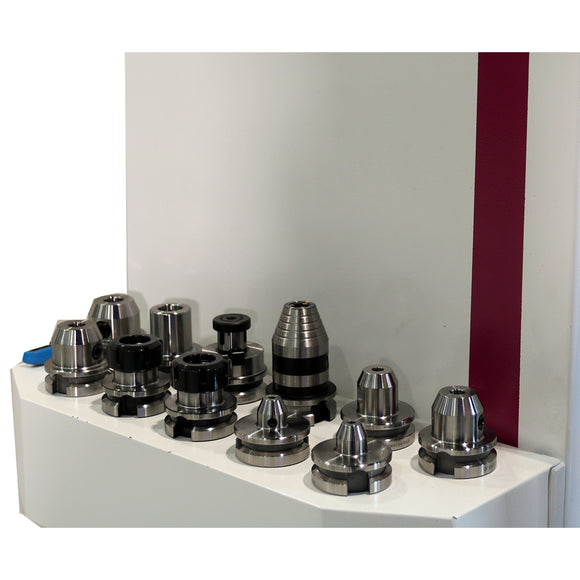

• Vertical spindle spindle chuck BT 30
• Vertical spindle torque drive motor continuous operation S1 24 Nm
• Width 1655 mm
