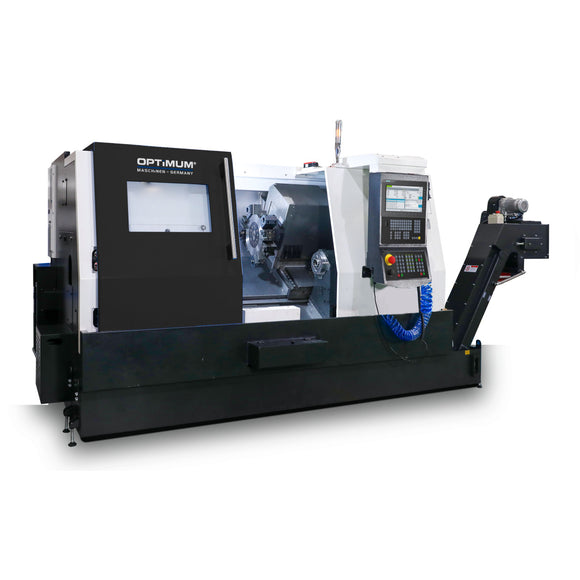

CNC lathe OPTIturn S 600 MSY

• 30 - 3500 min¯¹

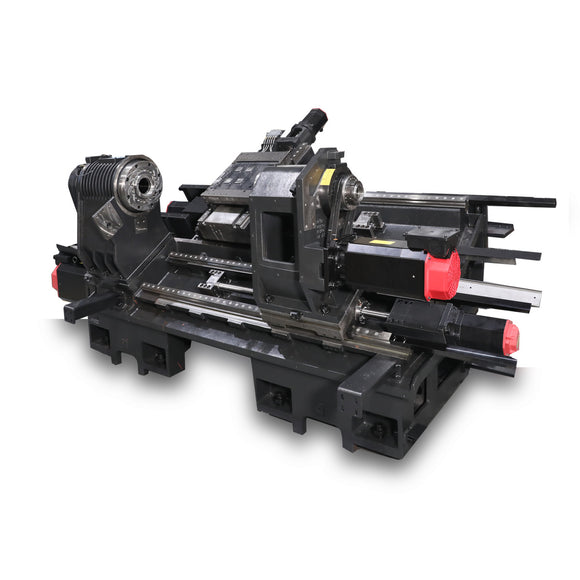

• Angled bed 30 °
• Chuck passage (option ex works) 51 mm
• Chuck passage diameter 74 mm
• Cooling lubricant system coolant pump output 0.7 kW
• Cooling lubricant system tank capacity 240 l
• Explanation Feed passage (option ex works) with Ø 200 mm chuck
• Explanation of feed passage (option 2 ex works) with Ø 300 mm chuck
• Explanation of feed passage (option 3 ex works) with Ø 300 mm chuck
• Feed force X-axis 8.4 kN
• Feed force Y-axis 18 kN
• Feed force Z-axis 6.7 kN
• Feed passage (option 2 ex works) 90 mm
• Feed passage (option 3 ex works) 105 mm
• Frequency 50 Hz
• Height 1900 mm

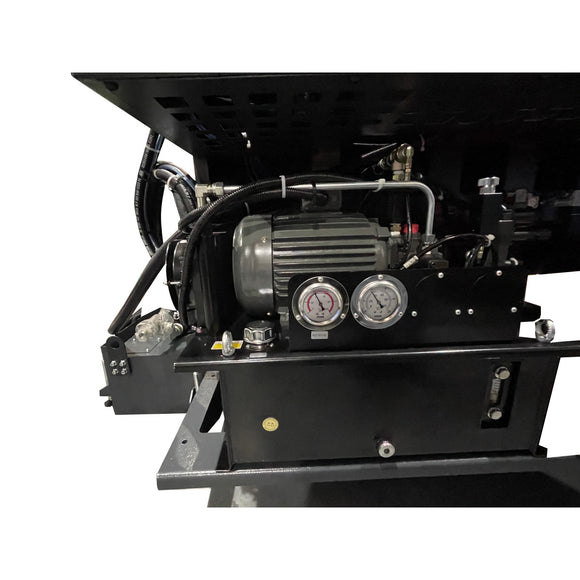

• Hydraulic system motor output 2.2 kW
• Hydraulic system tank capacity 36 l
• Lathe chuck diameter 300 mm
• Length 4490 mm
• Net weight 4500 kg
• Rapid traverse speed Z2 axis 30 m/min
• Spindle bore (option 2 ex works) 102 mm
• Spindle bore (option 3 ex works) 116 mm
• Spindle bore (option ex works) 62 mm
• Spindle bore 86 mm
• Spindle chuck DIN ISO 702-1 No. 6
• Spindle holder (option 2 ex works) A 2-8
• Spindle holder (option 3 ex works) A 2-8
• Spindle holder (optional ex works) A 2-6
• Spindle hydraulic lathe chuck 250 mm
• Spindle speed (option ex works) 30 - 4500 min¯¹
• Spindle speeds (option 2 ex works) 30 - 3000 min¯¹
• Spindle speeds (option 3 ex works) 30 - 2500 min¯¹
• Sub spindle chuck passage 44 mm
• Sub spindle hydraulic lathe chuck 150 mm
• Sub spindle output drive motor continuous operation S1 5.5 kW
• Sub spindle spindle taper DIN ISO 702-1 No. 5
• Sub spindle torque drive motor 43 Nm
• Supply voltage 400 V
• Swing diameter above machine bed 660 mm
• Swing diameter above planing slide 480 mm

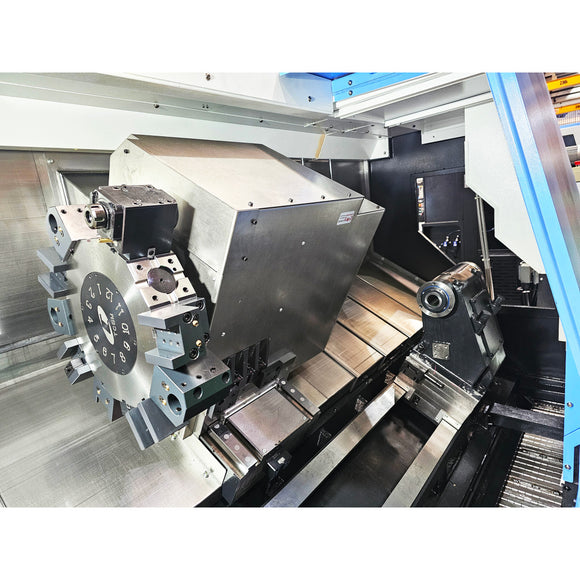

• Tool changer drive motor output 4.8 kW
• Tool changer max. permissible speed at tool coupling 4000 min¯¹
• Tool changer max. tool torque 20 Nm
• Tool changer number of tool slots 12
• Tool changer type BMT55
• Total rated value 45 kVA
• Travel X axis 220 mm
• Travel Y axis 50 mm
• Travel Z axis 700 mm
• Travel Z2 axis 600 mm
• Turning length 600 mm
• Vertical spindle drive motor output continuous operation S1 15 kW
• Vertical spindle drive motor torque 268 Nm
• Width 1880 mm
• X axis motor torque 11 Nm
• Y axis motor torque 12 Nm
• Z axis motor torque 11 Nm

• Axial tool holder driven tools
• 2 radial tool holders for driven tools
• 3 drilling tool holders
• 5 OD tool holders
• Face tool holder
• Round holder Ø 20 mm
• Round holder Ø 25 mm
• Round holder Ø 32 mm
