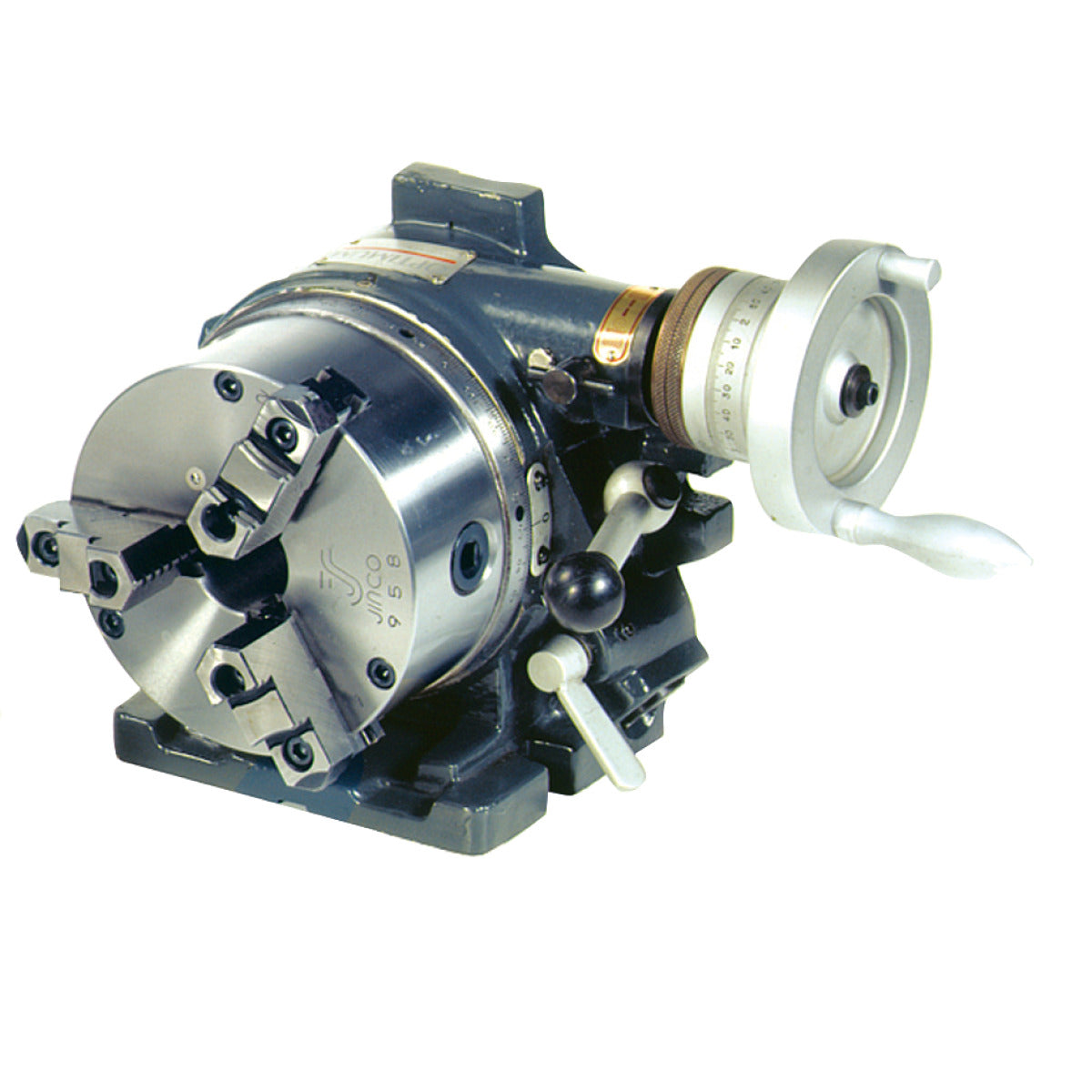

Horizontal-vertical rotary indexing table with 3-jaw chuck RTU 165

DESCRIPTION
  • Precision cone roller bearings
  • Stability even under high stress
  • 24 positions (15° pitch)
  • Large spindle bore, for clamping longer workpieces
  • Three-jaw lining
  • Direct parts via latboards for higher production speed for mass parts
  • Including clamping disc with 3 grooves
RTU 165
  • 24 divisions with direct part disc and angular degree parts over 360 degree angle scale - no groove, three-jaw lining mounted, with optional indirect partial disc swiel divisions in high number possible
  • Degree parts over 360° scale with crank and nonius

Technical Data

Clamping surface diameter 165mm
Closed height 221mm
Max. height 130mm
Passageway 36mm
Direct indexing disc division 24
Indirect indexing disc division 2, 3, 4, 6, 8, 12
Indexing precision of direct indexer 45"
Clamping options Horizontal and vertical
Dimensions and weights
Length (product) approx. 235mm
Width/depth (product) approx. 250mm
Net weight approx. 48kg
DELIVERY CONTENTS
  • 3-jaw chuck (mounted)
  • Clamping disc 203 mm with 3 grooves
  •  Main indexing disk (24x division, mounted)
  • 6 Indexing disks
  • Grips for handwheel
