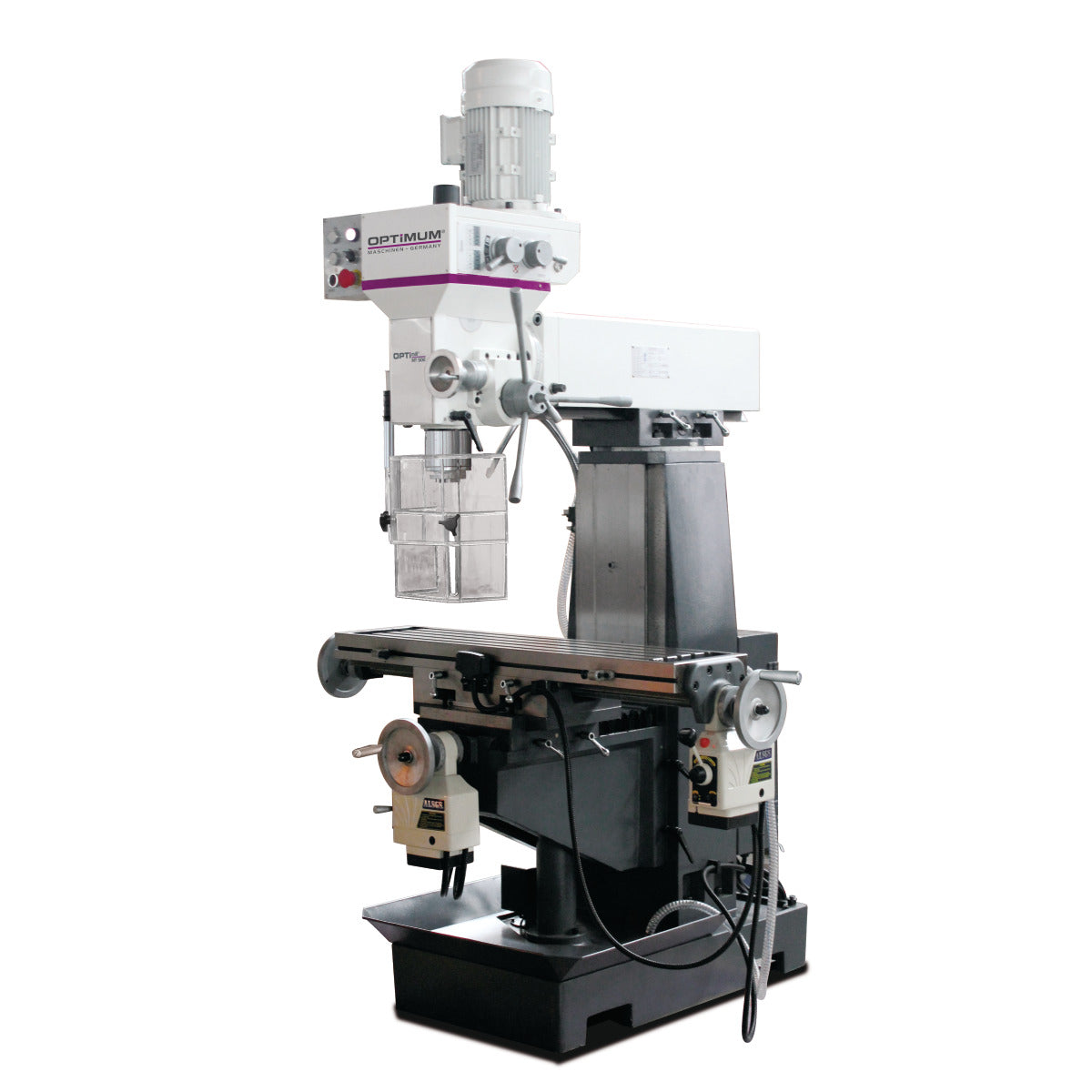

Universal Drill Mill - OPTImill MT 50 E [400v]

Available in stock

Price: €9.581,70 incl. Vat ( €7.790,00 excl. Vat )
3336010
Quantity
- +

DESCRIPTION

Universal boring milling machine with automatic table feed in the X and Y axis

Vibration-absorbing cast execution

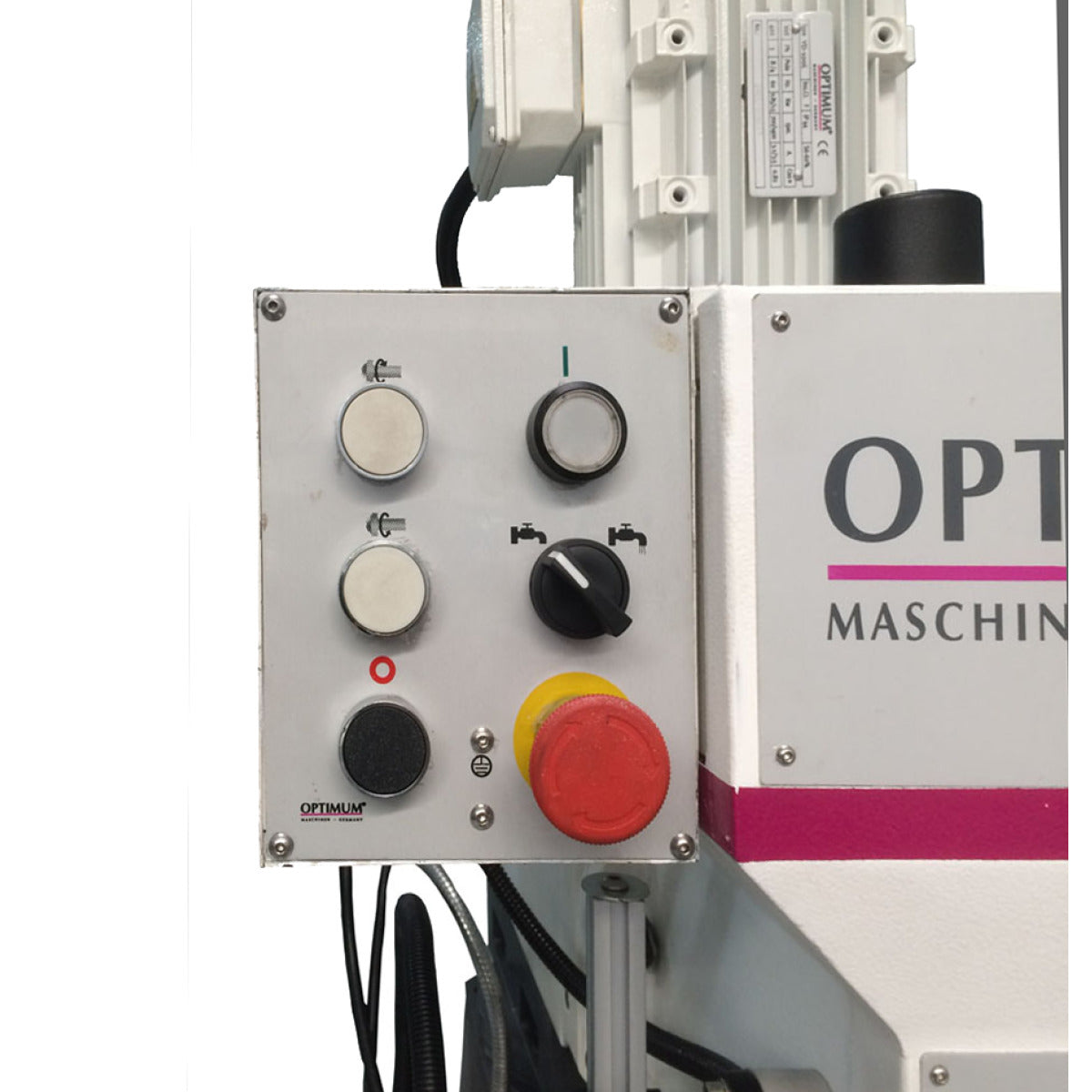

Easy-to-use control panel
LED lamp

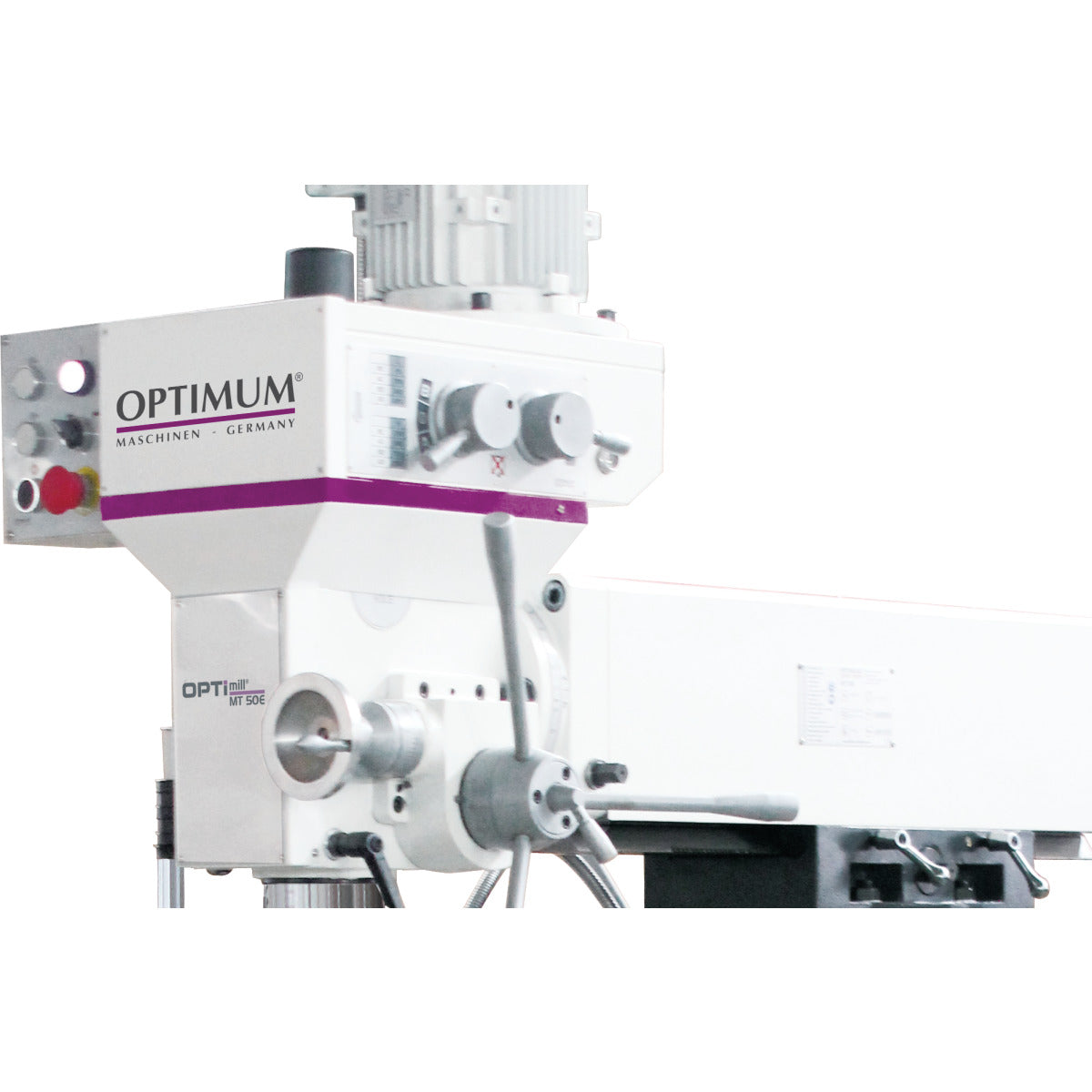

Milling head can be swiveled 45 ° to the left and right
Automatic feed of the X and Y axes with speed adjustment
Automatic and adjustable limit stop of the X-axis
Mechanical Spindle sleeve for drilling over quill lever
Oil bath gearbox with ground, hardened gear wheels
Forward / reverse operation
Coupling for switching from Read More

DESCRIPTION

Universal boring milling machine with automatic table feed in the X and Y axis

Vibration-absorbing cast execution
Easy-to-use control panel
LED lamp
Milling head can be swiveled 45 ° to the left and right
Automatic feed of the X and Y axes with speed adjustment
Automatic and adjustable limit stop of the X-axis
Mechanical Spindle sleeve for drilling over quill lever
Oil bath gearbox with ground, hardened gear wheels
Forward / reverse operation
Coupling for switching from manual coarse feed to manual fine feed
Large projection of the Y-axis spindle head carrier from 250 - 650 mm
Exact cross table, large dimensioned and precisely surface-finished with adjustable wedges
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user

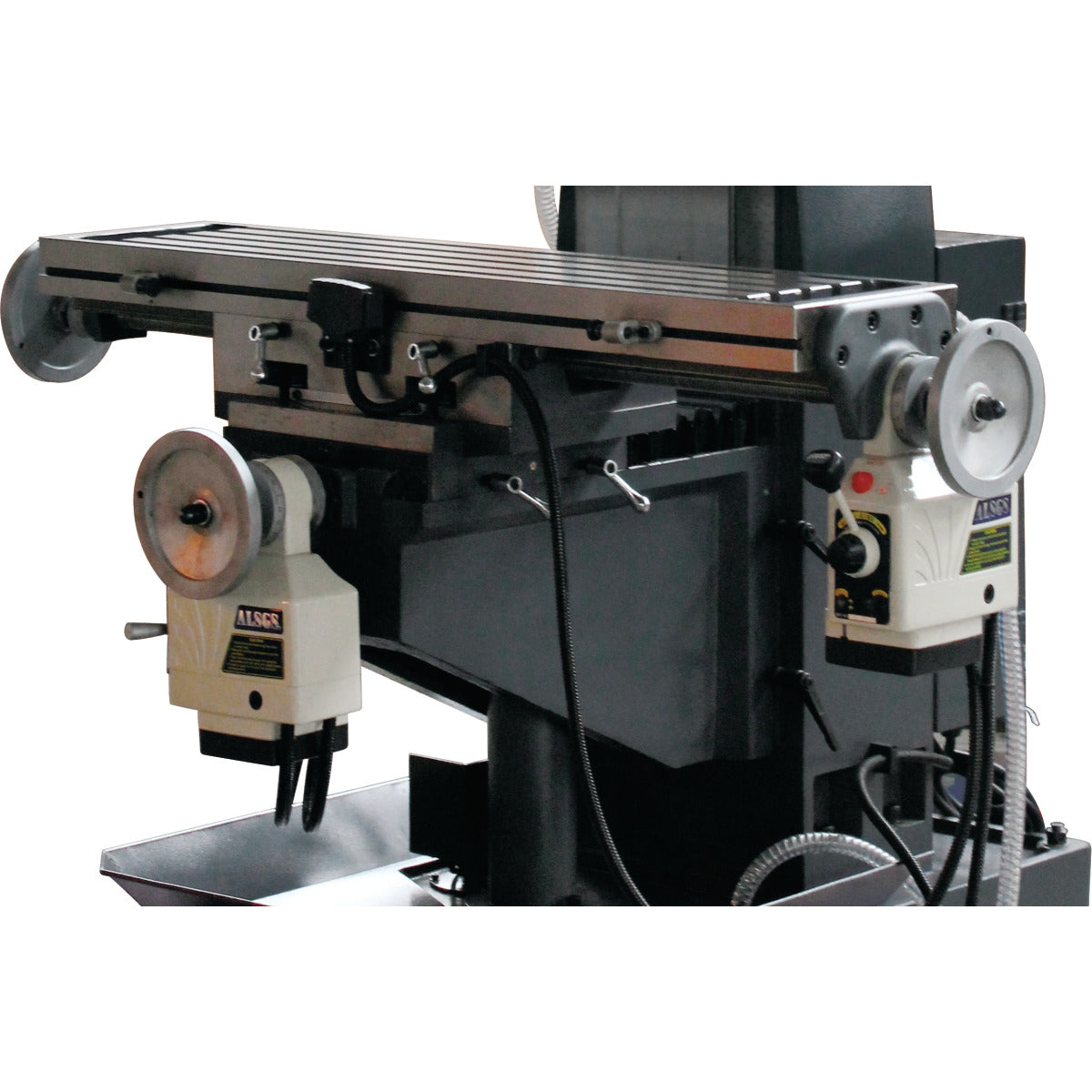

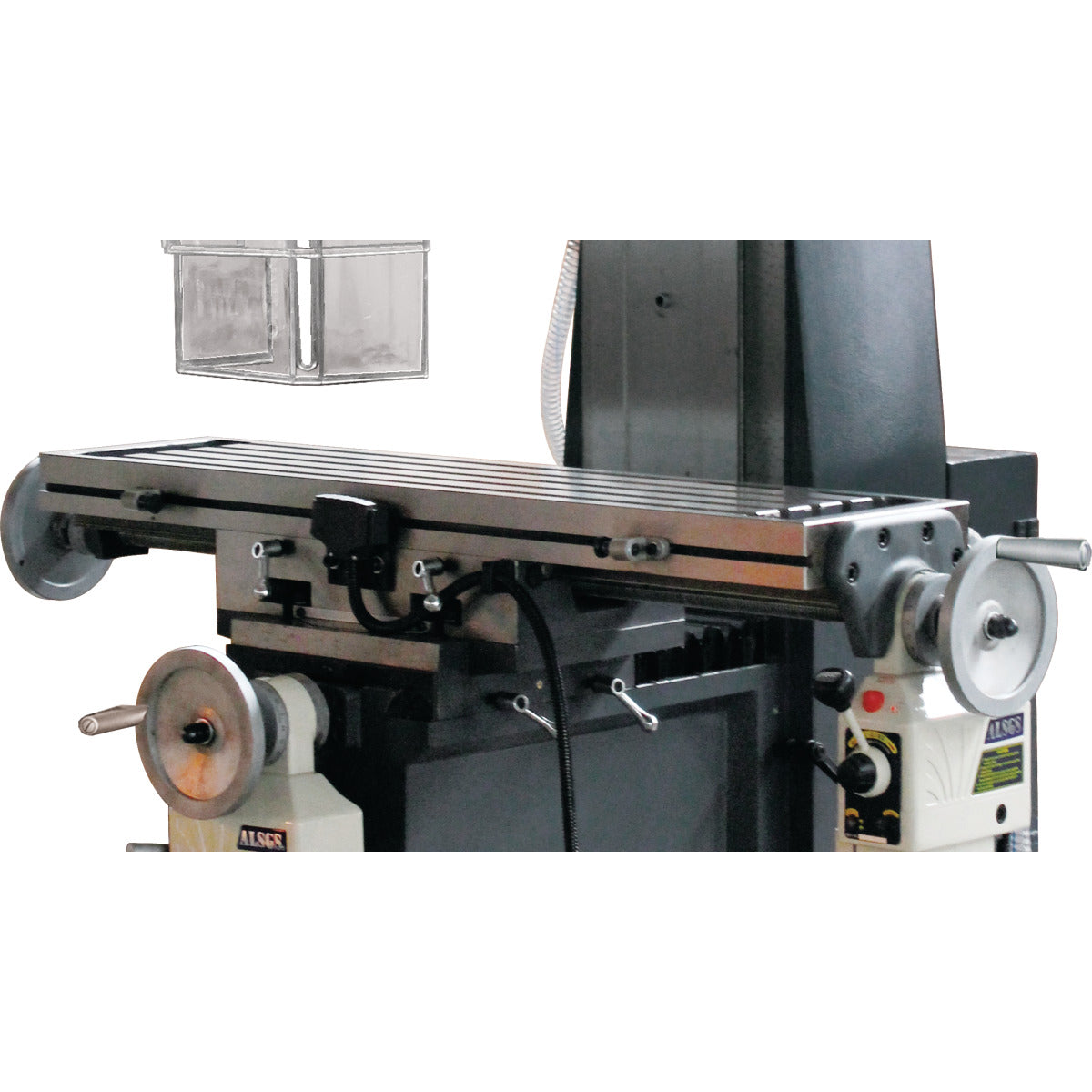

Massive and large-dimensioned XY stage with dovetail guides, precisely surface-finished with T-slots and adjustable wedges, swiveling ± 45 °
Coolant system


DELIVERY CONTENTS
 Geared chuck 3 - 16 mm / B 18
 Mandrel Drill chuck ISO40 / B18
 T-nuts
 Expeller
 Adapter ISO40- MK 3 / MK 3-MK 2
 Coolant pump
 Operating tool

Read more

Technical Data

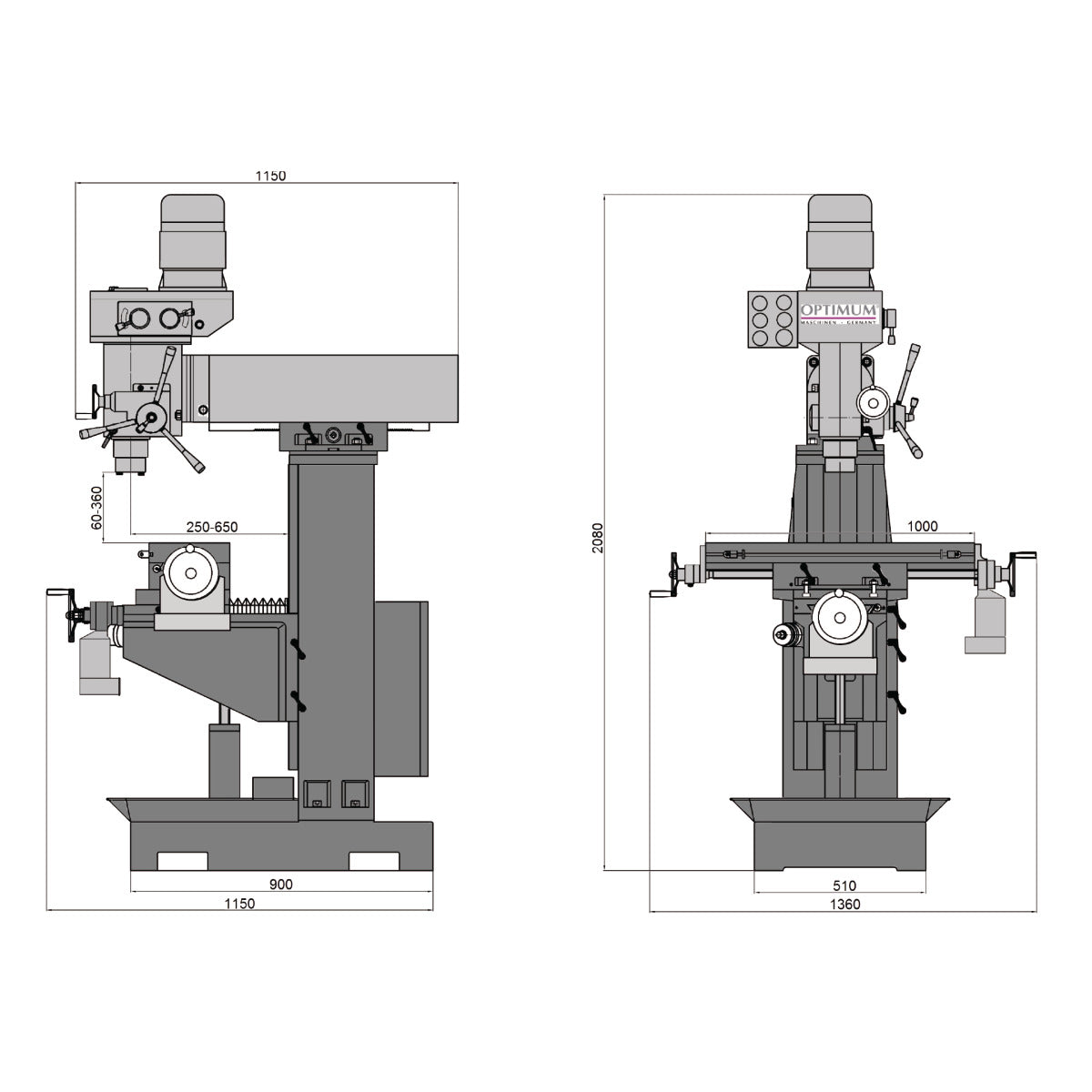

Dimensions and weights

  • Length (product) approx. - 1360mm
  • Width/depth (product) approx. - 1150mm
  • Height (product) approx. - 2080mm
  • Net weight approx. - 760kg

Drilling/milling head

  • Drill-mill head tilt range - ± 45°

Drilling/milling output

  • Max. size milling head - 63mm
  • Max. size shaft milling cutter - 25mm
  • Drilling performance steel (S235JR) - 30mm
  • Continuous drilling performance steel (S235JR) - 25mm

Electrical Data

  • Drive motor output - 0.75 / 1.5kW
  • Supply voltage - 400V
  • Mains frequency - 50Hz

Milling table horizontal

  • Horizontal milling table length - 1000mm
  • Horizontal milling table width - 240mm
  • Min. clearance vertical spindle - horizontal milling table -
    60mm
  • Max. clearance vertical spindle - horizontal milling table -
    360mm
  • Horizontal milling table T-groove size - 14mm
  • Horizontal milling table T-groove number - 4
  • Horizontal milling table rotation - ± 45°
  • Horizontal milling table max. load bearing capacity - 150kg

Cooling lubricant system

  • Coolant pump(s) drive power - 40W

Travel

  • Travel X axis manual - 580mm
  • Travel Y axis manual - 230mm
  • Travel Z axis manual - 320mm
  • Travel X axis automatic - 500mm
  • Travel Y axis automatic - 150mm

Vertical spindle

  • Vertical spindle reach - 250 – 650mm
  • Vertical spindle spindle chuck - SK 40 DIN 2080
  • Vertical spindle speed range - 115 – 1750min¯¹
  • Vertical spindle number of gears - 8
  • Vertical spindle tightening bar - M16
  • Vertical spindle quill stroke - 120mm
  • Vertical spindle drive motor output normal operation - 0.85
    / 1.5kW
